992031 (PM 250Z) - Gravely Pro-Master 50" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 000101 - 029999) Motors And Wheels Parts Diagram

Pro-Master 50" Zero-Turn Mower, 20hp Briggs & Stratton

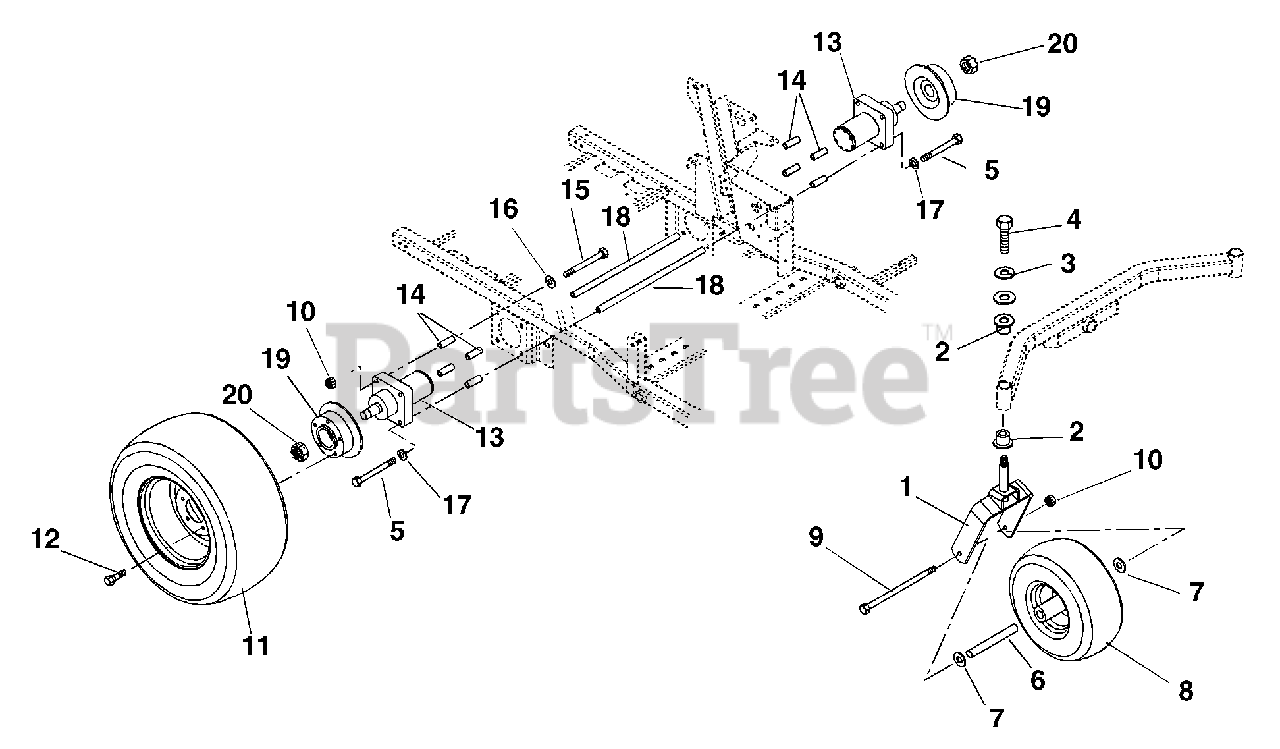

Motors And Wheels Parts Diagram

  • Title

1

Gravely 09214153

WMT, FRONT FORK - RED

$

$

Not available

2

Gravely 018355

BSHG-FLG1.020X1.385X.75X1.75NY
(Superseded to 05520100)

$11.99

$

In Stock, Qty 20+

0

3

Gravely 06443400

WSHR-FL-STL .380X1.50X.125YWZC
(Superseded to 06401106)

$3.99

$

In Stock, Qty 20+

0

4

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 09231800

SPACER - WHEEL

$50.99

$

Usually ships in 4-12 days

0

7

Gravely 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$6.49

$

In Stock, Qty 20+

0

8

Gravely 07147800

WHEEL/TIRE ASM
(Superseded to 59219000)

$197.99

$

In Stock, only 4 left!

0

Gravely 07147100

TIRE, 15X6-6
(Superseded to 07100905)

$76.99

$

In Stock, only 2 left!

0

9

Gravely 05961200

BLT-HEX .50-13X9.00 GR5 YWZC
(Superseded to 05901930)

$11.99

$

In Stock, Qty 20+

0

10

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

11

Gravely 07150700

WHL/TIRE 23X8.50-12 MULTITRAC

$

$

Not available

Gravely 07150800

TIRE 23X8.50-12 MULTITRAC C/S

$

$

Not available

12

Gravely 034597

BLT-LUG .50-20X1.38 YWZC
(Superseded to 07000143)

$3.99

$

In Stock, Qty 20+

0

13

Gravely 09232300

HYDRAULIC WHEEL MOTOR

Note: (Includes 20)

$963.99

$

Usually ships in 4-12 days

0

14

Gravely 05531400

BSHG-SLV .513X.748X2.129

$14.99

$

Usually ships in 4-12 days

0

15

Gravely 05975400

BLT-HEX .50-13X5.00 GR8 YWZC

$6.49

$

In Stock, Qty 10

0

16

Gravely 050351

BSHG, SPCR.500X.750X.321 PM
(Superseded to 00211100)

$3.99

$

In Stock, Qty 20+

0

17

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 09236200

ROD-MOTOR CONNECTING

$96.99

$

Usually ships in 4-12 days

0

19

Gravely 09247100

HUB & DISK (PARK) 8" 1/2 HOLE

$303.99

$

Usually ships in 4-12 days

0

20

Gravely 06541900

NUT-LK-JAM-PTCH 1.00-20

Note: (Included with 13)

$33.99

$

Usually ships in 4-12 days

0
