992031 (PM 250Z) - Gravely Pro-Master 50" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 000101 - 029999) Seat, Frame, And Bumper Parts Diagram

Pro-Master 50" Zero-Turn Mower, 20hp Briggs & Stratton

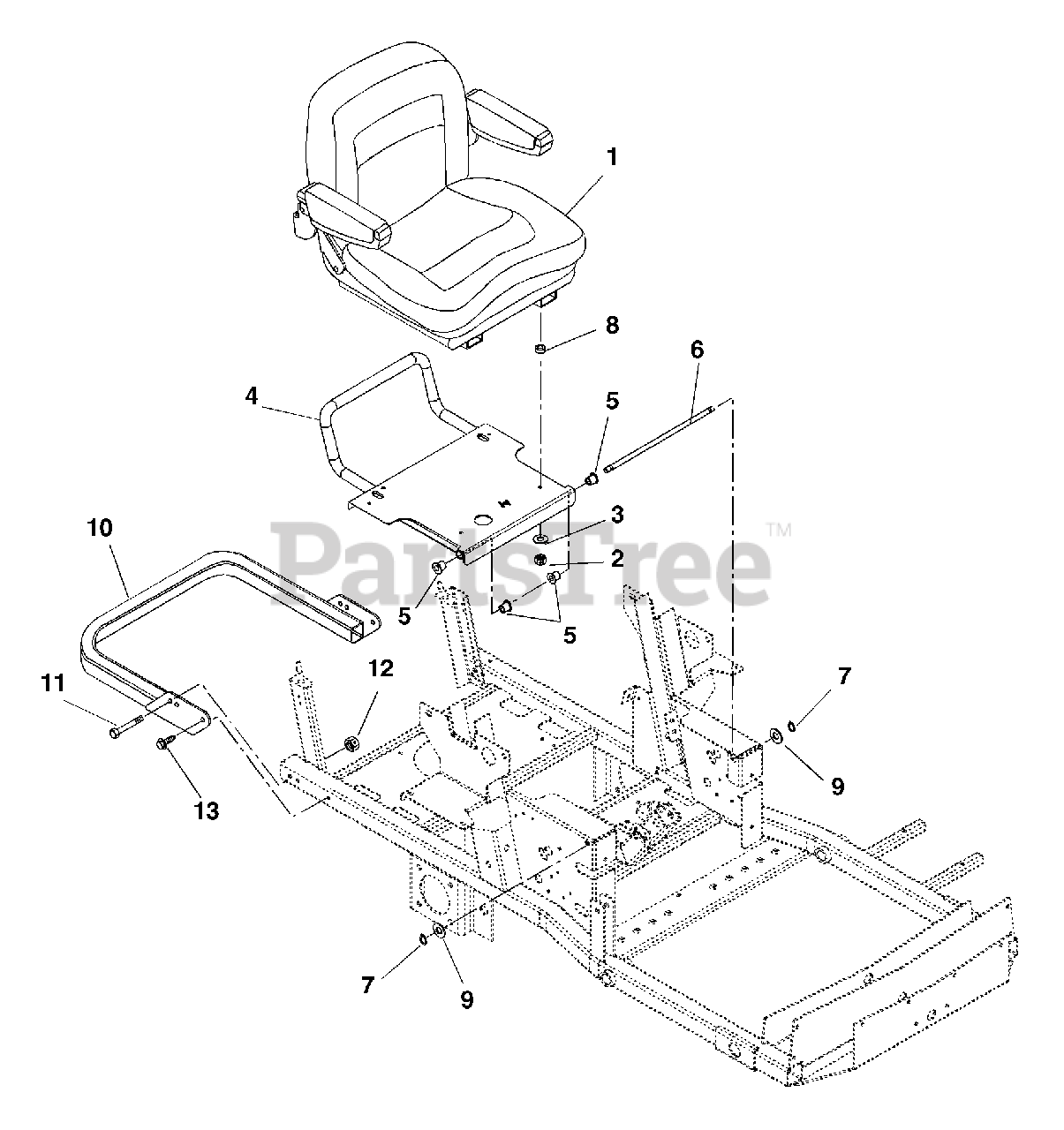

Seat, Frame, And Bumper Parts Diagram

  • Title

1

Gravely 09214500

SEAT, MILSCO XB180 - ZOOM
(Superseded to 03829400)

$448.99

$

Usually ships in 4-12 days

0

2

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

3

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 09210453

WMT, SEAT FRAME - RED
(Superseded to 09259851)

$

$

Not available

5

Gravely 034738

BSHG-FLG .515X.750X.745X1.00NY
(Superseded to 05521100)

$2.99

$

In Stock, Qty 20+

0

6

Gravely 09245400

ROD - SEAT FRAME PIVOT

$131.99

$

Usually ships in 4-12 days

0

7

Gravely 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$2.99

$

In Stock, Qty 15

0

8

Gravely 039145

BSHG-SLV .377X.624X.235
(Superseded to 05508900)

$9.99

$

In Stock, only 2 left!

0

9

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 09249953

BUMPER, REAR - RED

$

$

Not available

11

Gravely 05961400

BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$4.99

$

In Stock, Qty 20+

0

12

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0
