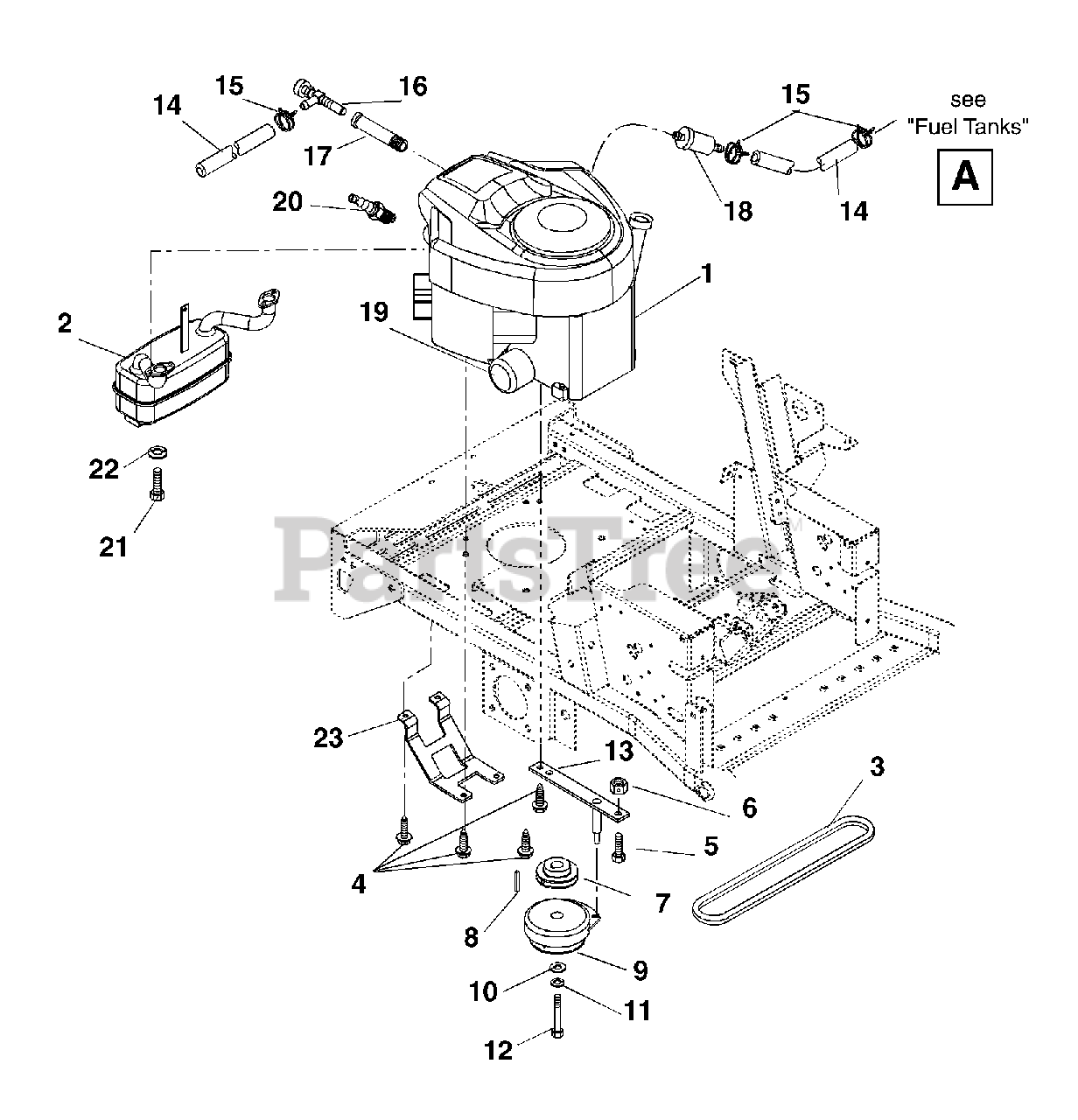

992031 (PM 250Z) - Gravely Pro-Master 50" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 030000 & Above) Engine And Clutch Parts Diagram

Pro-Master 50" Zero-Turn Mower, 20hp Briggs & Stratton

Engine And Clutch Parts Diagram

  • Title

1

Gravely 08262500

ENGINE, 20HP B&S INTEK 6-PIN

$

$

Not available

2

Gravely 01557000

MUFFLER ASSEMBLY

$171.99

$

In Stock, only 2 left!

0

3

Gravely 07239200

V-BELT, A-RAW EDGE

$44.99

$

In Stock, only 3 left!

0

4

Gravely 07414700

SCR-TAP .38-16X1.25 HWH TR YZ
(Superseded to 07400128)

$3.49

$

In Stock, Qty 17

0

5

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 9

0

6

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 09113600

SHEAVE

$118.99

$

Usually ships in 4-12 days

0

8

Gravely 06602200

KEY-SQ .25X1.0X.25 SAE 8630

$3.99

$

In Stock, Qty 12

0

9

Gravely 03357900

CLUTCH, ELECTRIC - WARNER

$501.99

$

Usually ships in 4-12 days

0

10

Gravely 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$6.49

$

In Stock, Qty 20+

0

11

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

12

Gravely 05965700

BLT-HEX .44-20X3.00 GR5 YWZC
(Superseded to 05900037)

$7.49

$

In Stock, Qty 13

0

13

Gravely 04907200

ANCHOR-CLUTCH

$75.99

$

In Stock, only 3 left!

0

14

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06939100

CLAMP-HOSE WIRE .490/.510X.116

$3.99

$

In Stock, Qty 20+

0

16

Gravely 035329

DRAIN, 1/2" OIL
(Superseded to 00429000)

$40.99

$

In Stock, only 3 left!

0

17

Gravely 035328

ADAPTER, OIL DRAIN
(Superseded to 03493100)

$6.49

$

Usually ships in 4-12 days

0

18

Gravely 21531800

FILTER, FUEL
(Superseded to 00682500)

$15.99

$

Usually ships in 4-12 days

0

19

Gravely 21530700

FILTER, OIL 20HP B&S VANGUARD
(Superseded to 21556900)

$12.99

$

In Stock, Qty 20+

0

20

Gravely 21534100

PLUG, SPARK

$7.49

$

In Stock, Qty 20+

0

21

Gravely 051666

SCR-SKH M8 X 1.25X20
(Superseded to 05931800)

$2.99

$

Usually ships in 4-12 days

0

22

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 09258400

GUARD, MUFFLER

$

$

Not available
