992031 (PM 250Z) - Gravely Pro-Master 50" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 030000 & Above) Mounting Arms, Brackets And Belt Guards Parts Diagram

Pro-Master 50" Zero-Turn Mower, 20hp Briggs & Stratton

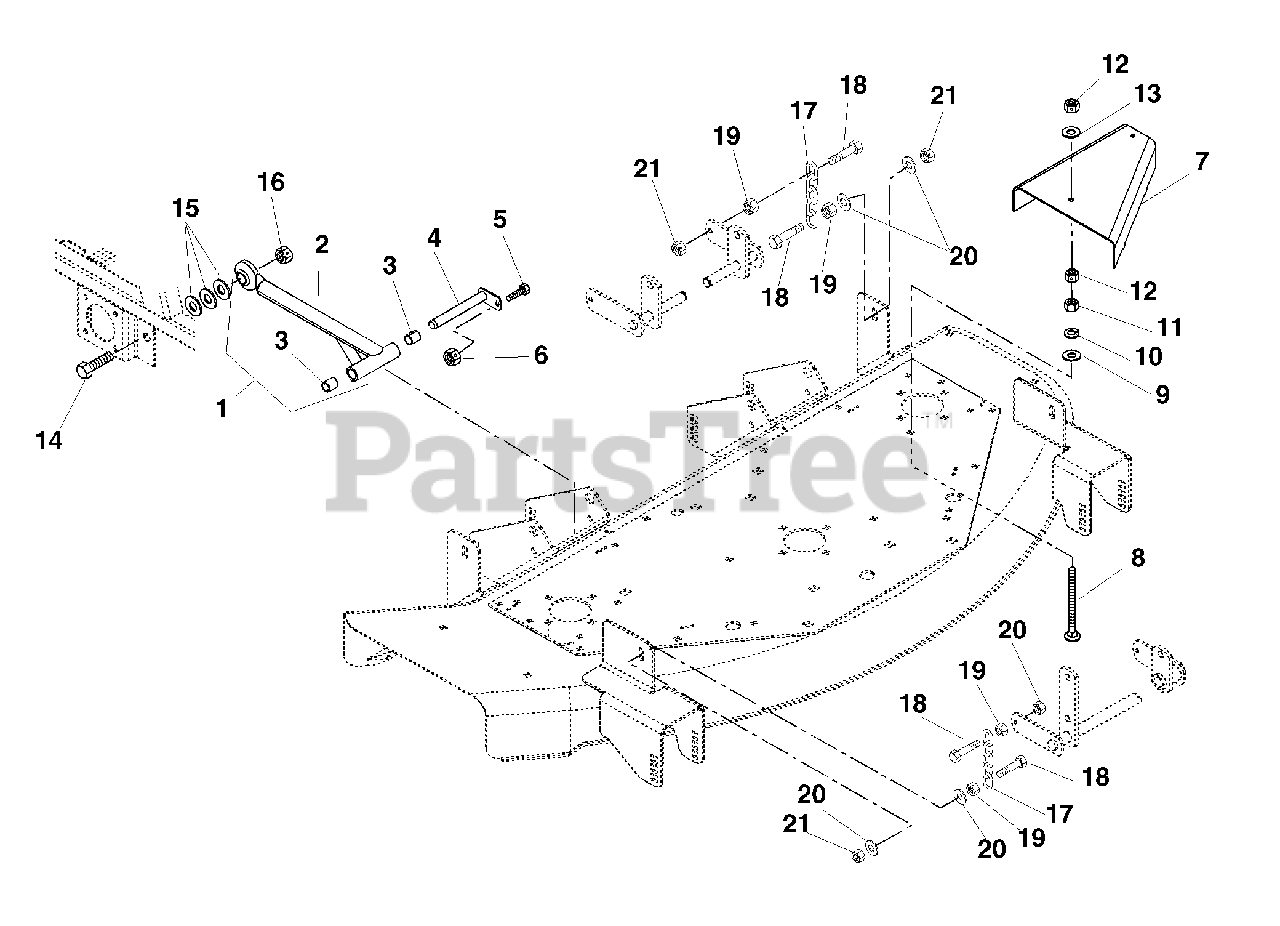

Mounting Arms, Brackets And Belt Guards Parts Diagram

  • Title

1

Gravely 09247800

ASSEMBLY, MOWER MOUNTING ARM

Note: (Contains Items 2, 3)

$288.99

$

Usually ships in 4-12 days

0

2

Gravely 09247900

WELDMENT, MOWER MOUNTING ARM
(Superseded to 09247951)

$272.99

$

Usually ships in 4-12 days

0

3

Gravely 05433400

BRG .75X.875X1.00
(Superseded to 05435900)

$7.49

$

In Stock, Qty 20+

0

4

Gravely 09238900

WELDMENT, MOWER MTG. PIN

$66.99

$

In Stock, Qty 8

0

5

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$2.49

$

In Stock, Qty 11

0

6

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 09246353

GUARD, PULLEY RH

$72.99

$

In Stock, only 1 left!

0

Gravely 09246253

GUARD, PULLEY LH

$55.99

$

In Stock, only 2 left!

0

8

Gravely 06221300

BLT-RDHDSQNK .31-18X3.50 G5YZ
(Superseded to 06200411)

$7.99

$

In Stock, only 2 left!

0

9

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.99

$

In Stock, Qty 7

0

12

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$2.49

$

In Stock, Qty 20+

0

13

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$2.99

$

In Stock, Qty 20+

0

14

Gravely 05969500

BLT-HEX .875-9X2.75 GR5 YWZC

$9.49

$

In Stock, Qty 11

0

15

Gravely 06444700

WSHR-FL-STL .890X1.500X.1196YZ
(Superseded to 06401207)

$5.49

$

In Stock, Qty 6

0

16

Gravely 06539700

NUT-LK-CTR .875-9 YWZC

$6.99

$

In Stock, only 2 left!

0

17

Gravely 09215300

CHAIN, LINK

$7.99

$

Usually ships in 4-12 days

0

18

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$2.99

$

In Stock, Qty 10

0

19

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+

0

21

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.99

$

In Stock, Qty 20+

0
