992032 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 26hp Kohler EFI (SN: 030000 - 030999) Belts, Idlers And Blades Parts Diagram

Pro-Master 72" Zero-Turn Mower, 26hp Kohler EFI

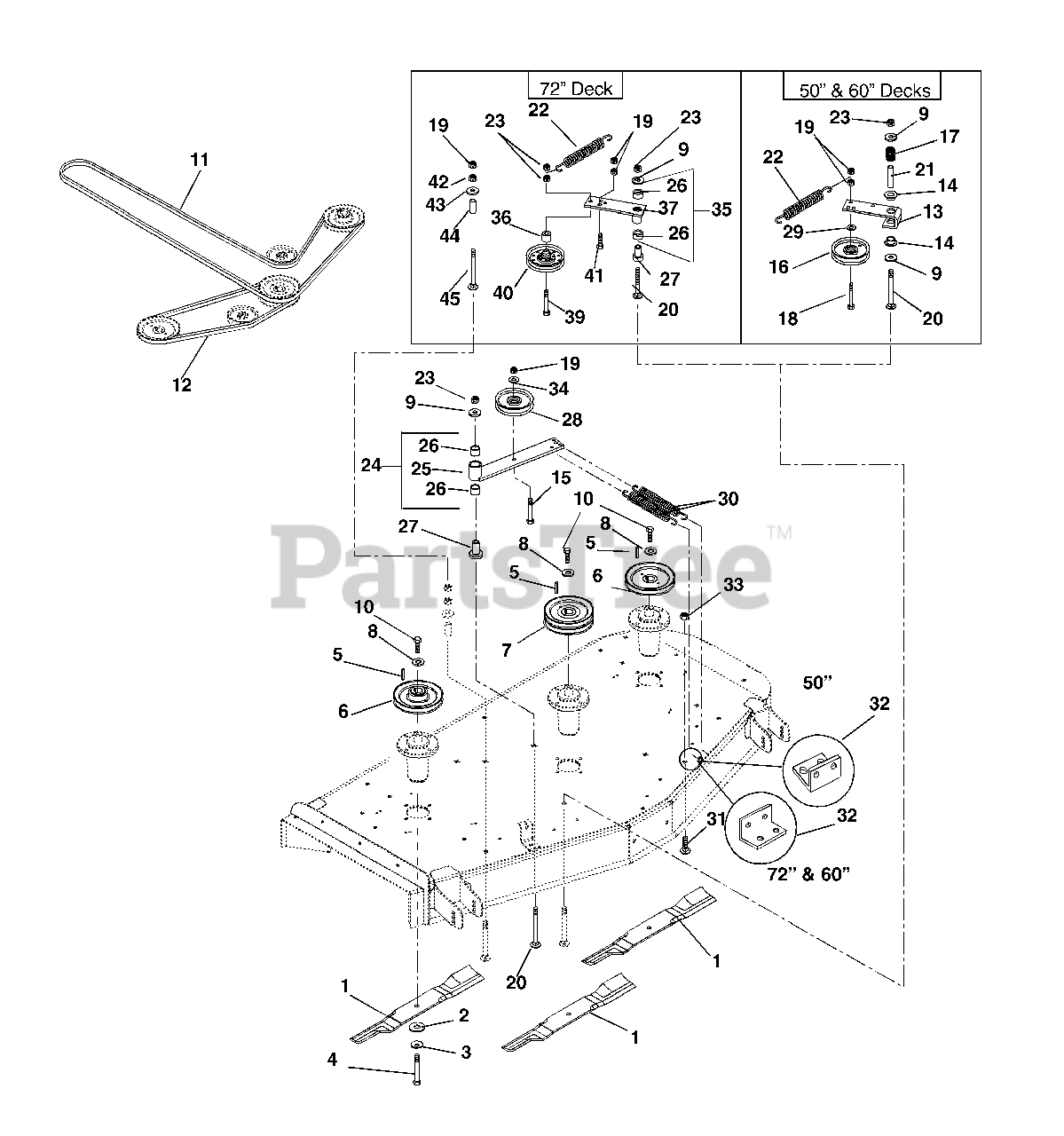

Belts, Idlers And Blades Parts Diagram

  • Title

1

Gravely 09097100

Blade, 72" Mower Tungsten Hi-Lift
(Superseded to 09290500)

$37.99

$

In Stock, Qty 16

0

1

Gravely 09246600

Blade, 60" Mower Tungsten Hi-Lift
(Superseded to 09081200)

$29.99

$

In Stock, Qty 20+

0

1

Gravely 09246700

Blade, 50" Mower Tungsten Hi-Lift
(Superseded to 09082400)

$30.99

$

In Stock, Qty 20+

0

1

Gravely 09252600

Blade, 50" Mower Sand Tungsten

Note: (Model 305 Only)

$

$

Not available

1

Gravely 08899200

Blade, 50" Mulching Tungsten
(Superseded to 08866800)

$33.99

$

In Stock, Qty 20+

0

1

Gravely 08899100

Blade, 60" Mulching Tungsten

$

$

Not available

1

Gravely 09254700

Blade, 72" Mulching Tungsten
(Superseded to 09290600)

$37.99

$

In Stock, Qty 20+

0

2

Gravely 06435200

Washer, Flat .640 x 1.81 x .250
(Superseded to 06400829)

$4.99

$

In Stock, Qty 20+

0

3

Gravely 06445700

Washer-Bellville .63 x 1.625 x .14

$5.49

$

In Stock, Qty 20+

0

4

Gravely 07053400

Bolt, Blade

$48.99

$

Usually ships in 4-12 days

0

5

Gravely 06602200

Key-Straight .25 x 1.00 x .25

$3.99

$

In Stock, Qty 17

0

6

Gravely 09253400

Weldment, Spindle Sheave 7.00 (72" Deck)

Note: (72" Deck)

$87.99

$

Usually ships in 4-12 days

0

6

Gravely 09238500

Weldment, Spindle Sheave 6.00 (60" Deck)

Note: (60" Deck)

$46.99

$

In Stock, Qty 9

0

6

Gravely 09242500

Weldment, Spindle Sheave 5.00 (50" Deck)
(Superseded to 07331067)

Note: (50" Deck)

$122.99

$

In Stock, Qty 7

0

7

Gravely 09253300

Weldment, Sheave (Double) 7.25 (72" Deck)
(Superseded to 59217800)

Note: (Double) 7.25 (72" Deck)

$166.99

$

In Stock, only 1 left!

0

7

Gravely 09253100

Weldment, Spindle Sheave (Double) 6.25 (60" Deck)

Note: (Double) 6.25 (60" Deck)

$87.99

$

In Stock, only 3 left!

0

7

Gravely 09253200

Weldment, Spindle Sheave (Double) 5.25 (50" Deck)

Note: (Double) 5.25 (50" Deck)

$64.99

$

In Stock, Qty 12

0

8

Gravely 00597000

Washer, Cupped, Serrated .375
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

9

Gravely 415543

Washer-Flat-Steel .531 x 1.25 x .100
(Superseded to 06441000)

$3.49

$

In Stock, only 3 left!

0

10

Gravely 05974500

Bolt-Hex .38-16 x 1.00 Grade 8
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

11

Gravely 07239400

V-Belt, B-RMA 69.81 x .625 (72" Deck)

Note: (72" Deck)

$109.99

$

Usually ships in 4-12 days

0

11

Gravely 07234600

V-Belt, B-RMA 63.40 x .625 (60" Deck)

Note: (60" Deck)

$127.99

$

In Stock, Qty 20+

0

11

Gravely 07239300

V-Belt, B-RMA 58.70 x .625 (50" Deck)

Note: (50" Deck)

$107.99

$

In Stock, Qty 5

0

12

Gravely 07237700

V-Belt, B-RMA 28.62 x .625 (72" Deck)

Note: (72" Deck)

$72.99

$

In Stock, only 3 left!

0

12

Gravely 07235000

V-Belt, B-RMA 23.94 x .625 (60" Deck)

Note: (60" Deck)

$53.99

$

In Stock, Qty 15

0

12

Gravely 07234900

V-Belt, B-RMA 18.13 x .625 (50" Deck)

Note: (50" Deck)

$52.99

$

In Stock, Qty 5

0

13

Gravely 034120

Arm,Idler Pivot
(Superseded to 08905900)

$84.99

$

Usually ships in 4-12 days

0

14

Gravely 010174

Bushing-Flange-Nylon .762 x 1.0 x .580 x 1.48
(Superseded to 05518400)

$5.49

$

In Stock, Qty 20+

0

15

Gravely 05961400

Bolt, Hex .38-16 x 3.00 Grade 5
(Superseded to 05901611)

$4.99

$

In Stock, Qty 20+

0

16

Gravely 07325200

Idler-V 4.00 x .377
(Superseded to 07327600)

$39.99

$

In Stock, Qty 20+

0

17

Gravely 020444

Spring-Compression .085 x .80 x 1.00
(Superseded to 08329100)

$14.99

$

In Stock, Qty 6

0

18

Gravely 05962900

Bolt-Hex .38-16 x 2.25 Grade 5
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

19

Gravely 06529600

Nut-Locking-Center .38-16 (50" & 60" Decks)
(Superseded to 06500825)

Note: (50" & 60" Decks)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06529600

Nut-Locking-Center .38-16 (72" Decks)
(Superseded to 06500825)

Note: (72" Decks)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06223000

Bolt-Round Head Square Neck .50-13 x 3.50
(Superseded to 06200317)

$6.49

$

In Stock, Qty 19

0

21

Gravely 034119

Spacer .560 x .750 x 2.437 Steel
(Superseded to 08820500)

$19.99

$

In Stock, Qty 6

0

22

Gravely 08334700

Spring, Extension
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0

23

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$4.99

$

In Stock, Qty 16

0

24

Gravely 09248400

Assembly, Idler Pivot Arm
(Superseded to 09286500)

Note: (Contains Items 25 & 26)

$167.99

$

In Stock, only 2 left!

0

25

Gravely 09248500

Weldment, Idler Pivot Arm
(Superseded to 09286451)

$174.99

$

Usually ships in 4-12 days

0

26

Gravely 05435800

Bearing, 1.00 x 1.12 x .75

$9.99

$

In Stock, Qty 20+

0

27

Gravely 07053100

Bearing, Pedistal Powdered Metal
(Superseded to 07000031)

$84.99

$

In Stock, Qty 6

0

28

Gravely 07326000

Idler-Flat 4.00 x .38 (2.00 W)
(Superseded to 07327800)

Note: (2.00 W)

$91.99

$

In Stock, Qty 20+

0

29

Gravely 014672

Bushing .406 x .750 x .188
(Superseded to 03488200)

$6.49

$

In Stock, Qty 5

0

30

Gravely 08335100

Spring, Extension
(Superseded to 08300513)

$35.99

$

In Stock, Qty 20+

0

31

Gravely 06223600

Bolt-Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.99

$

In Stock, only 3 left!

0

32

Gravely 09248353

Bracket, Spring

$41.99

$

In Stock, only 4 left!

0

33

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

34

Gravely 06425500

Washer-Flat-Steel .375 x 1.125 x .065
(Superseded to 06401139)

$2.99

$

In Stock, Qty 20+

0

35

Gravely 09219000

Assembly, Idler Arm-Ground Drive

Note: (Includes 26 & 37)

$102.99

$

In Stock, only 1 left!

0

36

Gravely 03233100

Spacer .51 x .75 x .62

$15.99

$

Usually ships in 4-12 days

0

37

Gravely 09217051

Weldment, Idler Arm Ground Drive
(Superseded to 09217000)

$114.99

$

Usually ships in 4-12 days

0

38

Gravely 06225000

Bolt-Round Head Square Neck .50-13 x 3.50 G5
(Superseded to 06200317)

$6.49

$

In Stock, Qty 19

0

39

Gravely 05966600

Bolt-Hex .50-13 x 2.50 Grade 5
(Superseded to 05901712)

$3.99

$

In Stock, only 3 left!

0

40

Gravely 022063

Idler-Flat-Pulley 6.75 x .510
(Superseded to 07316700)

$65.99

$

In Stock, only 3 left!

0

41

Gravely 05958000

Bolt-Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.99

$

In Stock, Qty 16

0

42

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

43

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

44

Gravely 09054100

Spacer .380 x .625 x 1.50

$

$

Not available

45

Gravely 06225400

Bolt-Round Head Square Neck .38-16 x 2.75 Grade 5
(Superseded to 06200316)

$4.99

$

In Stock, Qty 16

0
