992032 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 26hp Kohler EFI (SN: 030000 - 030999) Deck Lift And Motor To Pump Circuits Parts Diagram

Pro-Master 72" Zero-Turn Mower, 26hp Kohler EFI

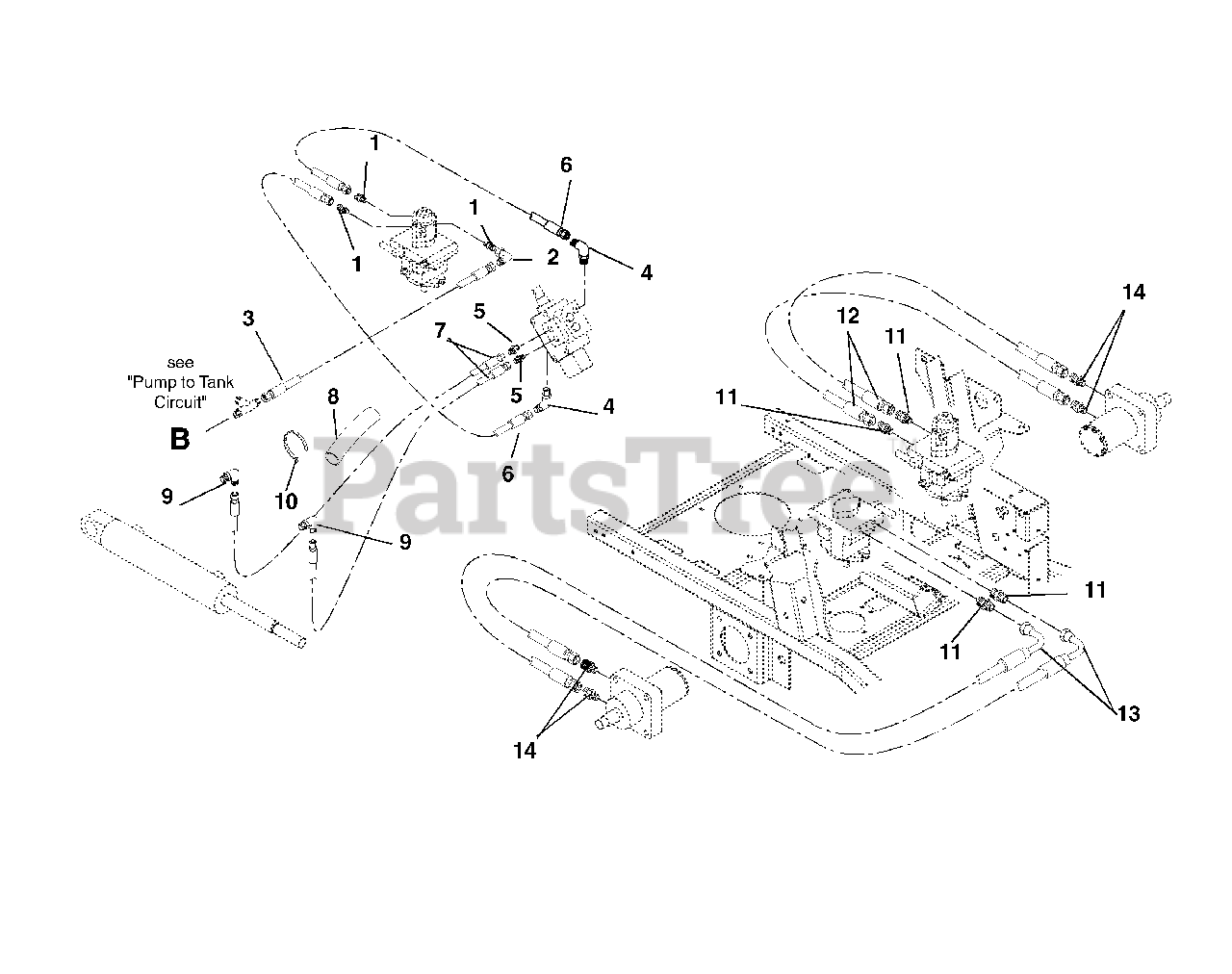

Deck Lift And Motor To Pump Circuits Parts Diagram

  • Title

1

Gravely 09234700

ADP 0503-4-6

$7.99

$

Usually ships in 4-12 days

0

2

Gravely 018818

ADPT 3903-6-6
(Superseded to 08901000)

$22.99

$

Usually ships in 4-12 days

0

3

Gravely 039847

HOSE,HYD VALVE TO TANK
(Superseded to 08811300)

$43.99

$

Usually ships in 4-12 days

0

4

Gravely 018828

FTG, 90 9/16 MOR X 9/16 MJIC
(Superseded to 00313270)

$10.99

$

Usually ships in 4-12 days

0

5

Gravely 021286

ADPT 0503-4-4
(Superseded to 08801500)

$6.99

$

Usually ships in 4-12 days

0

6

Gravely 09236000

HOSE HYDRAULIC 3/8 27.75 LONG

$146.99

$

Usually ships in 4-12 days

0

7

Gravely 09237300

HOSE-HYDRAULIC 1/4 40.5" LONG

$124.99

$

In Stock, only 2 left!

0

8

Gravely 09249400

SLEEVE, PROTECTIVE

$12.99

$

Usually ships in 4-12 days

0

9

Gravely 018826

ADPT 2503-4-4
(Superseded to 08800700)

$26.99

$

Usually ships in 4-12 days

0

10

Gravely 036313

CABLE TIE LG 5-1/2
(Superseded to 07517300)

$1.99

$

Usually ships in 4-12 days

0

11

Gravely 07020400

ADAPTER, HYD ST 3/4 "O" TO 3/4

$

$

Not available

12

Gravely 09232600

HOSE HYDRAULIC 1/2 19.75 LONG

$158.99

$

Usually ships in 4-12 days

0

13

Gravely 09248100

HOSE,HYDRAULIC 29.50 LONG

$179.99

$

Usually ships in 4-12 days

0

14

Gravely 07025800

ADAPTER, HYD ST 7/8 "O" TO 3/4

$14.99

$

In Stock, only 1 left!

0
