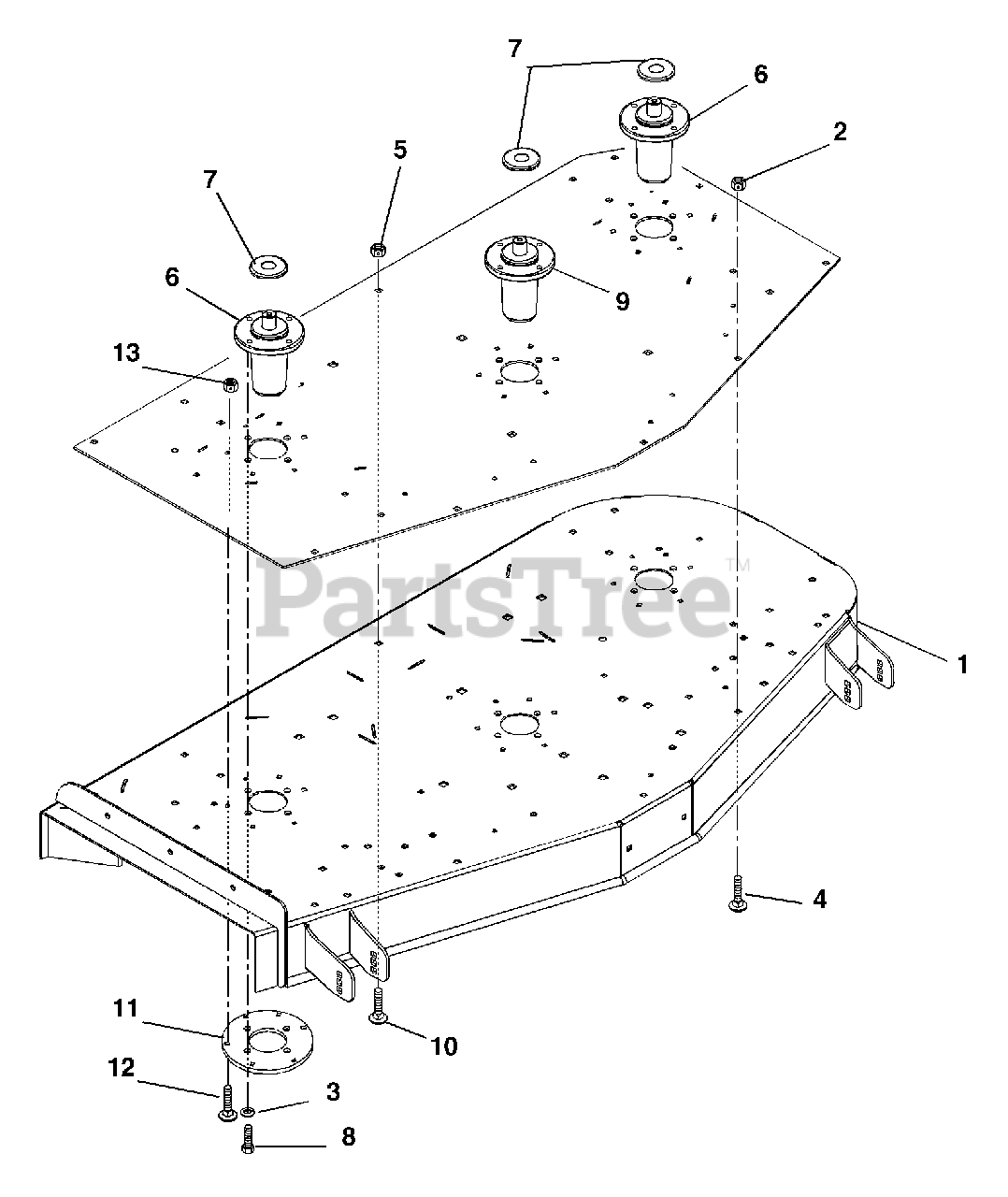

992032 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 26hp Kohler EFI (SN: 035000 & Above) 72" Deck And Spindles Parts Diagram

Pro-Master 72" Zero-Turn Mower, 26hp Kohler EFI

72" Deck And Spindles Parts Diagram

  • Title

1

Gravely 09256853

WLDMT, 72" DECK

Note: (Side Discharge)

$646.99

$

Usually ships in 4-12 days

0

2

Gravely 09097553

PLATE, REINFORCMENT

$

$

Not available

3

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06225400

BLT-RDHDSQNK .38-16X2.75 G5YZ
(Superseded to 06200316)

$4.99

$

In Stock, Qty 20+

0

5

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

6

Gravely 59201000

ASM,MAINT FREE SPINDLE
(Superseded to 59114000)

Note: (Contains Item 7)

$273.99

$

In Stock, Qty 14

0

7

Gravely 09238200

SLINGER, DUST

$17.99

$

In Stock, Qty 13

0

8

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 59202600

ASM,MAINT FREE SPINDLE
(Superseded to 59225700)

Note: (Contains Item 7)

$361.99

$

In Stock, Qty 20+

0

10

Gravely 06215500

BLT-RDHDSQNK .38-16X1.00 G2YZ
(Superseded to 06223600)

$2.99

$

In Stock, Qty 20+

0

11

Gravely 09096151

PLATE, SPINDLE REINFORCEMENT

Note: (035, 036)

$

$

Not available

12

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

13

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0
