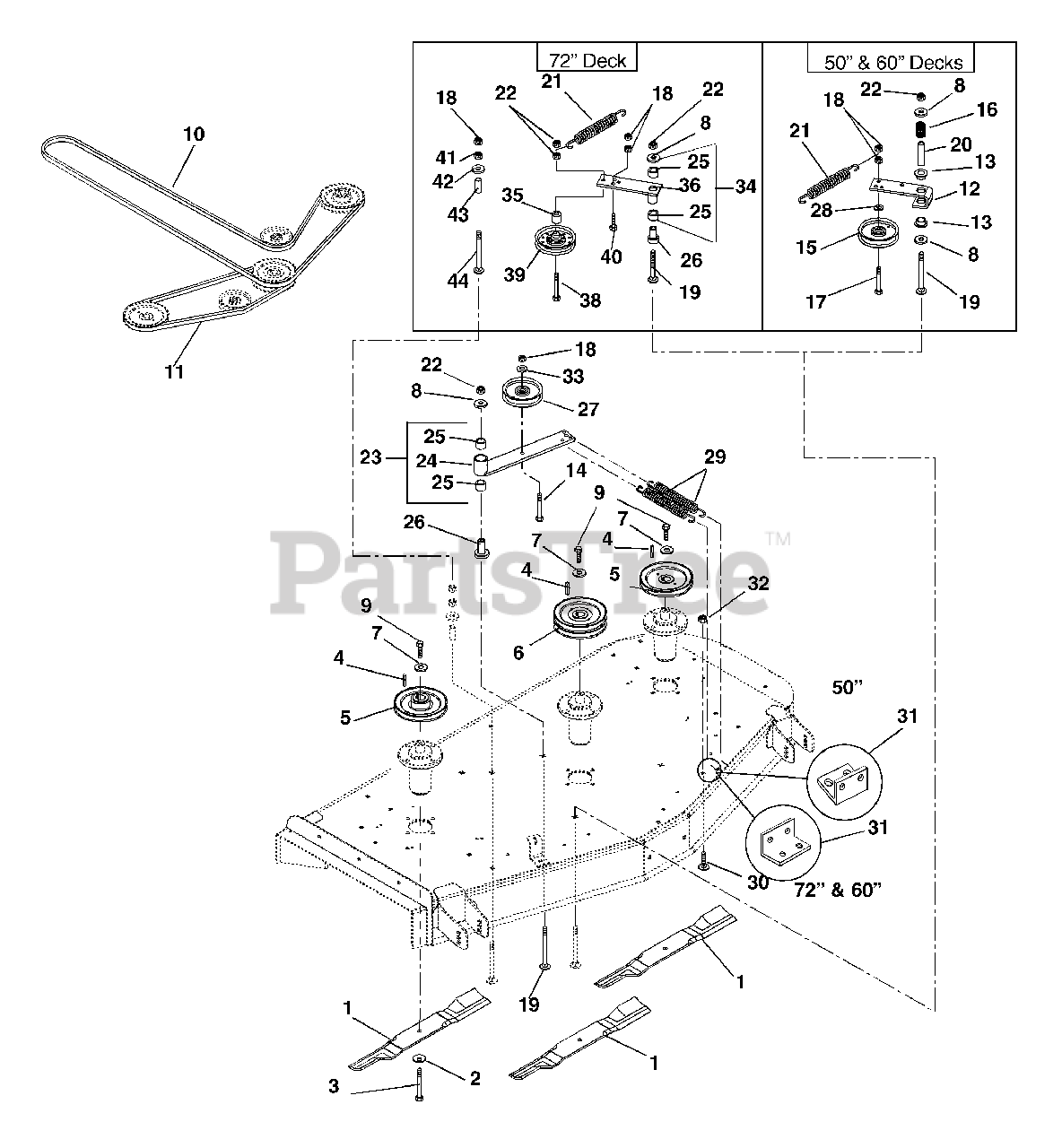

992032 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 26hp Kohler EFI (SN: 035000 & Above) Belts, Idlers And Blades Parts Diagram

Pro-Master 72" Zero-Turn Mower, 26hp Kohler EFI

Belts, Idlers And Blades Parts Diagram

  • Title

1

Gravely 09097100

BLADE, 72" TUNGSTEN
(Superseded to 09290500)

$37.99

$

In Stock, only 3 left!

0

Gravely 09246600

BLADE, TUNG HI-LIFT MOWER 60"
(Superseded to 09081200)

$29.99

$

In Stock, Qty 20+

0

Gravely 09246700

BLADE, MOWER 50" TUNG HI-LIFT
(Superseded to 09082400)

$30.99

$

In Stock, Qty 10

0

Gravely 09252600

BLADE, 50" MOWER SAND TUNGSTEN

Note: (305 Only)

$

$

Not available

Gravely 08899200

BLADE, MOWER 50" TUNG MULCH
(Superseded to 08866800)

$33.99

$

In Stock, Qty 13

0

Gravely 08899100

BLADE, TUNG MULCH MOWER 60"

$

$

Not available

Gravely 09254700

BLADE, 72" TUNGSTEN MULCH
(Superseded to 09290600)

$37.99

$

In Stock, Qty 18

0

2

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.49

$

In Stock, Qty 20+

0

3

Gravely 05978800

BLT-HEX .62-18X1.50 GR8 YWZC
(Superseded to 05901822)

$3.99

$

In Stock, Qty 20+

0

4

Gravely 06602200

KEY-SQ .25X1.0X.25 SAE 8630

$3.99

$

In Stock, Qty 13

0

5

Gravely 09253400

WLDMT, SPINDLE SHEAVE

Note: (72" Deck)

$87.99

$

In Stock, only 1 left!

0

Gravely 09238500

WELDMENT, SPINDLE SHEAVE 6.00

Note: (60" Deck)

$46.99

$

In Stock, Qty 17

0

Gravely 09242500

WELDMENT, SPINDLE SHEAVE 5.00
(Superseded to 07331067)

Note: (50" Deck)

$122.99

$

In Stock, Qty 5

0

6

Gravely 09253300

WLDMT, SHEAVE (DOUBLE) 7.25
(Superseded to 59217800)

Note: (Double) 7.25 (72" Deck)

$166.99

$

Usually ships in 4-12 days

0

Gravely 09253100

SHEAVE, DOUBLE (6.25")

Note: (Double) 6.25 (60" Deck)

$87.99

$

In Stock, Qty 7

0

Gravely 09253200

SHEAVE, DOUBLE (5.25")

Note: (Double) 5.25 (50" Deck)

$64.99

$

In Stock, Qty 7

0

7

Gravely 00597000

WASHER, CUPPED SERRATED, .375
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

8

Gravely 415543

WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06441000)

$3.49

$

In Stock, Qty 11

0

9

Gravely 05974500

BLT-HEX .38-16X1.00 YZ GR8
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

10

Gravely 07239400

V-BELT, B-WRAPPED

Note: (72" Deck)

$109.99

$

Usually ships in 4-12 days

0

Gravely 07234600

V-BELT, HB-WRAPPED

Note: (60" Deck)

$127.99

$

In Stock, Qty 20+

0

Gravely 07239300

V-BELT, B-WRAPPED

Note: (50" Deck)

$107.99

$

In Stock, only 2 left!

0

11

Gravely 07237700

V-BELT, HB-RAW EDGE

Note: (72" Deck)

$72.99

$

In Stock, Qty 6

0

Gravely 07235000

V-BELT, HB-RAW EDGE

Note: (60" Deck)

$53.99

$

In Stock, Qty 14

0

Gravely 07234900

V-BELT, HB-RAW EDGE

Note: (50" Deck)

$52.99

$

In Stock, only 2 left!

0

12

Gravely 034120

ARM,IDLER PIVOT
(Superseded to 08905900)

$84.99

$

Usually ships in 4-12 days

0

13

Gravely 010174

BSHG-FLG .762X1.0X.580X1.48 NY
(Superseded to 05518400)

$5.49

$

In Stock, Qty 15

0

14

Gravely 05961400

BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$4.99

$

In Stock, Qty 20+

0

15

Gravely 07325200

IDLER-V 4.00 X .377 DAYCO
(Superseded to 07327600)

$39.99

$

In Stock, Qty 20+

0

16

Gravely 020444

SG-COMP .085X.80X1.00 WLD36
(Superseded to 08329100)

$14.99

$

In Stock, Qty 5

0

17

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

18

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

Note: (50" & 60" Decks)

$1.49

$

In Stock, Qty 20+

0

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

Note: (72" Decks)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06223000

BLT-RDHDSQNK .50-13X3.50 YWZC
(Superseded to 06200317)

$6.49

$

In Stock, Qty 20+

0

20

Gravely 034119

SPACER .560X.750X2.437 ST
(Superseded to 08820500)

$19.99

$

In Stock, Qty 7

0

21

Gravely 08334700

SPRING, EXT
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0

22

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

23

Gravely 09248400

ASSEMBLY, IDLER PIVOT ARM
(Superseded to 09286500)

Note: (Contains Items 25 & 26)

$167.99

$

Usually ships in 4-12 days

0

24

Gravely 09248500

WELDMENT, IDLER PIVOT ARM
(Superseded to 09286451)

$174.99

$

In Stock, only 1 left!

0

25

Gravely 05435800

BRG, 1.00 X 1.12 X .75

$9.99

$

In Stock, Qty 20+

0

26

Gravely 07053100

BEARING, PEDESTAL
(Superseded to 07000031)

$84.99

$

In Stock, Qty 10

0

27

Gravely 07326000

IDLER-FLAT 4.00X.38 (2.00 W)
(Superseded to 07327800)

Note: (2.00 W)

$91.99

$

In Stock, Qty 18

0

28

Gravely 014672

BUSHING .406 X .750 X .188
(Superseded to 03488200)

$6.49

$

In Stock, only 2 left!

0

29

Gravely 08335100

SG-EXT-.090X1.00X6.00
(Superseded to 08300513)

$35.99

$

In Stock, Qty 20+

0

30

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

31

Gravely 09248353

BRACKET, SPRING

$41.99

$

In Stock, only 4 left!

0

32

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

33

Gravely 06425500

WSHR-FL-STL .375X1.125X.065YWZ
(Superseded to 06401139)

$2.99

$

In Stock, Qty 14

0

34

Gravely 09219000

ASSEMBLY,IDLER ARM GRD.DRIVE

Note: (Includes 25 & 36)

$102.99

$

Usually ships in 4-12 days

0

35

Gravely 03233100

SPACER .513X.748X.620

$15.99

$

Usually ships in 4-12 days

0

36

Gravely 09217051

WMT, IDLER ARM GROUND DRIVE
(Superseded to 09217000)

$114.99

$

Usually ships in 4-12 days

0

37

Gravely 06225000

BLT-RDHDSQNK .50-13X3.50 G5YZ
(Superseded to 06200317)

$6.49

$

In Stock, Qty 20+

0

38

Gravely 05966600

BLT-HEX .50-13X2.50 GR5 YWZC
(Superseded to 05901712)

$3.99

$

In Stock, only 1 left!

0

39

Gravely 022063

IDLER-FLAT-PLY 6.75X.510
(Superseded to 07316700)

$65.99

$

In Stock, only 3 left!

0

40

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 20+

0

41

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

42

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

43

Gravely 09054100

SPACER .380 X .625 X 1.500

$

$

Not available

44

Gravely 06225400

BLT-RDHDSQNK .38-16X2.75 G5YZ
(Superseded to 06200316)

$4.99

$

In Stock, Qty 20+

0
