992032 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 26hp Kohler EFI (SN: 035000 & Above) EFI Fuel Tanks And Hoses Parts Diagram

Pro-Master 72" Zero-Turn Mower, 26hp Kohler EFI

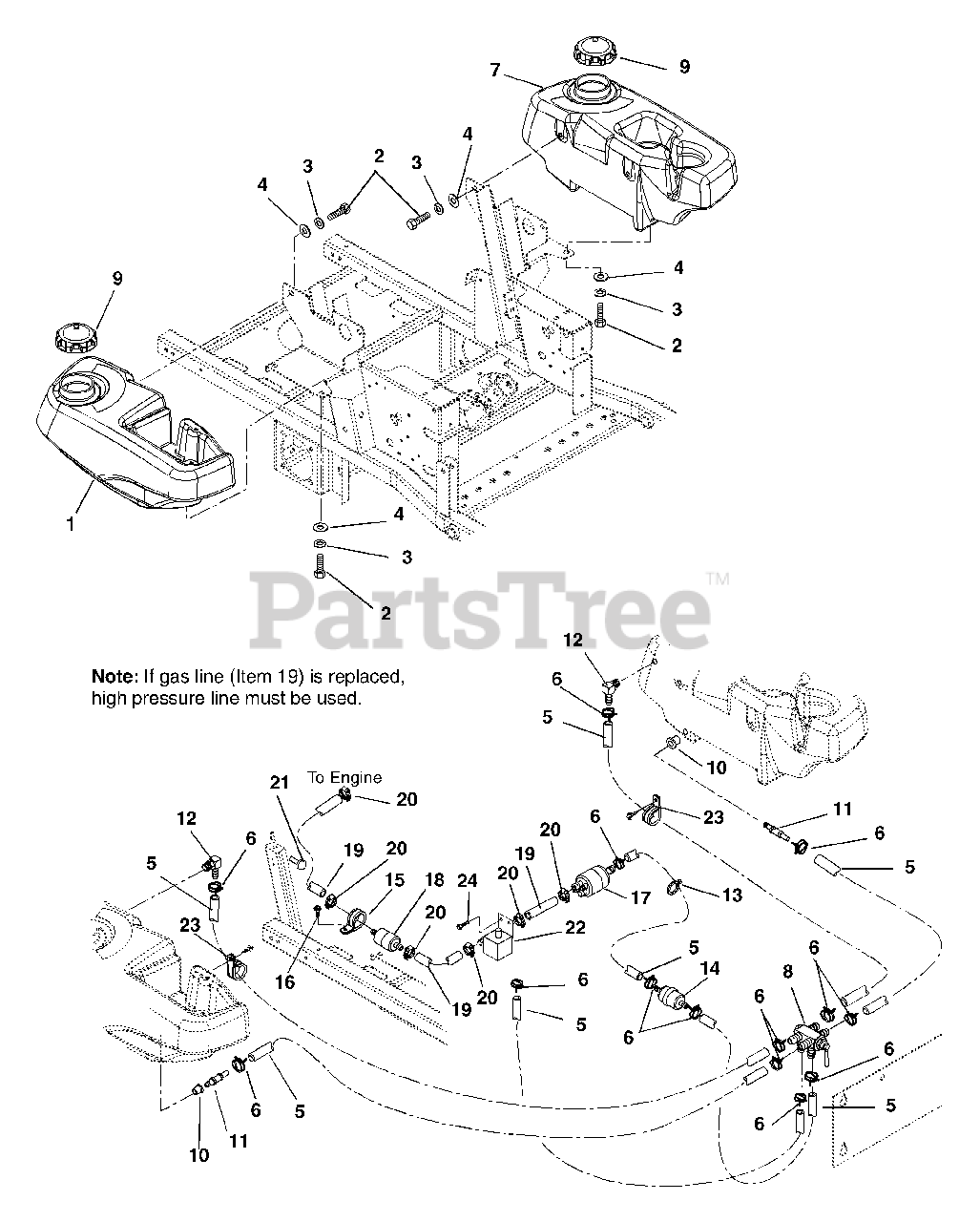

EFI Fuel Tanks And Hoses Parts Diagram

  • Title

1

Gravely 09257100

FUEL TANK, RH

$

$

Not available

2

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 00922600

HOSE,5/16 ID

$

$

Not available

6

Gravely 06947900

CLAMP, HOSE WIRE .520/.550

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 09257200

FUEL TANK, LH

$

$

Not available

8

Gravely 09227000

FUEL VALVE
(Superseded to 09289600)

$87.99

$

In Stock, only 2 left!

0

9

Gravely 09239500

CAP - FUEL
(Superseded to 03859100)

$29.99

$

In Stock, Qty 20+

0

10

Gravely 07511400

BSHG-FLG .375 X 1.062 X .625 R

$3.99

$

In Stock, Qty 20+

0

11

Gravely 21537300

FITTING, TANK W/ SCREEN (5/16)

$

$

Not available

12

Gravely 21537200

FITTING, TANK (5/16 ELBOW)

$21.99

$

Usually ships in 4-12 days

0

13

Gravely 09258600

TUBE CLIP 1 1/2"

$

$

Not available

14

Gravely 05050300

FILTER, FUEL .312 ID HOSE

$21.99

$

Usually ships in 4-12 days

0

15

Gravely 06948000

CLAMP, 2.18"

$

$

Not available

16

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 21536600

PUMP, EFI FUEL

$

$

Not available

18

Gravely 21536500

FILTER, FUEL
(Superseded to 21542900)

$72.99

$

Usually ships in 4-12 days

0

19

Gravely 00936700

GAS LINE, 5/16" ID (PRESSURE)

$2.49

$

Usually ships in 4-12 days

0

20

Gravely 06924300

HOSE CLAMP

$7.99

$

Usually ships in 4-12 days

0

21

Gravely 09236500

TUBE CLIP 3/4 (4158)

$

$

Not available

22

Gravely 21536700

REGULATOR, EFI FUEL

$

$

Not available

23

Gravely 06941400

CLAMP, .50 I.D.

$

$

Not available

24

Gravely 07411600

SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$1.49

$

In Stock, Qty 20+

0
