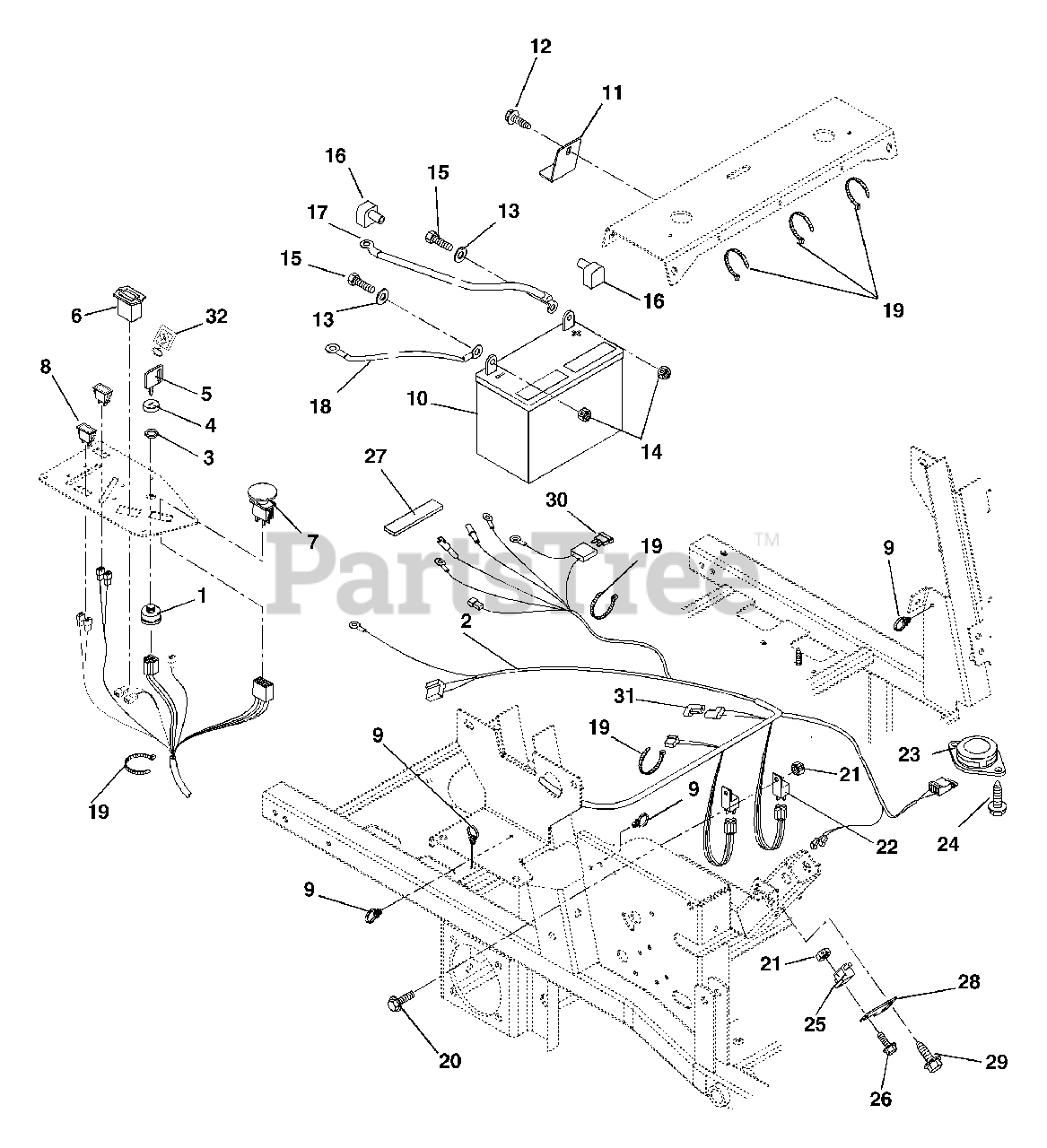

992032 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 26hp Kohler EFI (SN: 035000 & Above) Electrical System Parts Diagram

Pro-Master 72" Zero-Turn Mower, 26hp Kohler EFI

Electrical System Parts Diagram

  • Title

1

Gravely 03602300

Key Switch (029, 030, 032, 033, 034, 035)

Note: (029, 030, 032, 033, 034, 035)

$26.99

$

In Stock, Qty 20+

0

1

Gravely 01563700

Key Switch (020)

Note: (020)

$35.99

$

In Stock, only 2 left!

0

2

Gravely 09217800

Harness, Z 6-Pin Wiring (020, 029, 030, 034, 035)
(Superseded to 09286301)

Note: (020, 029, 030, 034, 035)

$341.99

$

In Stock, only 1 left!

0

2

Gravely 09258700

Harness, Wiring-EFI (032, 033)
(Superseded to 09276100)

Note: (032, 033)

$

$

Not available

3

Gravely 045489

Nut-Panel .562-24
(Superseded to 06517400)

$21.99

$

In Stock, Qty 7

0

4

Gravely 045490

Cap-Ignition Switch
(Superseded to 07517700)

$3.99

$

In Stock, Qty 19

0

5

Gravely 02460700

Key-with Cap

$10.99

$

In Stock, Qty 20+

0

6

Gravely 09418900

Hour Meter
(Superseded to 09497400)

$25.99

$

In Stock, only 4 left!

0

7

Gravely 01545600

Switch-Clutch With Retainer Ring

$27.99

$

In Stock, Qty 20+

0

8

Gravely 050673

Light-Indicator Kit (020, 029, 030, 034, 035)
(Superseded to 05128700)

Note: (020, 029, 030, 034, 035)

$7.99

$

In Stock, Qty 9

0

8

Gravely 050673

Light-Indicator Kit (032, 033)
(Superseded to 05128700)

Note: (032, 033)

$7.99

$

In Stock, Qty 9

0

9

Gravely 09236500

Tube Clip .75 (020, 029, 030, 034, 035)

Note: (020, 029, 030, 034, 035)

$

$

Not available

9

Gravely 09258600

Tube Clip 1 1/2 (032, 033)

Note: (032, 033)

$

$

Not available

10

Gravely 03621100

Battery with Tube

$

$

Not available

11

Gravely 09227200

Clamp-Battery Hold Down

$

$

Not available

12

Gravely 07412000

Screw-Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06437300

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

14

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

16

Gravely 039619

Insulator
(Superseded to 07505700)

$10.99

$

Usually ships in 4-12 days

0

17

Gravely 02743300

Positive Cable 22"
(Superseded to 03287200)

$21.99

$

In Stock, only 2 left!

0

18

Gravely 02518900

Ground Cable
(Superseded to 03287100)

$17.99

$

In Stock, only 2 left!

0

19

Gravely 036313

Cable Tie
(Superseded to 07517300)

$

$

Not available

20

Gravely 06116700

Screw-Machine 10-24 x .50 Hex Washer Head (020, 029, 030, 034, 035)
(Superseded to 05901825)

Note: (020, 029, 030, 034, 035)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06116700

Screw-Machine 10-24 x .50 Hex Washer Head (032, 033)
(Superseded to 05901825)

Note: (032, 033)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06536000

Nut-Locking-Nylon 10-24 With Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 040216

Relay
(Superseded to 00432101)

Note: (Included with Harness)

$25.99

$

In Stock, Qty 20+

0

23

Gravely 045036

Seat Switch
(Superseded to 03490500)

$16.99

$

In Stock, only 1 left!

0

24

Gravely 07411900

Screw-Tapping 12-24 x .50 Hex Washer Head
(Superseded to 07400136)

$2.49

$

In Stock, Qty 5

0

25

Gravely 03657100

Switch-Single Pole

$9.99

$

In Stock, Qty 14

0

26

Gravely 06116900

Screw-Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, only 4 left!

0

27

Gravely 050418

Pad-Battery
(Superseded to 08800600)

$

$

Not available

28

Gravely 09237551

Plate-Switch

$

$

Not available

29

Gravely 07412900

Screw-Tapping .38-16 x .50 Hex Washer Head
(Superseded to 07400126)

$1.99

$

In Stock, Qty 18

0

30

Gravely 00524600

Fuse, 30 Amp

Note: (Included with Harness)

$

$

Not available

31

Gravely 03081700

Molded Diode Plug-Black 1-Amp

Note: (Included with Harness)

$29.99

$

In Stock, Qty 6

0

32

Gravely 045842

Key Chain
(Superseded to 03490000)

$

$

Not available
