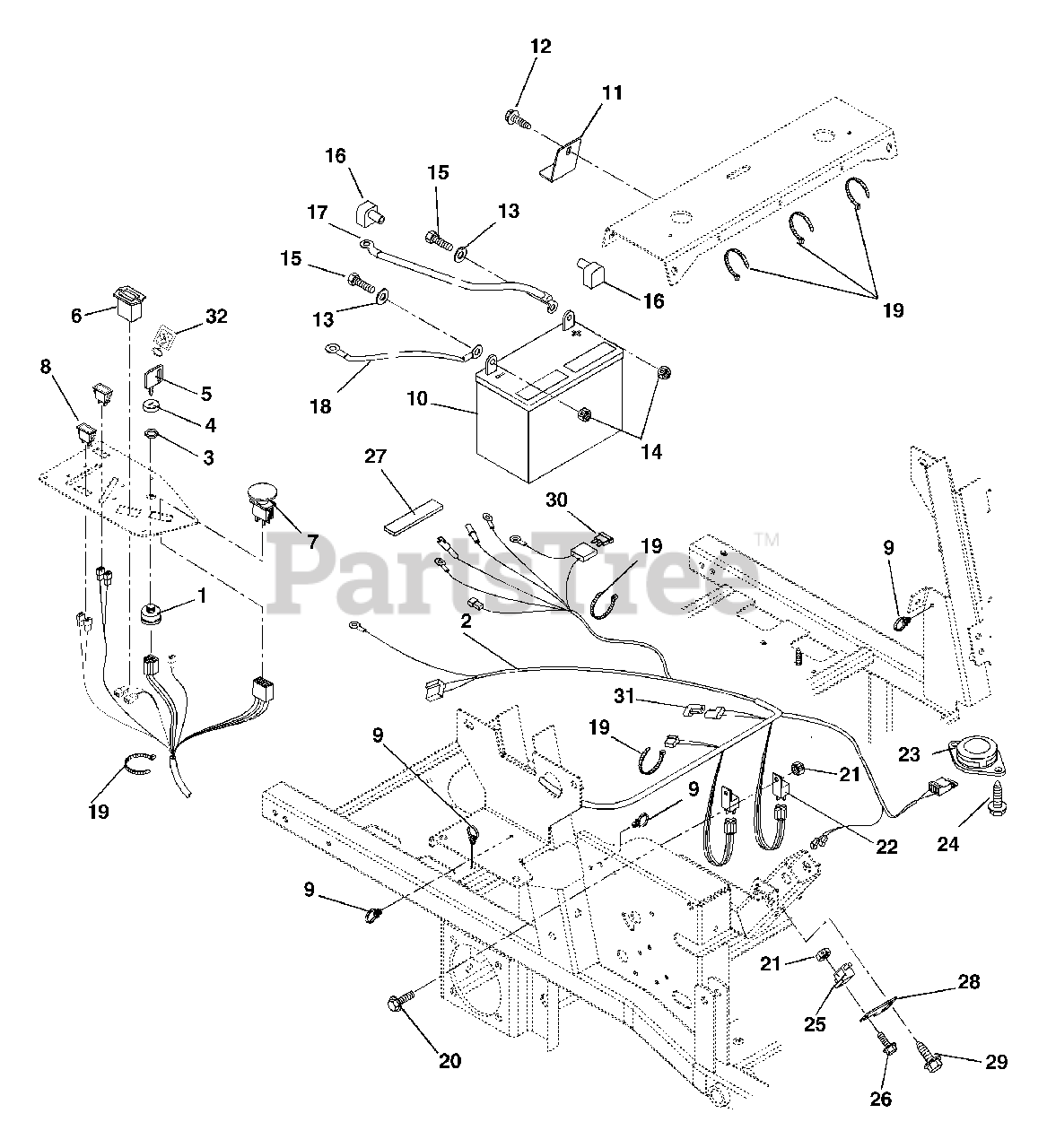

992032 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 26hp Kohler EFI (SN: 035000 & Above) Electrical System Parts Diagram

Pro-Master 72" Zero-Turn Mower, 26hp Kohler EFI

Electrical System Parts Diagram

  • Title

1

Gravely 03602300

KEY SWITCH

Note: (029, 030, 032, 033, 034, 035)

$26.99

$

In Stock, Qty 15

0

Gravely 01563700

SWITCH KEY 5Y463A ALT GRDNG

Note: (020)

$35.99

$

In Stock, Qty 5

0

2

Gravely 09217800

HARNESS, Z 6-PIN WIRING
(Superseded to 09286301)

Note: (020, 029, 030, 034, 035)

$341.99

$

Usually ships in 4-12 days

0

Gravely 09258700

HARNESS, WIRING-EFI
(Superseded to 09276100)

Note: (032, 033)

$

$

Not available

3

Gravely 045489

NUT- PANEL .562-24 GRECO
(Superseded to 06517400)

$21.99

$

In Stock, Qty 6

0

4

Gravely 045490

CAP - IGNITION SWITCH
(Superseded to 07517700)

$3.99

$

In Stock, Qty 12

0

5

Gravely 02460700

KEY -W/CAP

$10.99

$

In Stock, Qty 20+

0

6

Gravely 09418900

HOUR METER, QUARTZ
(Superseded to 09497400)

$25.99

$

In Stock, Qty 17

0

7

Gravely 01545600

SWITCH, CLUTCH

$27.99

$

In Stock, Qty 20+

0

8

Gravely 050673

LIGHT, INDICATOR (RED)
(Superseded to 05128700)

Note: (020, 029, 030, 034, 035)

$7.99

$

In Stock, Qty 9

0

Gravely 050673

LIGHT, INDICATOR (RED)
(Superseded to 05128700)

Note: (032, 033)

$7.99

$

In Stock, Qty 9

0

9

Gravely 09236500

TUBE CLIP 3/4 (4158)

Note: (020, 029, 030, 034, 035)

$

$

Not available

Gravely 09258600

TUBE CLIP 1 1/2"

Note: (032, 033)

$

$

Not available

10

Gravely 03621100

BATTERY W/ TUBE

$

$

Not available

11

Gravely 09227200

CLAMP, BATTERY HOLD DOWN

$

$

Not available

12

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

16

Gravely 039619

INSULATOR
(Superseded to 07505700)

$10.99

$

In Stock, only 2 left!

0

17

Gravely 02743300

START CABLE 22"
(Superseded to 03287200)

$21.99

$

In Stock, only 2 left!

0

18

Gravely 02518900

GROUND CABLE .25X13.00X.31
(Superseded to 03287100)

$17.99

$

In Stock, only 4 left!

0

19

Gravely 036313

CABLE TIE LG 5-1/2
(Superseded to 07517300)

$1.49

$

Usually ships in 4-12 days

0

20

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

Note: (020, 029, 030, 034, 035)

$0.99

$

In Stock, Qty 20+

0

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

Note: (032, 033)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 040216

RELAY,SEALED W/DIODE
(Superseded to 00432101)

Note: (Included with Harness)

$25.99

$

In Stock, Qty 20+

0

23

Gravely 045036

SEAT SWITCH
(Superseded to 03490500)

$16.99

$

In Stock, only 1 left!

0

24

Gravely 07411900

SCR-TAP 12-24X.50 HWH TR YWZC
(Superseded to 07400136)

$2.49

$

In Stock, Qty 12

0

25

Gravely 03657100

SWITCH- SINGLE POLE N.O.

$9.99

$

In Stock, Qty 18

0

26

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 11

0

27

Gravely 050418

PAD,BATTERY
(Superseded to 08800600)

$

$

Not available

28

Gravely 09237551

PLATE, SWITCH (BLACK)

$

$

Not available

29

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 20+

0

30

Gravely 00524600

FUSE, 30 AMP.

Note: (Included with Harness)

$5.99

$

Usually ships in 4-12 days

0

31

Gravely 03081700

MOLDED DIODE PLUG 1 AMP

Note: (Included with Harness)

$29.99

$

In Stock, only 3 left!

0

32

Gravely 045842

KEY CHAIN
(Superseded to 03490000)

$

$

Not available
