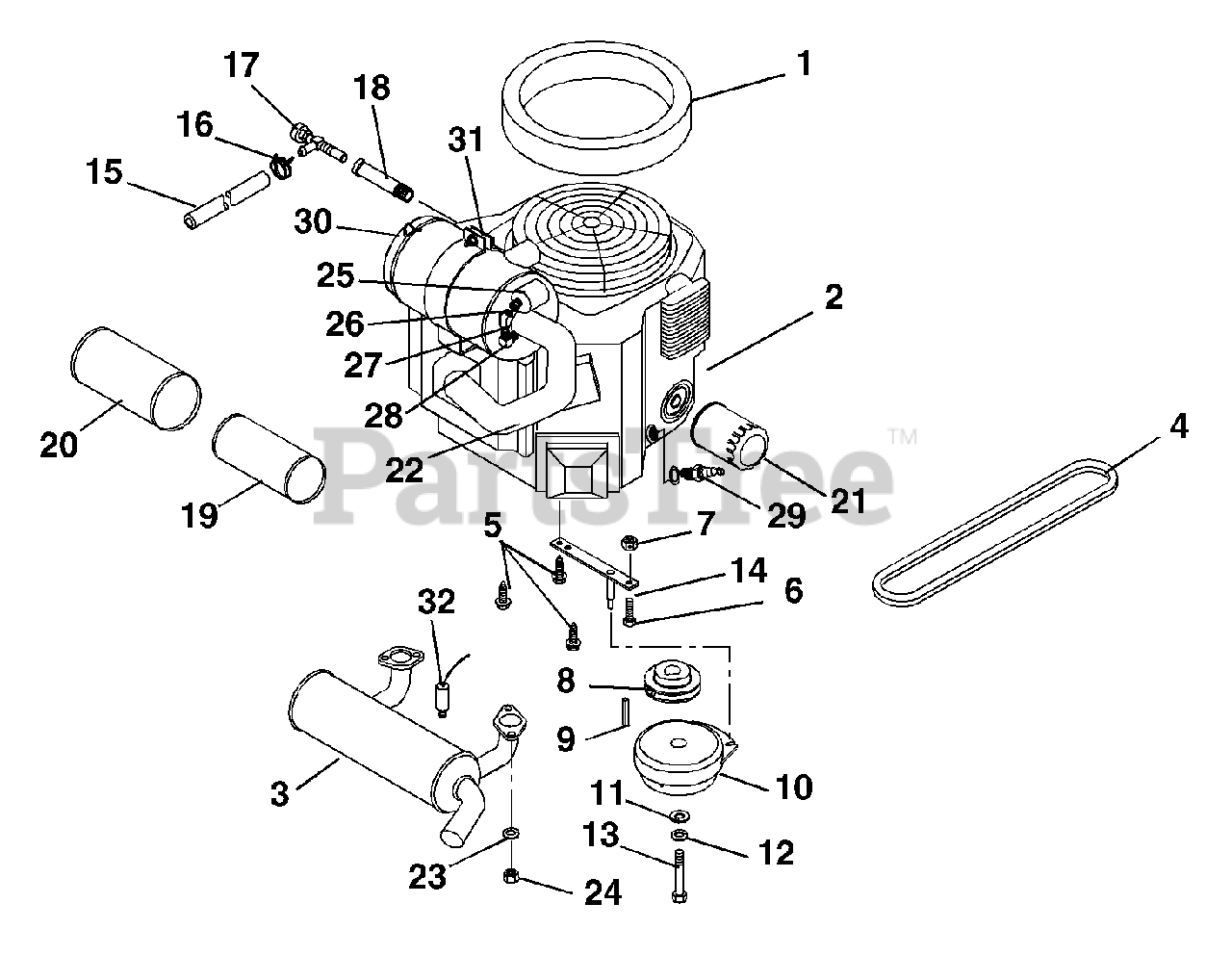

992032 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 26hp Kohler EFI (SN: 035000 & Above) Engine-EFI And Clutch Parts Diagram

Pro-Master 72" Zero-Turn Mower, 26hp Kohler EFI

Engine-EFI And Clutch Parts Diagram

  • Title

1

Gravely 09231400

SEAL-FOAM KOHLER TO ADAPTER

$

$

Not available

2

Gravely 08265000

ENGINE, KOHLER EFI26 (26HP)

$

$

Not available

3

Gravely 09257300

MUFFLER, KOHLER EFI

$706.99

$

Usually ships in 4-12 days

0

4

Gravely 07239200

V-BELT, A-RAW EDGE

$44.99

$

In Stock, only 3 left!

0

5

Gravely 07414100

SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, Qty 20+

0

6

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 10

0

7

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 07321700

PLY-V 4.00X1.125X1.87H

$109.99

$

Usually ships in 4-12 days

0

9

Gravely 06602200

KEY-SQ .25X1.0X.25 SAE 8630

$3.99

$

In Stock, Qty 13

0

10

Gravely 09232700

ELECTRIC CLUTCH
(Superseded to 00389900)

$504.99

$

Usually ships in 4-12 days

0

11

Gravely 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$6.49

$

In Stock, Qty 20+

0

12

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

13

Gravely 05965700

BLT-HEX .44-20X3.00 GR5 YWZC
(Superseded to 05900037)

$7.49

$

In Stock, Qty 14

0

14

Gravely 04907200

ANCHOR-CLUTCH

$75.99

$

In Stock, only 3 left!

0

15

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06939100

CLAMP-HOSE WIRE .490/.510X.116

$3.99

$

In Stock, Qty 20+

0

17

Gravely 035329

DRAIN, 1/2" OIL
(Superseded to 00429000)

$40.99

$

In Stock, only 3 left!

0

18

Gravely 035328

ADAPTER, OIL DRAIN
(Superseded to 03493100)

$6.49

$

Usually ships in 4-12 days

0

19

Gravely 21536900

ELEMENT, INNER SAFETY

$29.99

$

In Stock, Qty 11

0

20

Gravely 21537000

ELEMENT, OUTER PRIMARY

$37.99

$

In Stock, Qty 20+

0

21

Gravely 21397200

FILTER, OIL - KOH CV20
(Superseded to 20715100)

$21.99

$

Usually ships in 4-12 days

0

22

Gravely 21536800

HOSE, AIR INTAKE

$26.99

$

In Stock, only 1 left!

0

23

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06538600

NUT-HEX M8-1.25 YWZC

$2.49

$

Usually ships in 4-12 days

0

25

Gravely 09258800

FILTER MINDER

$

$

Not available

26

Gravely 07065800

NIPPLE, 1/8"NPT

$

$

Not available

27

Gravely 07065700

ELBOW, 45 DEG 1/8" NPT STREET

$5.99

$

Usually ships in 4-12 days

0

28

Gravely 07012300

ELBOW,ADAPT.90 DEG.BRS 1/8X1/8

$

$

Not available

29

Gravely 21525900

SPARK PLUG
(Superseded to 21541700)

$7.49

$

In Stock, Qty 20+

0

30

Gravely 09257500

AIR CLEANER ASSEMBLY
(Superseded to 03782600)

$181.99

$

Usually ships in 4-12 days

0

31

Gravely 09257600

BRACKET, AIR CLEANER MOUNT

$89.99

$

Usually ships in 4-12 days

0

32

Gravely 21537100

SENSOR, OXYGEN

$

$

Not available
