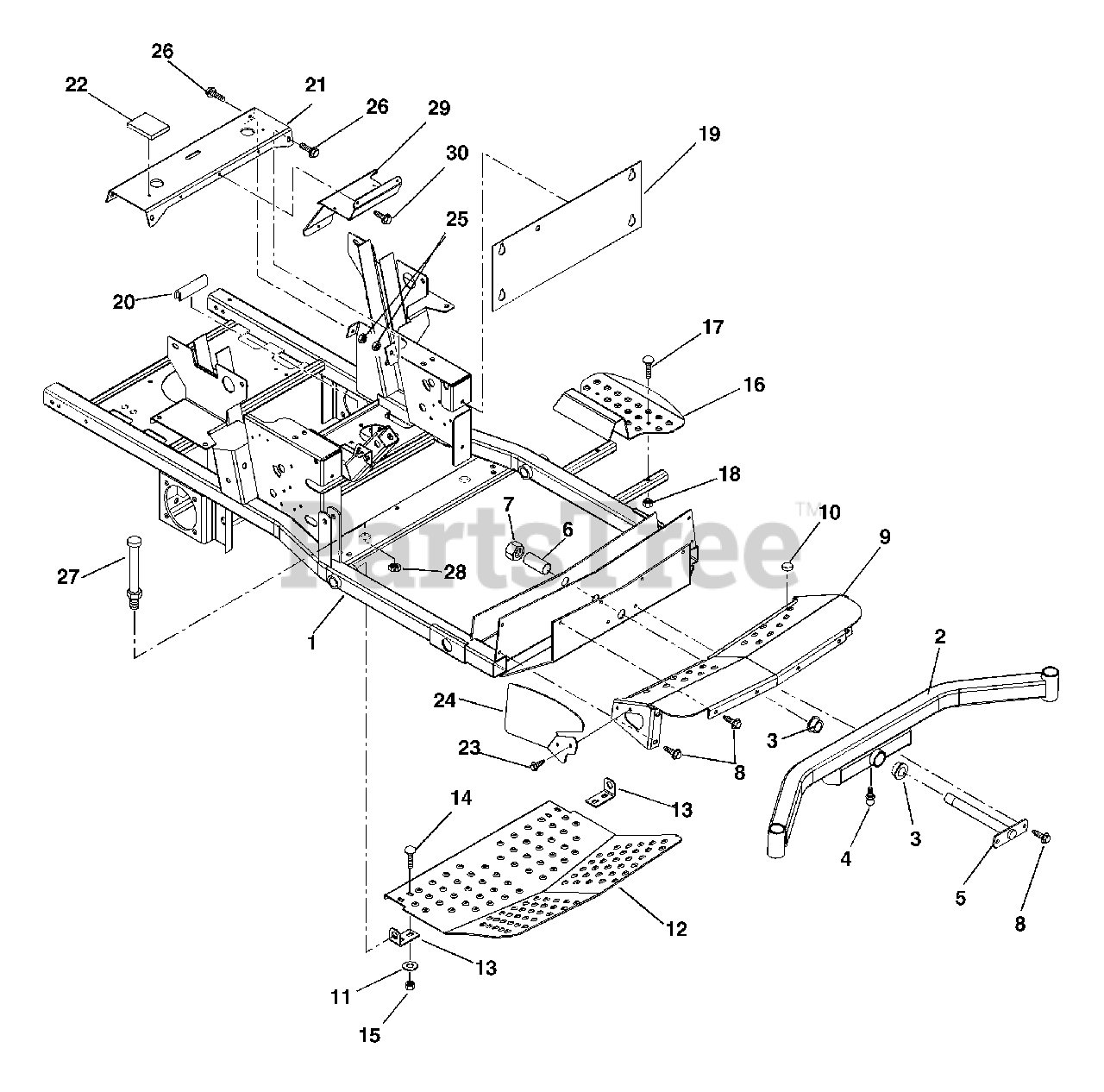

992032 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 26hp Kohler EFI (SN: 035000 & Above) Frame Parts Diagram

Pro-Master 72" Zero-Turn Mower, 26hp Kohler EFI

Frame Parts Diagram

  • Title

1

Gravely 09262951

WLDMT, FRAME

$

$

Not available

2

Gravely 09247553

AXLE, FRONT (RED)
(Superseded to 09247551)

Note: (020, 029, 033 034, 035)

$

$

Not available

Gravely 09252353

WLDMT, FRONT AXLE

Note: (030, 032)

$

$

Not available

3

Gravely 05520100

BSHG-FLG1.020X1.385X.75X1.75NY

$11.99

$

In Stock, Qty 20+

0

4

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

5

Gravely 09232000

PIN - AXLE

$70.99

$

In Stock, only 2 left!

0

6

Gravely 09231900

SPACER 1.009 X 1.250 X 4.23

$22.99

$

In Stock, only 4 left!

0

7

Gravely 06543200

NUT-LK-NYL 1.0-14 YWZC

$10.99

$

In Stock, only 2 left!

0

8

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 09233453

COVER - AXLE (RED)
(Superseded to 09278053)

$

$

Not available

10

Gravely 07516000

BUTTON BUMPER

$1.49

$

In Stock, Qty 17

0

11

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 09233353

PANEL - INSPECTION (RED)

$115.99

$

Usually ships in 4-12 days

0

13

Gravely 09231051

MOUNT, INSPECTION PANEL(BLACK)
(Superseded to 09231000)

$11.99

$

Usually ships in 4-12 days

0

14

Gravely 06215500

BLT-RDHDSQNK .38-16X1.00 G2YZ
(Superseded to 06223600)

$2.99

$

In Stock, Qty 20+

0

15

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

16

Gravely 09231251

STEP, INGRESS (BLACK)

$

$

Not available

17

Gravely 06212100

BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.99

$

In Stock, Qty 12

0

18

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 09234053

PLATE - KICK (RED)
(Superseded to 00483153)

$79.99

$

Usually ships in 4-12 days

0

20

Gravely 049767

STRIP, COWL
(Superseded to 00918200)

$6.49

$

Usually ships in 4-12 days

0

21

Gravely 09275051

CHANNEL, CROSS (BLACK)

Note: (Black)

$64.99

$

Usually ships in 4-12 days

0

22

Gravely 09259600

PAD, SEAT FRAME

$

$

Not available

23

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 09255851

GUARD, FOOT

$

$

Not available

25

Gravely 07053300

NUT-RTNR .375-16X.37

$3.99

$

In Stock, only 2 left!

0

26

Gravely 07049900

BLT-SERHFWH .375-16X1.0 YWZC

$2.99

$

Usually ships in 4-12 days

0

27

Gravely 09260800

POST

$

$

Not available

28

Gravely 06536900

NUT-JAM CTRLK .75-16 YWZC

$6.49

$

In Stock, Qty 11

0

29

Gravely 09229551

BRKT, EFI PUMP MOUNT

Note: (032, 033)

$

$

Not available

30

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
