992032 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 26hp Kohler EFI (SN: 035000 & Above) Hood And Bumper Parts Diagram

Pro-Master 72" Zero-Turn Mower, 26hp Kohler EFI

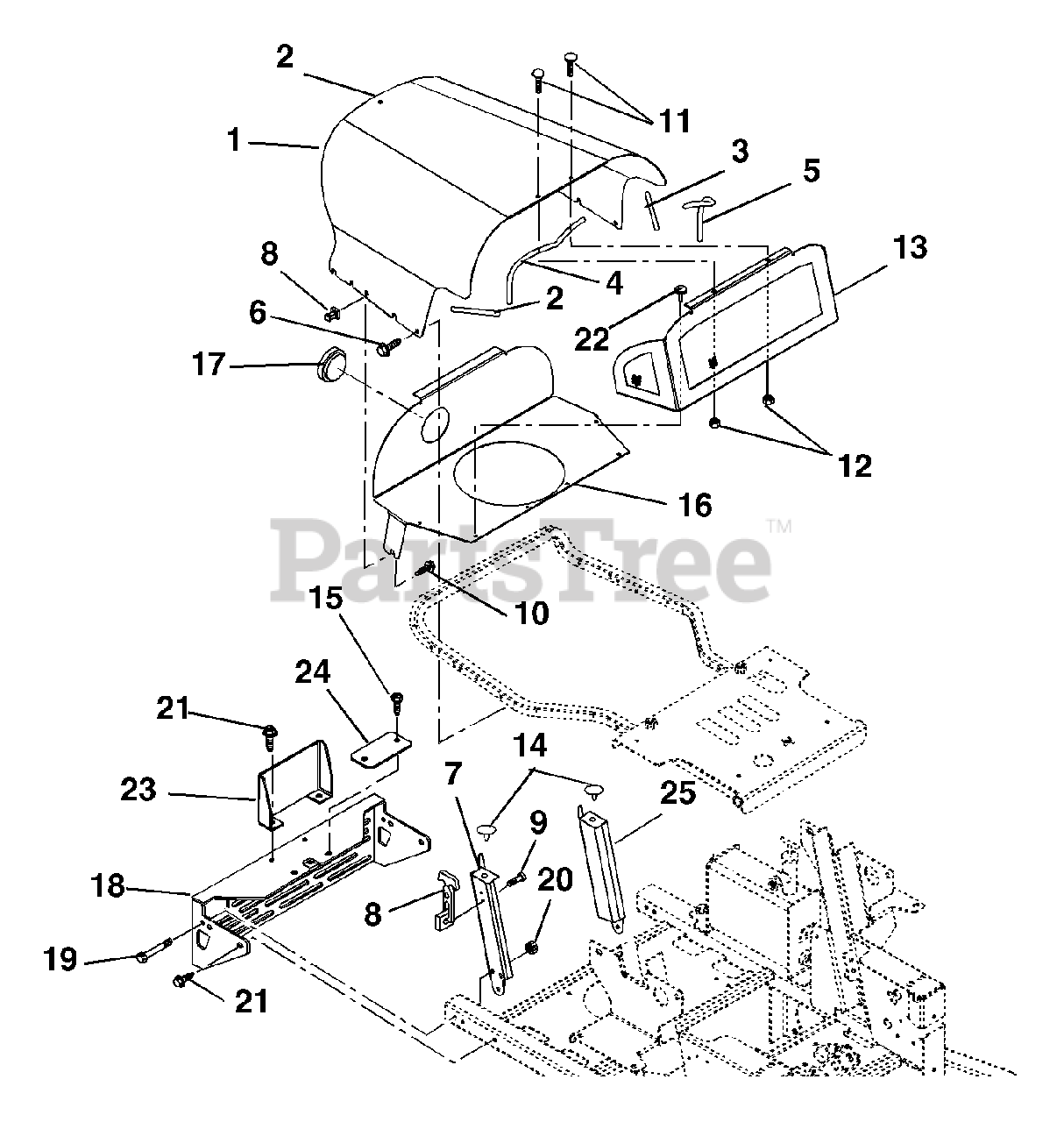

Hood And Bumper Parts Diagram

  • Title

1

Gravely 09257753

HOOD

$

$

Not available

2

Gravely 00929000

SEAL, TRIM-LOK BULK .06 BBL 1'

$1.49

$

Usually ships in 4-12 days

0

3

Gravely 00929000

SEAL, TRIM-LOK BULK .06 BBL 1'

$1.49

$

Usually ships in 4-12 days

0

4

Gravely 00929000

SEAL, TRIM-LOK BULK .06 BBL 1'

$1.49

$

Usually ships in 4-12 days

0

5

Gravely 00929000

SEAL, TRIM-LOK BULK .06 BBL 1'

$1.49

$

Usually ships in 4-12 days

0

6

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 09227953

WLDMT, HOOD SUPPORT RH

$104.99

$

Usually ships in 4-12 days

0

8

Gravely 09079500

LATCH, RUBBER

$35.99

$

In Stock, Qty 14

0

9

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06118200

SCR-MCH 10-24X1.50 HWH YWZC

$2.99

$

Usually ships in 4-12 days

0

11

Gravely 06220600

BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$1.49

$

In Stock, Qty 11

0

12

Gravely 06531000

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

13

Gravely 09257951

WLDMT, PLENUM

$

$

Not available

14

Gravely 07516000

BUTTON BUMPER

$1.49

$

In Stock, Qty 17

0

15

Gravely 07411600

SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

Note: (020)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 09259000

BACK, PLENUM

$

$

Not available

17

Gravely 07533700

PLUG, HOLE-3.38"

Note: (032, 033)

$9.49

$

Usually ships in 4-12 days

0

18

Gravely 09258151

WLDMT, BUMPER
(Superseded to 09293451)

$267.99

$

Usually ships in 4-12 days

0

19

Gravely 05961400

BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$4.99

$

In Stock, Qty 20+

0

20

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

Note: (020)

$1.99

$

In Stock, Qty 20+

0

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

Note: (029, 030, 032, 033, 034, 035)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 06817000

RVT-POP .18 X .402 SBS64L

$1.99

$

Usually ships in 4-12 days

0

23

Gravely 09229951

GUARD, ENGINE

Note: (029, 030, 032, 033, 034, 035)

$65.99

$

Usually ships in 4-12 days

0

24

Gravely 09259451

PLATE, BUMPER

Note: (020)

$

$

Not available

25

Gravely 09275153

WMT, HOOD SUPPORT -LH

$138.99

$

Usually ships in 4-12 days

0
