992032 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 26hp Kohler EFI (SN: 035000 & Above) Mounting Arms And Belt Guards Parts Diagram

Pro-Master 72" Zero-Turn Mower, 26hp Kohler EFI

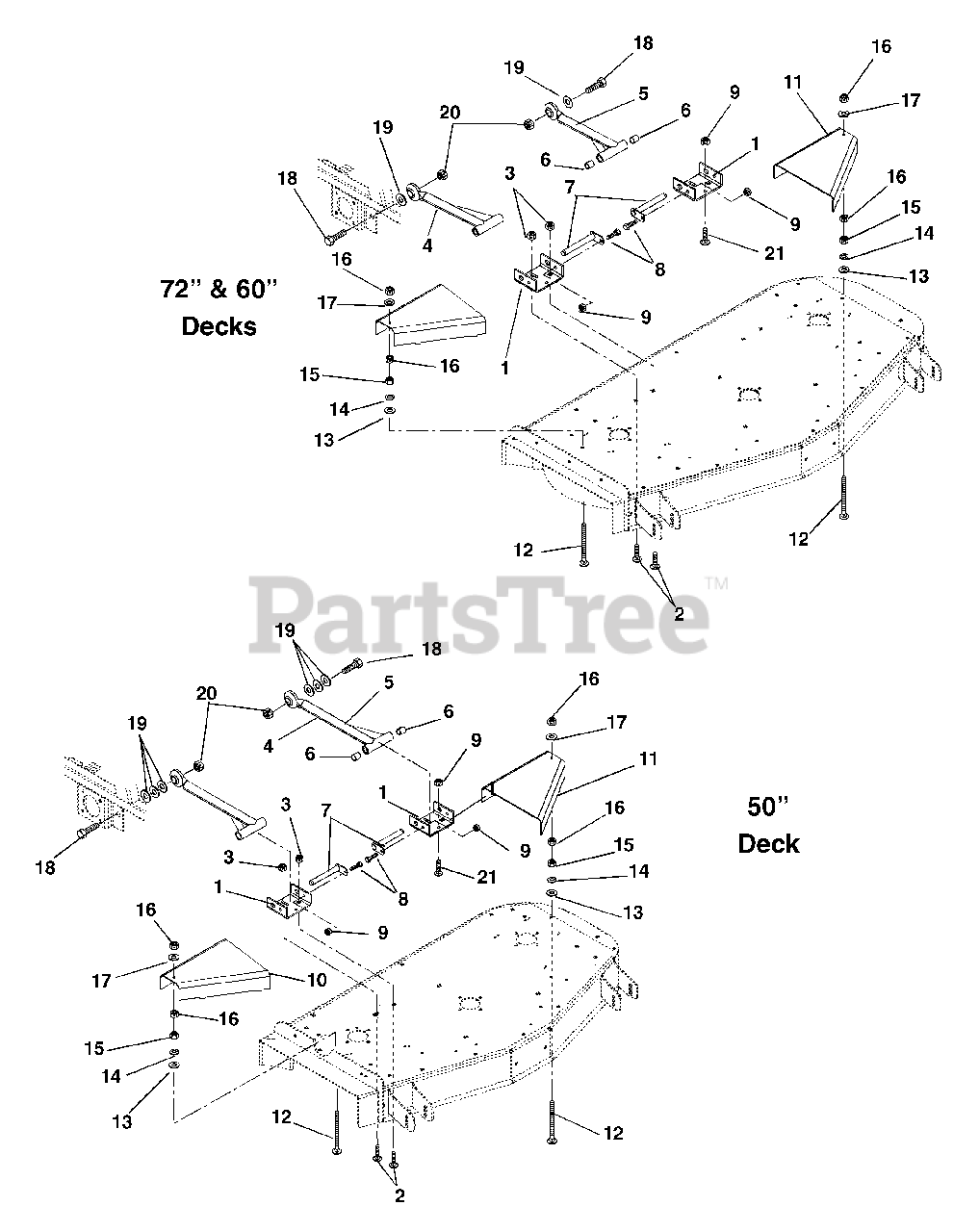

Mounting Arms And Belt Guards Parts Diagram

  • Title

1

Gravely 09240453

BRACKET, MOWER MOUNT (REAR)

Note: (Rear)

$35.99

$

Usually ships in 4-12 days

0

2

Gravely 06215600

BLT-RDHDSQNK .50-13X1.00 G2YW
(Superseded to 06224600)

$3.99

$

Usually ships in 4-12 days

0

3

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

4

Gravely 09247800

ASSEMBLY, MOWER MOUNTING ARM

Note: (Contains Items 5, 6)

$276.99

$

Usually ships in 4-12 days

0

5

Gravely 09247953

WELDMENT - MOWER MOUNTING ARM
(Superseded to 09247951)

$261.99

$

Usually ships in 4-12 days

0

6

Gravely 05433400

BRG .75X.875X1.00
(Superseded to 05435900)

$6.99

$

In Stock, Qty 20+

0

7

Gravely 09238900

WELDMENT, MOWER MTG. PIN

$63.99

$

In Stock, Qty 10

0

8

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

9

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 09240753

GUARD, PULLEY RH
(Superseded to 09240751)

Note: (60" Deck)

$47.99

$

Usually ships in 4-12 days

0

Gravely 09246353

GUARD, PULLEY RH

Note: (50" Deck)

$70.99

$

In Stock, only 1 left!

0

Gravely 09252553

GUARD, R.H. PULLEY

Note: (72" Deck)

$96.99

$

Usually ships in 4-12 days

0

11

Gravely 09240853

GUARD, PULLEY LH
(Superseded to 09240851)

Note: (60" Deck)

$64.99

$

Usually ships in 4-12 days

0

Gravely 09246253

GUARD, PULLEY LH

Note: (50" Deck)

$52.99

$

In Stock, only 2 left!

0

Gravely 09252453

GUARD, L.H. PULLEY

Note: (72" Deck)

$105.99

$

In Stock, only 1 left!

0

12

Gravely 06221300

BLT-RDHDSQNK .31-18X3.50 G5YZ
(Superseded to 06200411)

$6.99

$

In Stock, only 2 left!

0

13

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

16

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 05969500

BLT-HEX .875-9X2.75 GR5 YWZC

$8.49

$

In Stock, Qty 12

0

19

Gravely 06444700

WSHR-FL-STL .890X1.500X.1196YZ
(Superseded to 06401207)

Note: (60" & 72" Deck)

$4.99

$

In Stock, Qty 6

0

Gravely 06444700

WSHR-FL-STL .890X1.500X.1196YZ
(Superseded to 06401207)

Note: (50" Deck)

$4.99

$

In Stock, Qty 6

0

20

Gravely 06539700

NUT-LK-CTR .875-9 YWZC

$6.49

$

In Stock, only 2 left!

0

21

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

Note: (60" & 72" Deck)

$2.99

$

In Stock, Qty 20+

0

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

Note: (50" Deck)

$2.99

$

In Stock, Qty 20+

0
