992032 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 26hp Kohler EFI (SN: 035000 & Above) Rollers Parts Diagram

Pro-Master 72" Zero-Turn Mower, 26hp Kohler EFI

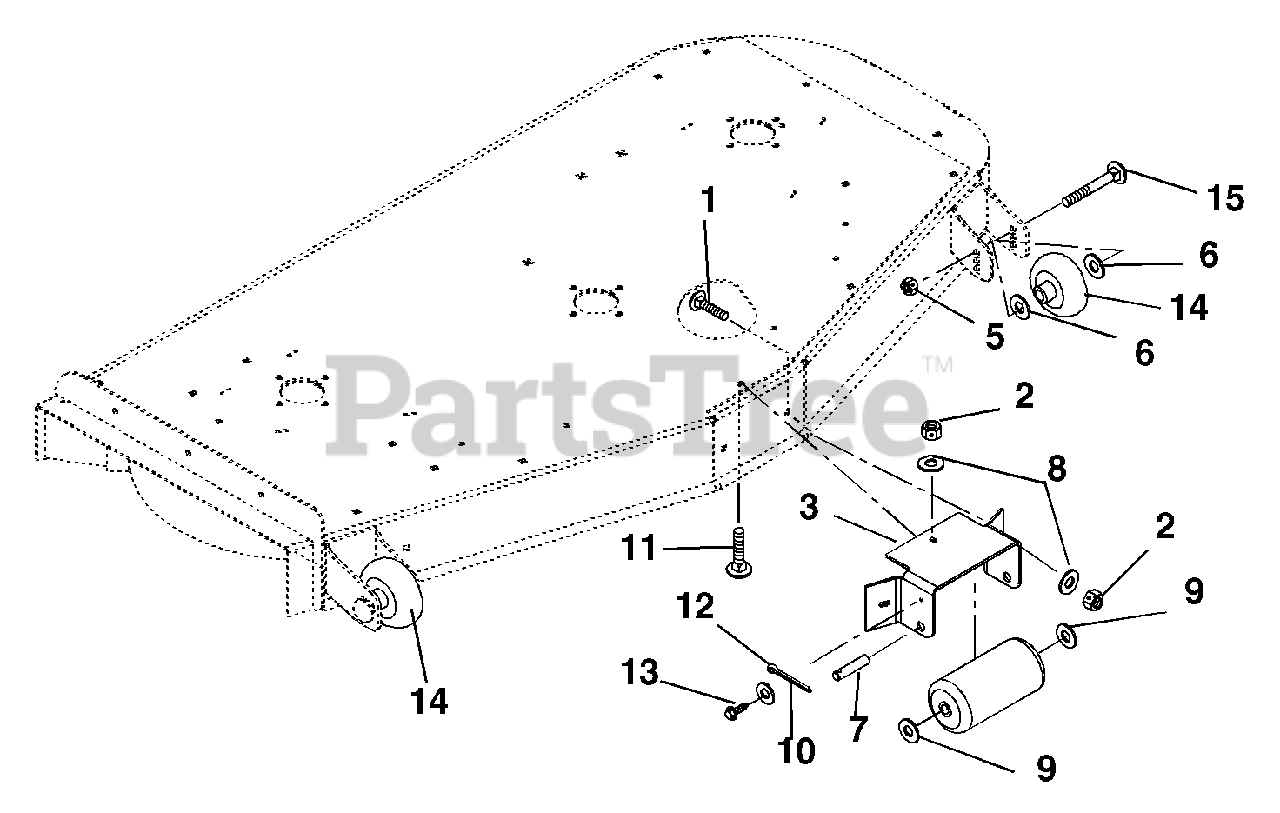

Rollers Parts Diagram

  • Title

1

Gravely 06223600

Bolt-Round Head Square Neck .38-16 x 1.00 Grade 5)
(Superseded to 06200313)

Note: Bolt-Round Head Square Neck .38-16 x 1.00 Grade 5)

$2.99

$

In Stock, only 3 left!

0

2

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

3

Gravely 09094953

Bracket, Anti-Scalp Roller

$103.99

$

In Stock, only 1 left!

0

4

Gravely 09078100

Roller

$48.99

$

In Stock, Qty 6

0

5

Gravely 06540600

Nut-Locking-Nylon .50-13
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

6

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$1.49

$

In Stock, only 4 left!

0

7

Gravely 09075300

Pin

$40.99

$

In Stock, only 2 left!

0

8

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06442800

Washer-Flat-Steel .656 x 1.31 x .095
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

10

Gravely 06437300

Washer-Flat-Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

11

Gravely 06224100

Bolt-Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

12

Gravely 06713100

Pin-Cotter .25 x 2.00
(Superseded to 06700213)

$4.99

$

Usually ships in 4-12 days

0

13

Gravely 07412000

Screw-Self Tapping .25-20 x .50 x Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 09253700

Wheel, 3 x 5

$15.99

$

In Stock, Qty 20+

0

15

Gravely 06225900

Bolt-Round Head Square Neck .50-13 x 5.00 Grade 2
(Superseded to 06200505)

$

$

Not available
