992032 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 26hp Kohler EFI (SN: 035000 & Above) Seat And Hood Frame Parts Diagram

Pro-Master 72" Zero-Turn Mower, 26hp Kohler EFI

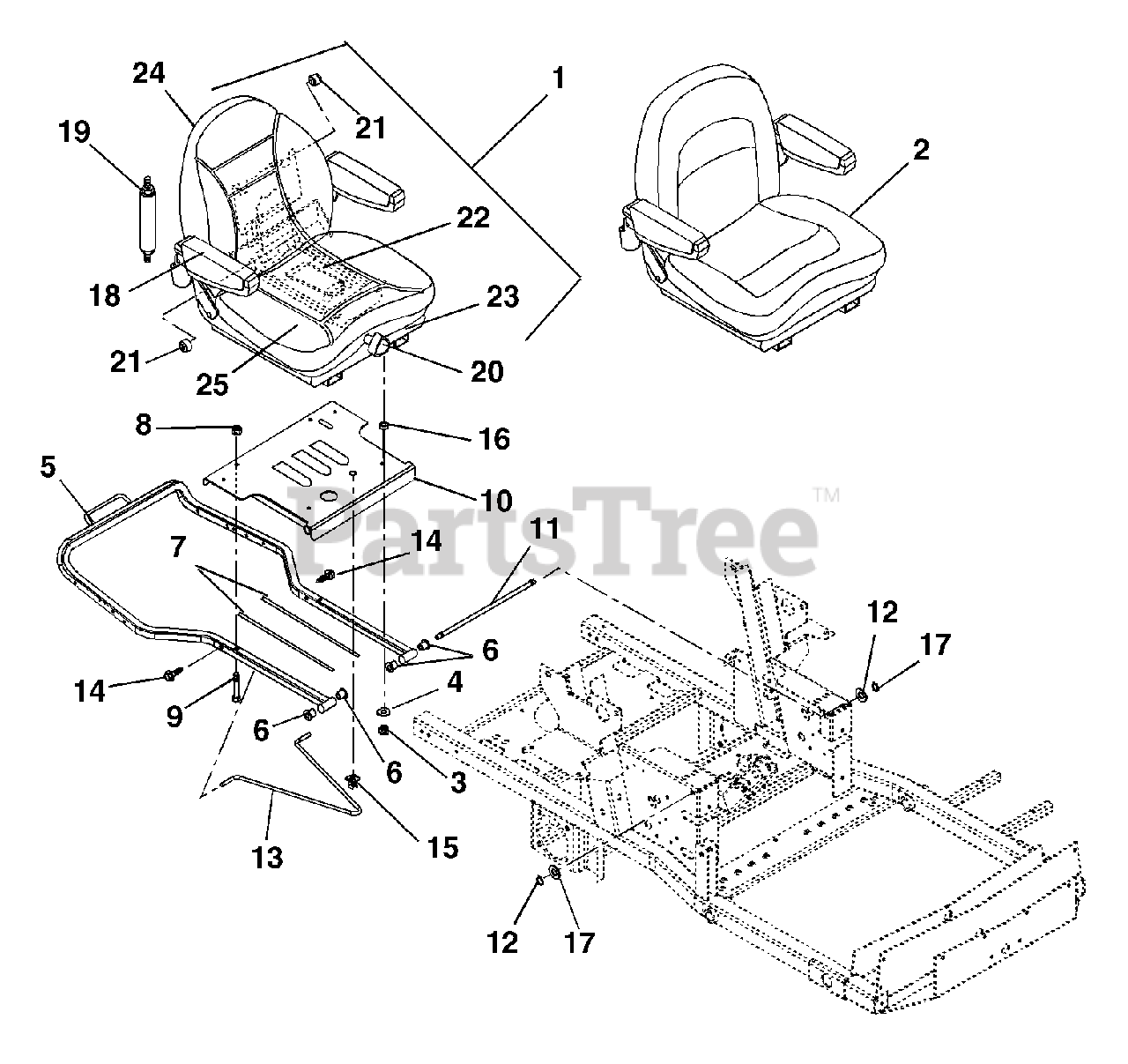

Seat And Hood Frame Parts Diagram

  • Title

1

Gravely 09230000

SEAT, MILSCO SUSPENSION
(Superseded to 79207100)

Note: (020, 029, 030, 032, 033, 035)

$

$

Not available

2

Gravely 09214500

SEAT, MILSCO XB180 - ZOOM
(Superseded to 03829400)

Note: (034)

$448.99

$

Usually ships in 4-12 days

0

3

Gravely 06541700

NUT-LK-NYL M8-1.25 YWZC
(Superseded to 06500817)

Note: (020, 029, 030, 032, 033, 035)

$1.99

$

Usually ships in 4-12 days

0

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

Note: (034)

$1.49

$

In Stock, Qty 5

0

4

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 09259553

WMT, HOOD FRAME (HANDLE)

$

$

Not available

6

Gravely 034738

BSHG-FLG .515X.750X.745X1.00NY
(Superseded to 05521100)

$2.99

$

In Stock, Qty 20+

0

7

Gravely 00932300

VHB TAPE 4941F

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 07056300

BLT, .38-16X1.50 RIB NECK YWZC

$

$

Not available

10

Gravely 09259751

WMT, SEAT PIVOT MOUNT
(Superseded to 03259951)

$

$

Not available

11

Gravely 09245400

ROD - SEAT FRAME PIVOT

$131.99

$

Usually ships in 4-12 days

0

12

Gravely 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$2.99

$

In Stock, Qty 20+

0

13

Gravely 09258500

ROD, SEAT PROP

$

$

Not available

14

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (020, 029, 030, 032, 033, 035)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 07534100

CLIP-.38

$10.99

$

In Stock, only 2 left!

0

16

Gravely 039145

BSHG-SLV .377X.624X.235
(Superseded to 05508900)

$9.99

$

In Stock, only 2 left!

0

17

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 59201900

KIT-ARMPAD MILSCO SEAT

Note: (1 per bag)

$182.99

$

Usually ships in 4-12 days

0

19

Gravely 59201300

KIT-DAMPER W/HDWR MILSCO SEAT

Note: (020, 029, 030, 032, 033, 035)

$212.99

$

Usually ships in 4-12 days

0

20

Gravely 59201600

KIT-KNOB MILSCO SEAT

Note: (1 per bag)

$

$

Not available

21

Gravely 59201700

KIT-ROLLER MILSCO SEAT

Note: (4 per bag)

$

$

Not available

22

Gravely 59201800

KIT-SPRING/CABLE MILSCO SEAT

Note: (1 per bag)

$

$

Not available

23

Gravely 59202000

KIT-ADJUSTER MILSCO SEAT

Note: (1 per carton)

$268.99

$

Usually ships in 4-12 days

0

24

Gravely 59203200

KIT, MILSCO SEAT BASE/BACK-BLK

Note: (020, 029, 030, 032, 033, 035)

$

$

Not available

25

Gravely 59202100

KIT-CUSHION MILSCO SEAT
(Superseded to 59203200)

Note: (1 per carton)

$

$

Not available
