992032 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 26hp Kohler EFI (SN: 035000 & Above) Steering Controls - Upper Parts Diagram

Pro-Master 72" Zero-Turn Mower, 26hp Kohler EFI

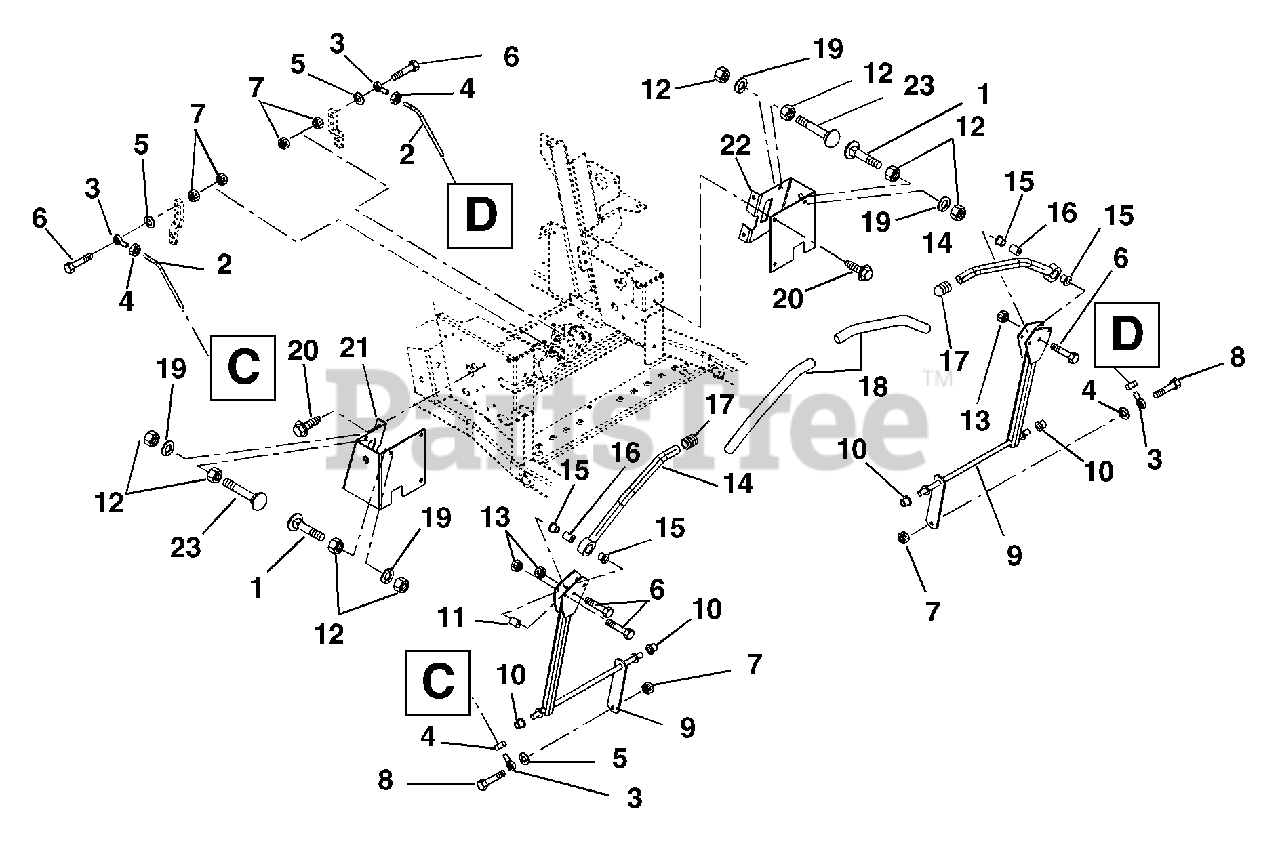

Steering Controls - Upper Parts Diagram

  • Title

1

Gravely 06215300

BLT-RDHDSQNK .38-16X1.50 G2YZ
(Superseded to 06224200)

$4.99

$

In Stock, Qty 20+

0

2

Gravely 09235900

ROD - STEERING ADJUSTMENT

$145.99

$

Usually ships in 4-12 days

0

3

Gravely 045002

ALIGNABALL, 5/16 RH THREAD
(Superseded to 03787100)

$18.99

$

In Stock, only 1 left!

0

4

Gravely 06536700

NUT-JAM .31-24 YWZC
(Superseded to 06500923)

$1.49

$

In Stock, only 2 left!

0

5

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 10

0

7

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 05952400

BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.99

$

In Stock, Qty 15

0

9

Gravely 09234900

ROD - STEERING
(Superseded to 09278251)

$105.99

$

Usually ships in 4-12 days

0

10

Gravely 034738

BSHG-FLG .515X.750X.745X1.00NY
(Superseded to 05521100)

$2.99

$

In Stock, Qty 20+

0

11

Gravely 09235700

ECCENTRIC

$5.49

$

Usually ships in 4-12 days

0

12

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 09235500

HANDLE WLDMT LH

$105.99

$

In Stock, Qty 6

0

Gravely 09235600

WLDMT, RH HANDLE

$94.99

$

In Stock, only 3 left!

0

15

Gravely 035172

BSHG-FLG .762X1.48X.44 NYL
(Superseded to 05525200)

$3.99

$

In Stock, only 4 left!

0

16

Gravely 09235400

SPACER .328 X .76 X 1.01

$21.99

$

In Stock, only 1 left!

0

17

Gravely 09211400

CAPLUG - HANDLEBAR

$3.49

$

In Stock, Qty 20+

0

18

Gravely 09246800

GRIP - HANDLEBAR

$13.99

$

In Stock, Qty 20+

0

19

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 09224553

MOUNT, STEERING ROD RH (RED)

$34.99

$

Usually ships in 4-12 days

0

22

Gravely 09224453

MOUNT, STEERING ROD LH (RED)

$42.99

$

Usually ships in 4-12 days

0

23

Gravely 06220500

BLT-RDHDSQNK .38-16X2.00 G2YZ
(Superseded to 06224300)

$3.99

$

In Stock, Qty 11

0
