992032 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 26hp Kohler EFI (SN: 035000 & Above) Transmission Parts Diagram

Pro-Master 72" Zero-Turn Mower, 26hp Kohler EFI

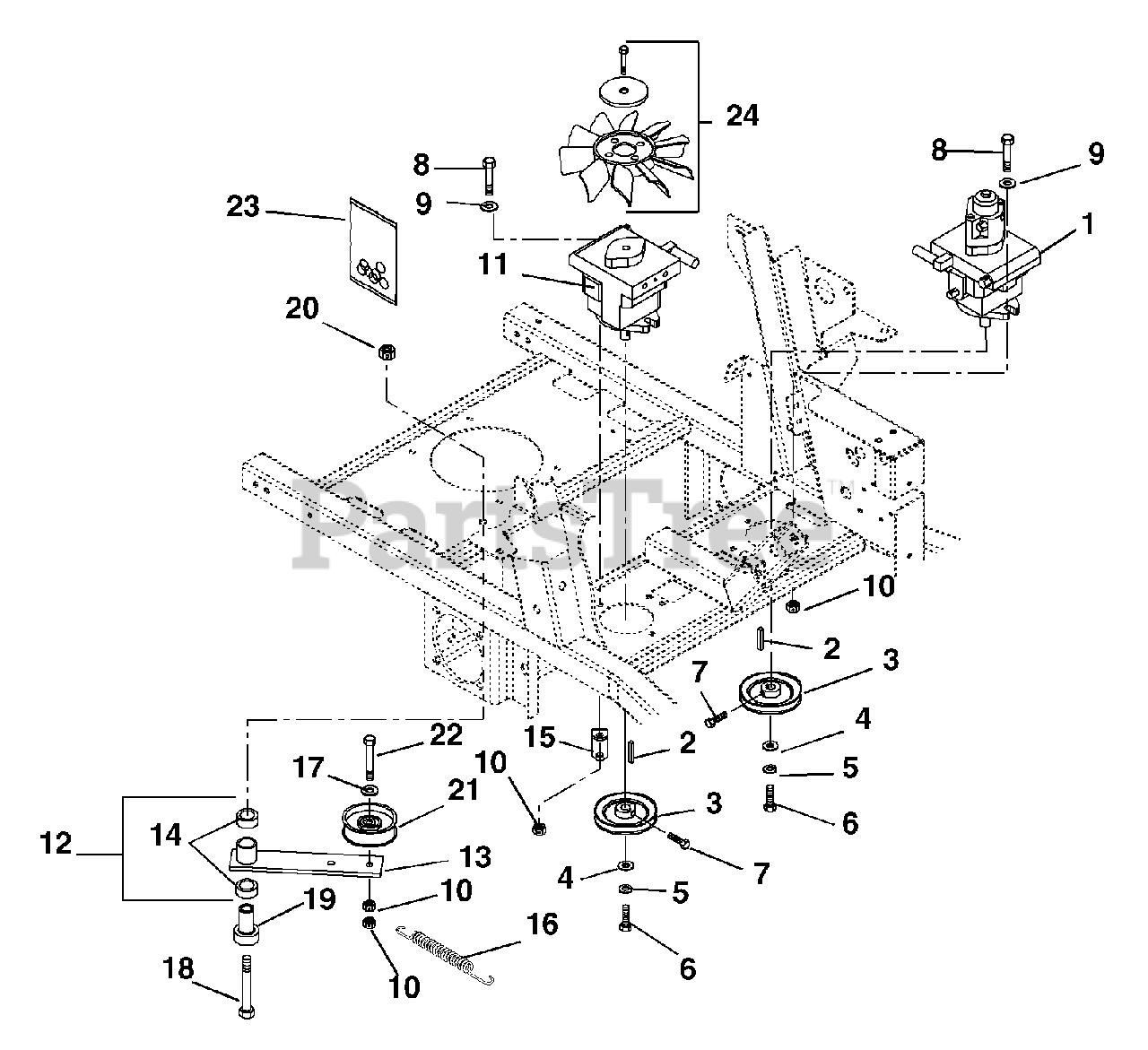

Transmission Parts Diagram

  • Title

1

Gravely 09262500

HYDROSTAT, BDP-10A W/ AUX

$1055.99

$

Usually ships in 4-12 days

0

2

Gravely 050995

KEY-STR 5MMX25MMX5MM
(Superseded to 06607500)

$3.99

$

In Stock, Qty 12

0

3

Gravely 051138

SHEAVE, PUMP .592 X 4.345
(Superseded to 07318900)

$52.99

$

In Stock, Qty 10

0

4

Gravely 06442200

WSHR-FL-STL .281X1.0X.048 YWZC
(Superseded to 06426600)

$1.49

$

In Stock, only 4 left!

0

5

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

6

Gravely 05969800

BLT-HEX M6 X 1.0X12 YWZC

$2.49

$

In Stock, Qty 10

0

7

Gravely 05947900

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

8

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 06444300

WSHR-FL-STL .390X.75X.125 YWZC

$8.49

$

In Stock, only 3 left!

0

10

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 09274800

PUMP, BDP-10A (THRU SHAFT)

$853.99

$

Usually ships in 4-12 days

0

12

Gravely 09219000

ASSEMBLY,IDLER ARM GRD.DRIVE

Note: (Includes 13 & 14)

$102.99

$

Usually ships in 4-12 days

0

13

Gravely 09217051

WMT, IDLER ARM GROUND DRIVE
(Superseded to 09217000)

$114.99

$

Usually ships in 4-12 days

0

14

Gravely 05435800

BRG, 1.00 X 1.12 X .75

$9.99

$

In Stock, Qty 20+

0

15

Gravely 09231151

ANCHOR, SPRING IDLER
(Superseded to 09231100)

$23.99

$

Usually ships in 4-12 days

0

16

Gravely 08336000

SPRING, EXTENSION
(Superseded to 08300728)

$28.99

$

In Stock, Qty 20+

0

17

Gravely 06444300

WSHR-FL-STL .390X.75X.125 YWZC

$8.49

$

In Stock, only 3 left!

0

18

Gravely 05965800

BLT-HEX .50-13X3.50 GR5 YWZC
(Superseded to 05901937)

$5.49

$

In Stock, only 3 left!

0

19

Gravely 07053100

BEARING, PEDESTAL
(Superseded to 07000031)

$84.99

$

In Stock, Qty 10

0

20

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

21

Gravely 053125

IDLER, FLAT .377X4.0X.96W POLY
(Superseded to 07320800)

$35.99

$

In Stock, Qty 19

0

22

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

23

Gravely 59203600

KIT, PUMP SEAL

Note: (One kit required for each pump)

$79.99

$

Usually ships in 4-12 days

0

24

Gravely 09274900

FAN, COOLING

$52.99

$

In Stock, Qty 6

0
