992032 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 26hp Kohler EFI (SN: 035000 & Above) Wiring Diagram Parts Diagram

Pro-Master 72" Zero-Turn Mower, 26hp Kohler EFI

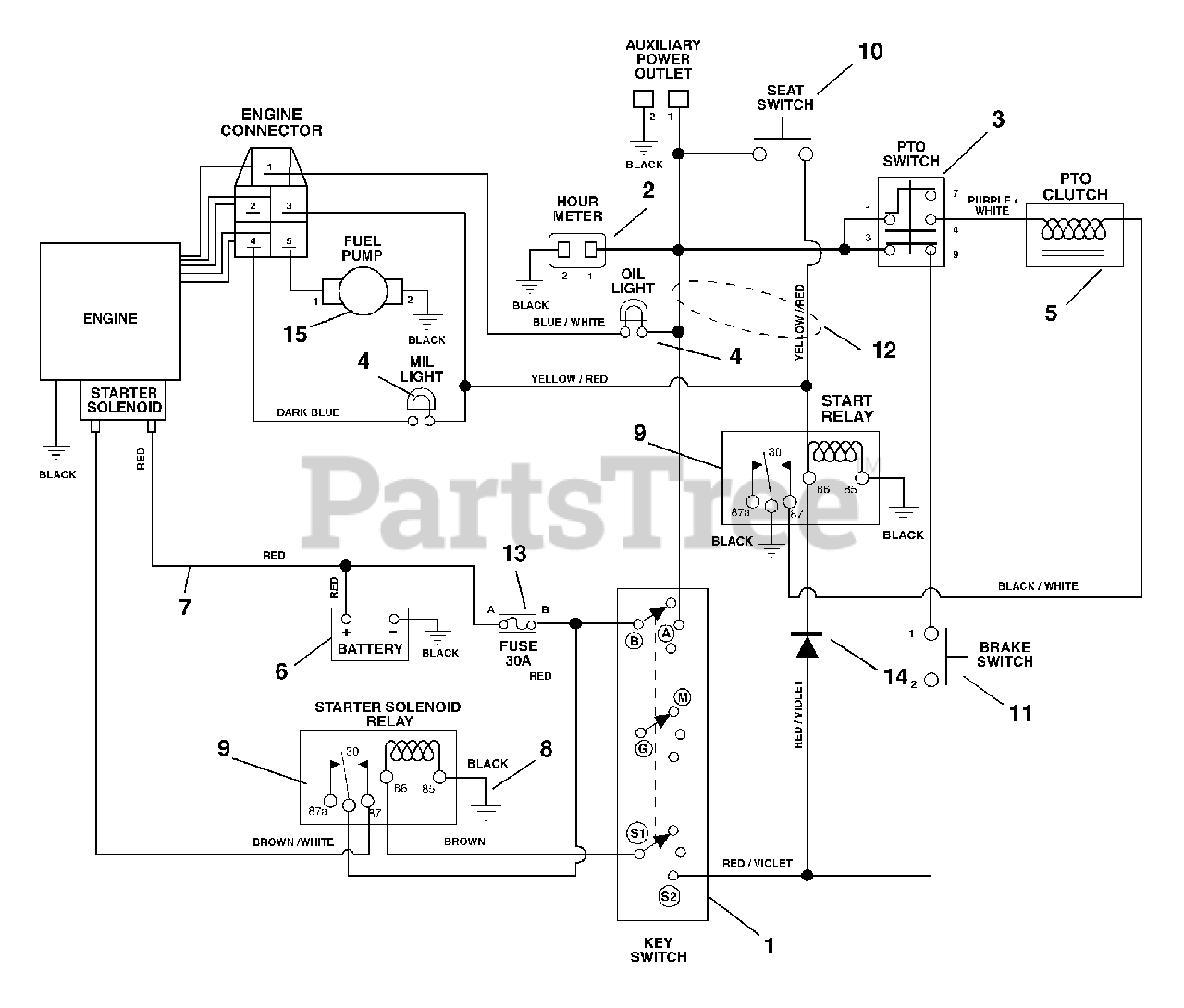

Wiring Diagram Parts Diagram

  • Title

1

Gravely 03602300

KEY SWITCH

$26.99

$

In Stock, Qty 15

0

2

Gravely 038256

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$25.99

$

In Stock, Qty 17

0

3

Gravely 01545600

SWITCH, CLUTCH

$27.99

$

In Stock, Qty 20+

0

4

Gravely 050673

LIGHT, INDICATOR (RED)
(Superseded to 05128700)

$7.99

$

In Stock, Qty 9

0

5

Gravely 09232700

ELECTRIC CLUTCH
(Superseded to 00389900)

$504.99

$

Usually ships in 4-12 days

0

6

Gravely 03621100

BATTERY W/ TUBE

$

$

Not available

7

Gravely 049101

CBL,BATTERY TO SOLENOID
(Superseded to 08987000)

$51.99

$

Usually ships in 4-12 days

0

8

Gravely 02518900

GROUND CABLE .25X13.00X.31
(Superseded to 03287100)

$17.99

$

In Stock, only 4 left!

0

9

Gravely 040216

RELAY,SEALED W/DIODE
(Superseded to 00432101)

Note: (Included with Harness)

$25.99

$

In Stock, Qty 20+

0

10

Gravely 045036

SEAT SWITCH
(Superseded to 03490500)

$16.99

$

In Stock, only 1 left!

0

11

Gravely 03657100

SWITCH- SINGLE POLE N.O.

$9.99

$

In Stock, Qty 18

0

12

Gravely 09276100

HARNESS, WIRING -EFI

$

$

Not available

13

Gravely 00524600

FUSE, 30 AMP.

Note: (Included with Harness)

$5.99

$

Usually ships in 4-12 days

0

14

Gravely 03081700

MOLDED DIODE PLUG 1 AMP

Note: (Included with Harness)

$29.99

$

In Stock, only 3 left!

0

15

Gravely 21536600

PUMP, EFI FUEL

$

$

Not available
