992036 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Kawasaki (SN: 001000 - 001499) Controls Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Kawasaki

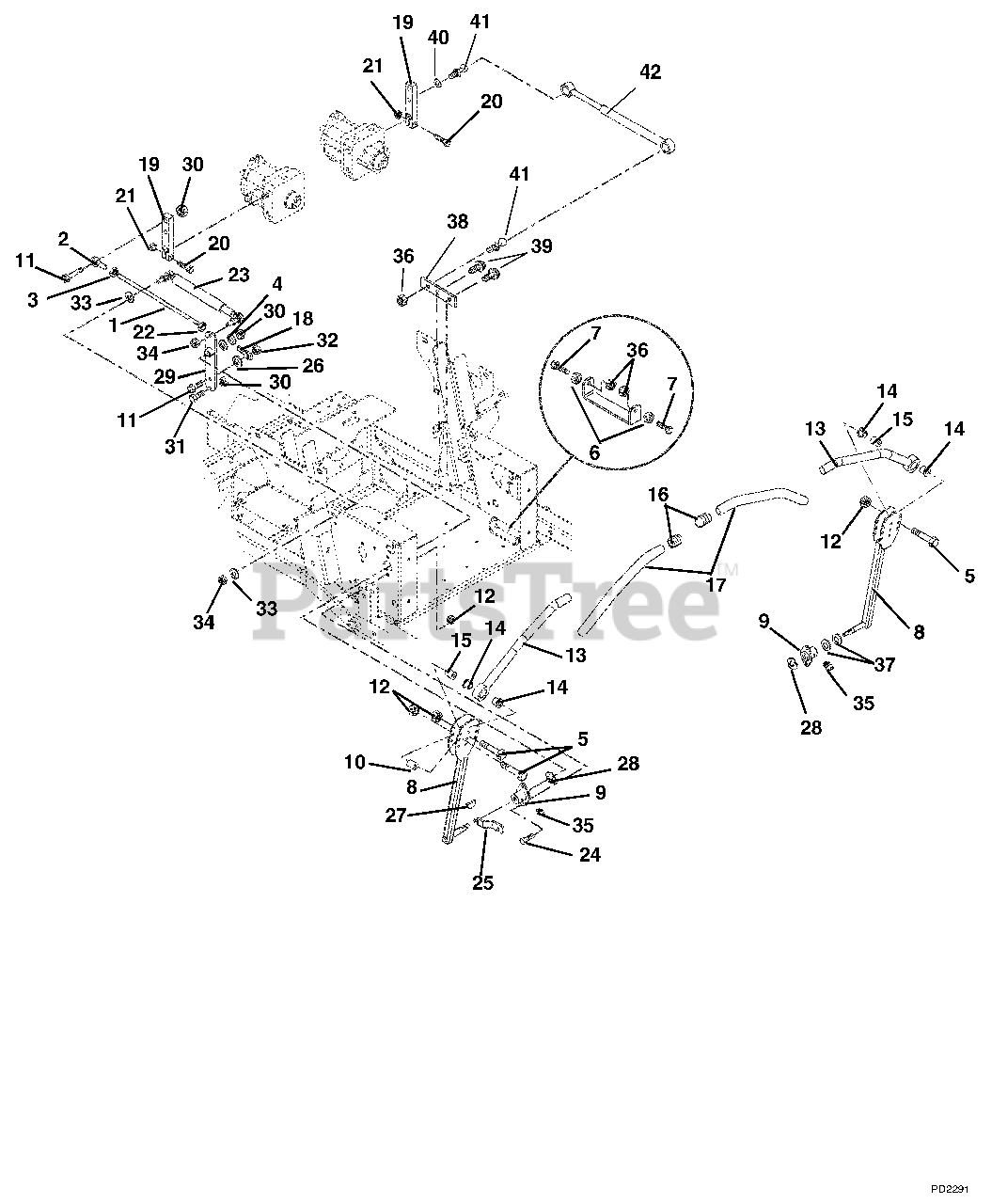

Controls Parts Diagram

  • Title

1

Gravely 03360901

ROD, TIE

$

$

Not available

2

Gravely 044753

ROD END, .38 RH
(Superseded to 03563100)

$17.99

$

In Stock, only 3 left!

0

3

Gravely 06534700

NUT-JAM .375-24 YWZC
(Superseded to 06500739)

$2.49

$

In Stock, only 3 left!

0

4

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 10

0

6

Gravely 06536100

NUT- JAM .312-18 YWZC
(Superseded to 06500909)

$1.49

$

In Stock, Qty 17

0

7

Gravely 05921500

BLT-HEX .31-18X1.50 GR2 YWZC

$

$

Not available

8

Gravely 09268851

WMT, CONTROL ARM

$277.99

$

Usually ships in 4-12 days

0

9

Gravely 05534100

BUSHING, FLANGED (WITH HOLE)

$47.99

$

In Stock, only 4 left!

0

10

Gravely 09235700

ECCENTRIC

$5.49

$

In Stock, only 2 left!

0

11

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

13

Gravely 09235500

HANDLE WLDMT LH

$105.99

$

In Stock, Qty 6

0

Gravely 09235600

WLDMT, RH HANDLE

$94.99

$

In Stock, only 3 left!

0

14

Gravely 035172

BSHG-FLG .762X1.48X.44 NYL
(Superseded to 05525200)

$3.99

$

In Stock, only 4 left!

0

15

Gravely 09235400

SPACER .328 X .76 X 1.01

$21.99

$

In Stock, only 1 left!

0

16

Gravely 09211400

CAPLUG - HANDLEBAR

$3.49

$

In Stock, Qty 20+

0

17

Gravely 09246800

GRIP - HANDLEBAR

$13.99

$

In Stock, Qty 20+

0

18

Gravely 03668700

END, ROD-.38 LH

$16.99

$

Usually ships in 4-12 days

0

19

Gravely 09264100

ARM, PUMP ACTUATING

$

$

Not available

20

Gravely 05947400

BLT-HEX .25-20X1.25 GR5 YWZC
(Superseded to 05901738)

$2.49

$

In Stock, only 2 left!

0

21

Gravely 06531000

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

22

Gravely 06537400

NUT-JAM .375-24 LH YWZC
(Superseded to 06500924)

$3.99

$

Usually ships in 4-12 days

0

23

Gravely 09274600

DAMPENER, SELF-CENTERING

$

$

Not available

24

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

25

Gravely 09267400

FOOTBOARD, LOCK-UP

$

$

Not available

26

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06608400

KEY-WDRF .13X.63 HRD#5

$2.99

$

In Stock, only 1 left!

0

28

Gravely 03704900

WAVE WASHER .640X.875X.125FH

$2.49

$

Usually ships in 4-12 days

0

29

Gravely 09267500

WMT, PIVOT ARM

$

$

Not available

30

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

31

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 20+

0

32

Gravely 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.99

$

Usually ships in 4-12 days

0

33

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

34

Gravely 06541700

NUT-LK-NYL M8-1.25 YWZC
(Superseded to 06500817)

$1.99

$

Usually ships in 4-12 days

0

35

Gravely 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

36

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

37

Gravely 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

38

Gravely 09280651

BRACKET, DAMPER MTG - BLACK

$

$

Not available

39

Gravely 07414400

SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$1.99

$

In Stock, Qty 14

0

40

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

41

Gravely 03652200

STUD- BALL

$3.99

$

In Stock, Qty 13

0

42

Gravely 09273400

DAMPER, CONTROL

$73.99

$

In Stock, Qty 19

0
