992036 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Kawasaki (SN: 001000 - 001499) Electrical System Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Kawasaki

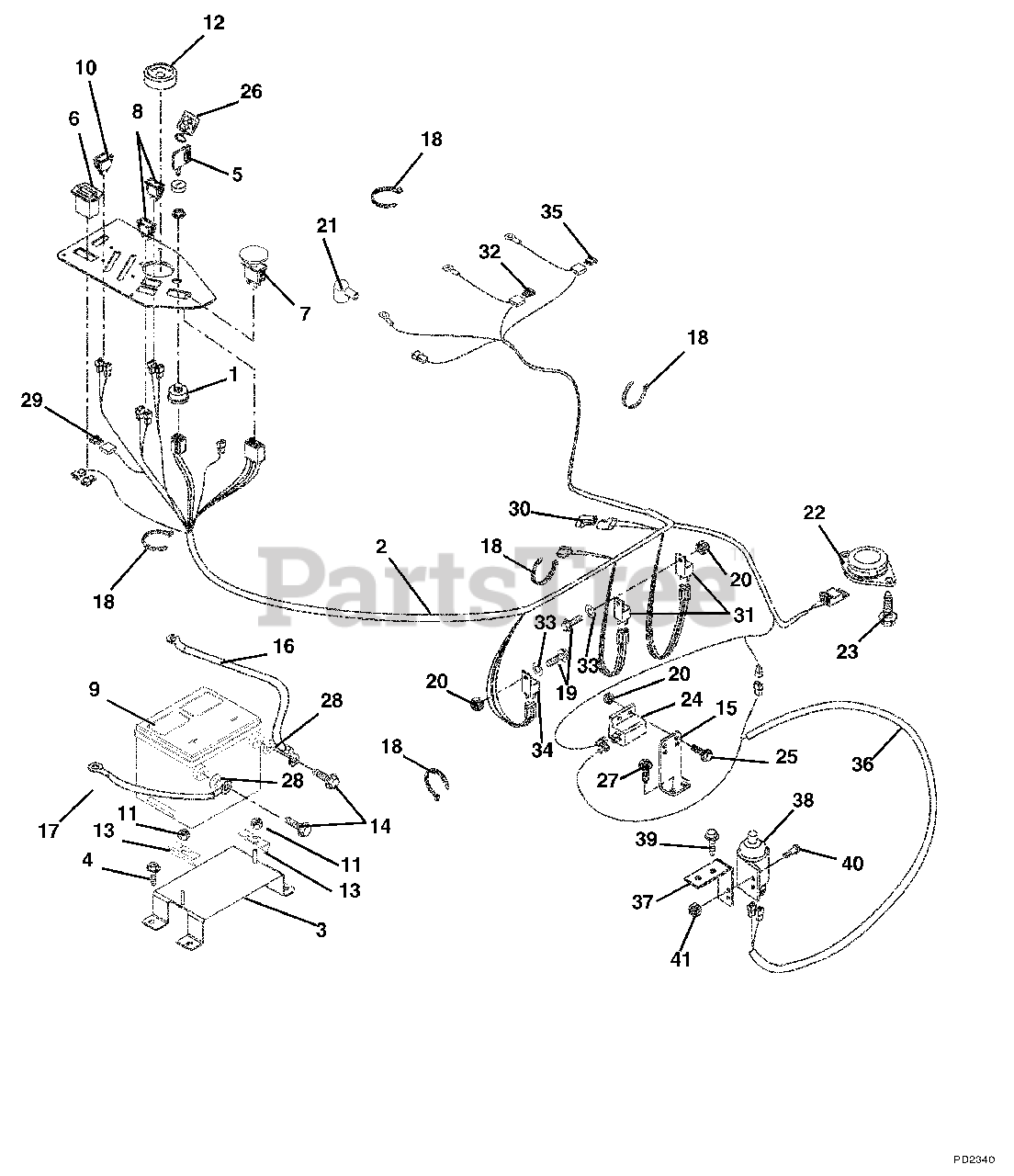

Electrical System Parts Diagram

  • Title

1

Gravely 09089700

SWITCH, IGNITION
(Superseded to 04331700)

Note: (036, 037)

$44.99

$

In Stock, Qty 20+

0

Gravely 09056700

SWITCH, IGNITION (DIESEL)
(Superseded to 00168400)

Note: (038, 039, 309)

$58.99

$

In Stock, only 4 left!

0

2

Gravely 09274200

HARNESS, WIRE (GAS)

Note: (Gas) (036, 037)

$

$

Not available

Gravely 09266900

HARNESS, WIRING (DIESEL)

Note: (Diesel) (038, 039, 309)

$

$

Not available

3

Gravely 09266551

WMT, BATTERY SUPPORT

$

$

Not available

4

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 09287000

KEY, W/ SHIELD

$17.99

$

In Stock, Qty 20+

0

Gravely 21510400

IGNITION KEY SET

$10.99

$

In Stock, only 2 left!

0

6

Gravely 09418900

HOUR METER, QUARTZ
(Superseded to 09497400)

$25.99

$

In Stock, Qty 17

0

7

Gravely 01545600

SWITCH, CLUTCH

$27.99

$

In Stock, Qty 20+

0

8

Gravely 050673

LIGHT, INDICATOR (RED)
(Superseded to 05128700)

$7.99

$

In Stock, Qty 9

0

9

Gravely 00525500

BATTERY, GROUP 70 450 CCA 35 A

$

$

Not available

10

Gravely 08973300

SWITCH, 2 POLE/ROCKER

$7.49

$

In Stock, Qty 6

0

11

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

12

Gravely 09080200

GAUGE, TEMPERATURE

$102.99

$

Usually ships in 4-12 days

0

13

Gravely 09266600

BRKT, BATTERY HOLD-DOWN

$18.99

$

Usually ships in 4-12 days

0

14

Gravely 00526400

BATT TERMINAL SCREW

$

$

Not available

15

Gravely 09275851

MOUNT, SAFETY SWITCH

$22.99

$

Usually ships in 4-12 days

0

16

Gravely 09411100

CABLE, POS BATT 4 GA. X 41.00

Note: (036, 037)

$

$

Not available

Gravely 09412100

CABLE, POS BATT 4 GA X 45

Note: (038, 039, 309)

$38.99

$

Usually ships in 4-12 days

0

17

Gravely 09411000

CABLE, NEG BATT 4 GA.X 43 IN.

Note: (036, 037)

$

$

Not available

Gravely 09278100

CABLE, NEGATIVE BATTERY 49.00

Note: (038, 039, 309)

$38.99

$

Usually ships in 4-12 days

0

18

Gravely 036313

CABLE TIE LG 5-1/2
(Superseded to 07517300)

$1.49

$

Usually ships in 4-12 days

0

19

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

Note: (036, 037)

$2.49

$

In Stock, Qty 11

0

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

Note: (038, 039, 309)

$2.49

$

In Stock, Qty 11

0

20

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

Note: (036, 037)

$0.99

$

In Stock, Qty 20+

0

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

Note: (038, 039, 309)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 00525800

BOOT, BATTERY TERMINAL-RED

$8.49

$

Usually ships in 4-12 days

0

22

Gravely 045036

SEAT SWITCH
(Superseded to 03490500)

$16.99

$

In Stock, only 1 left!

0

23

Gravely 07411900

SCR-TAP 12-24X.50 HWH TR YWZC
(Superseded to 07400136)

$2.49

$

In Stock, Qty 12

0

24

Gravely 03657100

SWITCH- SINGLE POLE N.O.

$9.99

$

In Stock, Qty 18

0

25

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 11

0

26

Gravely 045842

KEY CHAIN
(Superseded to 03490000)

$

$

Not available

27

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.99

$

In Stock, Qty 20+

0

29

Gravely 00524800

FUSE, 7.5 AMP

$

$

Not available

30

Gravely 03081700

MOLDED DIODE PLUG 1 AMP

Note: (Included with Harness)

$29.99

$

In Stock, only 3 left!

0

31

Gravely 040216

RELAY,SEALED W/DIODE
(Superseded to 00432101)

Note: (Included with Harness)

$25.99

$

In Stock, Qty 20+

0

32

Gravely 00524600

FUSE, 30 AMP.

Note: (Included with Harness)

$5.99

$

Usually ships in 4-12 days

0

33

Gravely 06442300

WSHR-FL-STL.250X.56X.049 YWZC

Note: (038, 039, 309)

$2.49

$

Usually ships in 4-12 days

0

34

Pre-Heat Timer

Note: (Included with Engine) (038, 039, 309)

$

$

Not available

35

Gravely 08961800

FUSE,25 AMP

Note: (Included with Harness) (036, 037)

$3.99

$

In Stock, Qty 12

0

Gravely 09280000

FUSE, 40 AMP ATC TYPE

Note: (Included with Harness) (038, 039, 309)

$

$

Not available

36

Gravely 09281000

HARNESS, WIRE ADAPTER CE

Note: (309)

$54.99

$

Usually ships in 4-12 days

0

37

Gravely 09251253

MOUNT - SWITCH

Note: (309)

$40.99

$

Usually ships in 4-12 days

0

38

Gravely 09251900

SWITCH-SINGLE POLE N.O.W/COVER

Note: (N.O.) with Cover (309)

$23.99

$

In Stock, only 1 left!

0

39

Gravely 07411500

SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

Note: (309)

$1.99

$

In Stock, Qty 20+

0

40

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

Note: (309)

$2.49

$

In Stock, Qty 11

0

41

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

Note: (309)

$0.99

$

In Stock, Qty 20+

0
