992036 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Kawasaki (SN: 001000 - 001499) Engine - Gas Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Kawasaki

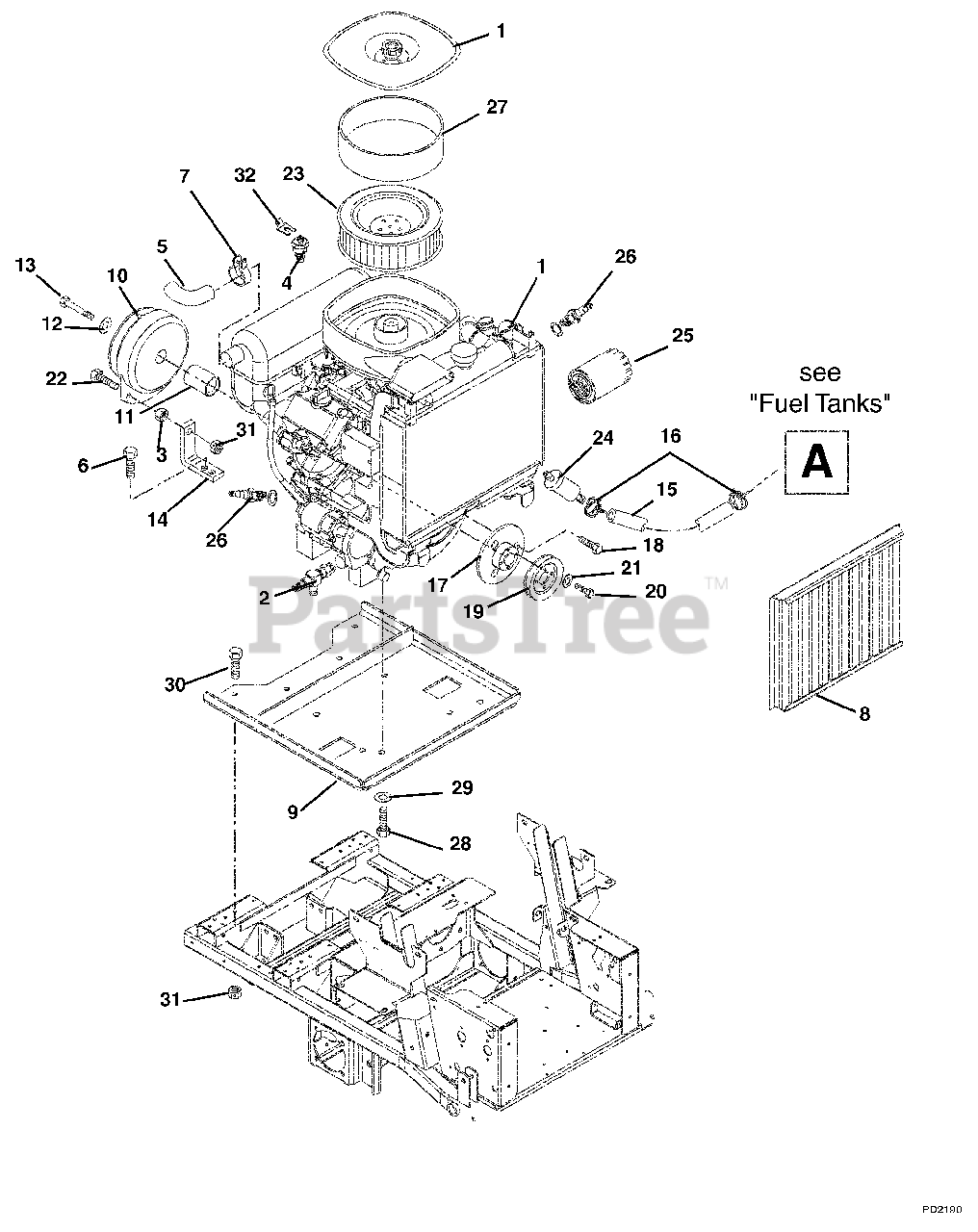

Engine - Gas Parts Diagram

  • Title

1

Gravely 08267200

ENGINE, 27HP GAS KAWASAKI

$

$

Not available

2

Gravely 07067400

DRAIN, OIL

$56.99

$

Usually ships in 4-12 days

0

3

Gravely 06536100

NUT- JAM .312-18 YWZC
(Superseded to 06500909)

$1.49

$

In Stock, Qty 17

0

4

Gravely 09058800

TEMPERATURE SENDER

$111.99

$

Usually ships in 4-12 days

0

5

Gravely 09268500

ELBOW

$59.99

$

Usually ships in 4-12 days

0

6

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 01551500

CLAMP, MUFFLER ASSY B&S#496801

$

$

Not available

8

Gravely 09268700

SCREEN (GAS)

$

$

Not available

9

Gravely 09264951

WMT, ENGINE PLATE (GAS)

$54.99

$

Usually ships in 4-12 days

0

10

Gravely 09266700

CLUTCH, ELECTRIC (WARNER)
(Superseded to 00389900)

$504.99

$

Usually ships in 4-12 days

0

11

Gravely 09263800

SPACER, CLUTCH

$

$

Not available

12

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

13

Gravely 05968300

BLT-HEX M10 X 1.5X60 8.8 YWZC

$4.99

$

Usually ships in 4-12 days

0

14

Gravely 09264651

BRACKET, CLUTCH STABILIZER

$5.99

$

Usually ships in 4-12 days

0

15

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06939100

CLAMP-HOSE WIRE .490/.510X.116

$3.99

$

In Stock, Qty 20+

0

17

Gravely 09264400

ADAPTER, SHEAVE (KAWASAKI)

Note: (Kawasaki)

$

$

Not available

18

Gravely 05978700

BLT, FSCHS M8-1.25X25

$

$

Not available

19

Gravely 07328100

SHEAVE, POLY V 1.000 X 3.25

$

$

Not available

20

Gravely 05947900

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

21

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

22

Gravely 05952400

BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.99

$

In Stock, Qty 15

0

23

Gravely 21538600

ELEMENT, AIR CLEANER

$78.99

$

Usually ships in 4-12 days

0

24

Gravely 21527800

FILTER, FUEL

$30.99

$

Usually ships in 4-12 days

0

25

Gravely 21380000

FILTER-OIL/14HP KAW
(Superseded to 21535800)

$18.99

$

Usually ships in 2-5 days

0

26

Gravely 21538500

PLUG, SPARK

$6.49

$

In Stock, Qty 20+

0

27

Gravely 21538700

ELEMENT, PRE-CLEANER

$17.99

$

In Stock, only 1 left!

0

28

Gravely 05943000

BLT-HEX M10 X 1.5X25 YWZC

$2.99

$

Usually ships in 4-12 days

0

29

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

30

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

31

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

32

Gravely 03005000

MALE DISCONNECT ADAPTER

$

$

Not available
