992036 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Kawasaki (SN: 001000 - 001499) Hood And Bumper Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Kawasaki

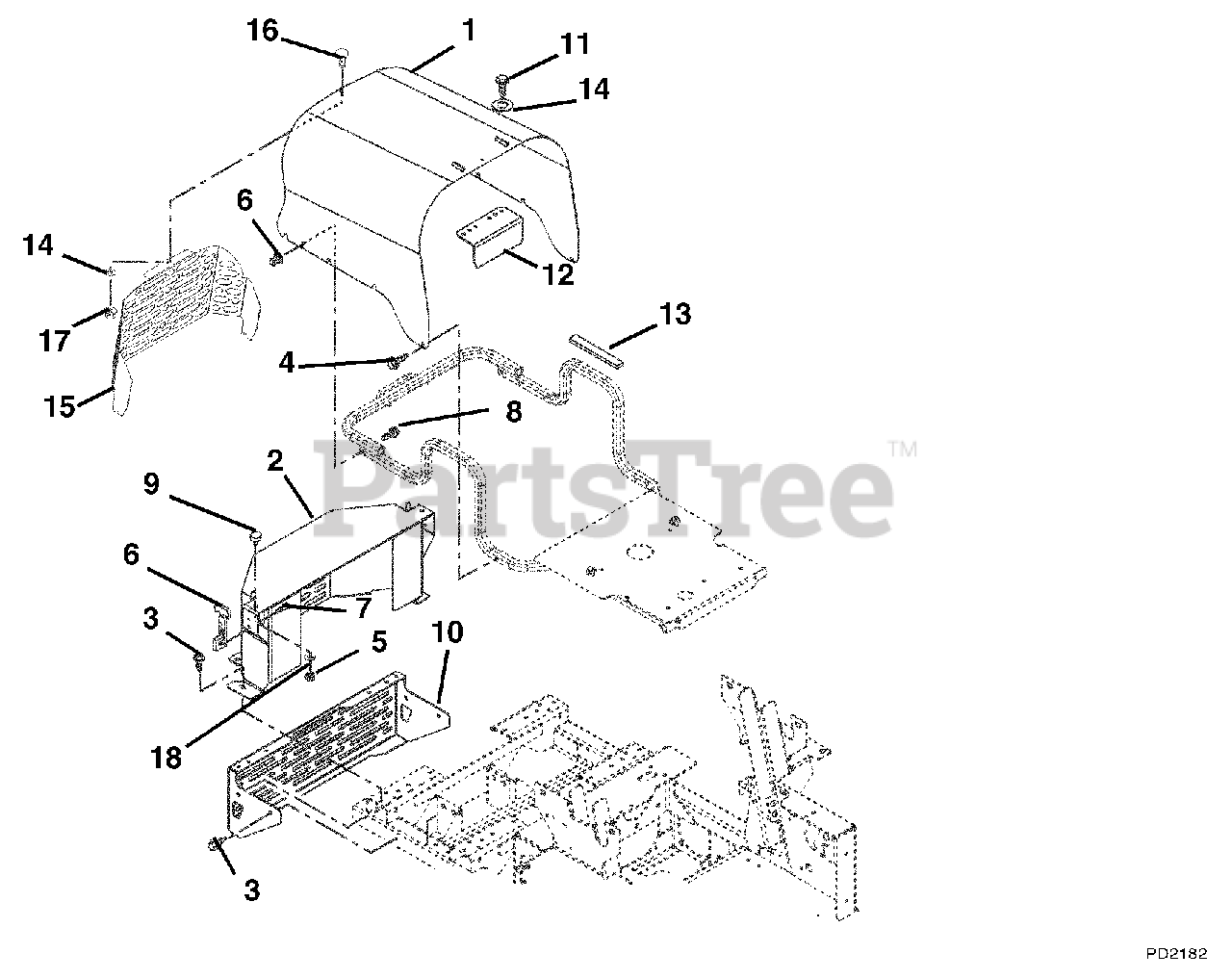

Hood And Bumper Parts Diagram

  • Title

1

Gravely 09278953

HOOD, GAS

Note: (038, 039)

$74.99

$

Usually ships in 4-12 days

0

Gravely 09278853

L/C HOOD - RED

Note: (036, 037, 309)

$435.99

$

Usually ships in 4-12 days

0

2

Gravely 09273551

WMT, BELT GUARD

Note: (036, 037)

$53.99

$

Usually ships in 4-12 days

0

Gravely 09266051

WMT, BELT GUARD (DIESEL)

Note: (038, 039, 309)

$250.99

$

Usually ships in 4-12 days

0

3

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

6

Gravely 09079500

LATCH, RUBBER

$35.99

$

In Stock, Qty 14

0

7

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06118200

SCR-MCH 10-24X1.50 HWH YWZC

$2.99

$

Usually ships in 4-12 days

0

9

Gravely 07533600

BUMPER, RUBBER

$12.99

$

In Stock, Qty 5

0

10

Gravely 09269451

WMT, BUMPER

$102.99

$

Usually ships in 4-12 days

0

11

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 09277400

COVER, RAD

$

$

Not available

13

Gravely 00932300

VHB TAPE 4941F

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 09281151

L/C HOOD GUARD - BLACK

Note: (038, 039, 309)

$271.99

$

Usually ships in 4-12 days

0

16

Gravely 06220600

BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

Note: (038, 039, 309)

$1.49

$

In Stock, Qty 11

0

17

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

Note: (038, 039, 309)

$1.49

$

In Stock, Qty 15

0

18

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0
