992038 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu (SN: 000101 - 000999) Lift Valve And Cylinder Parts Diagram

Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu

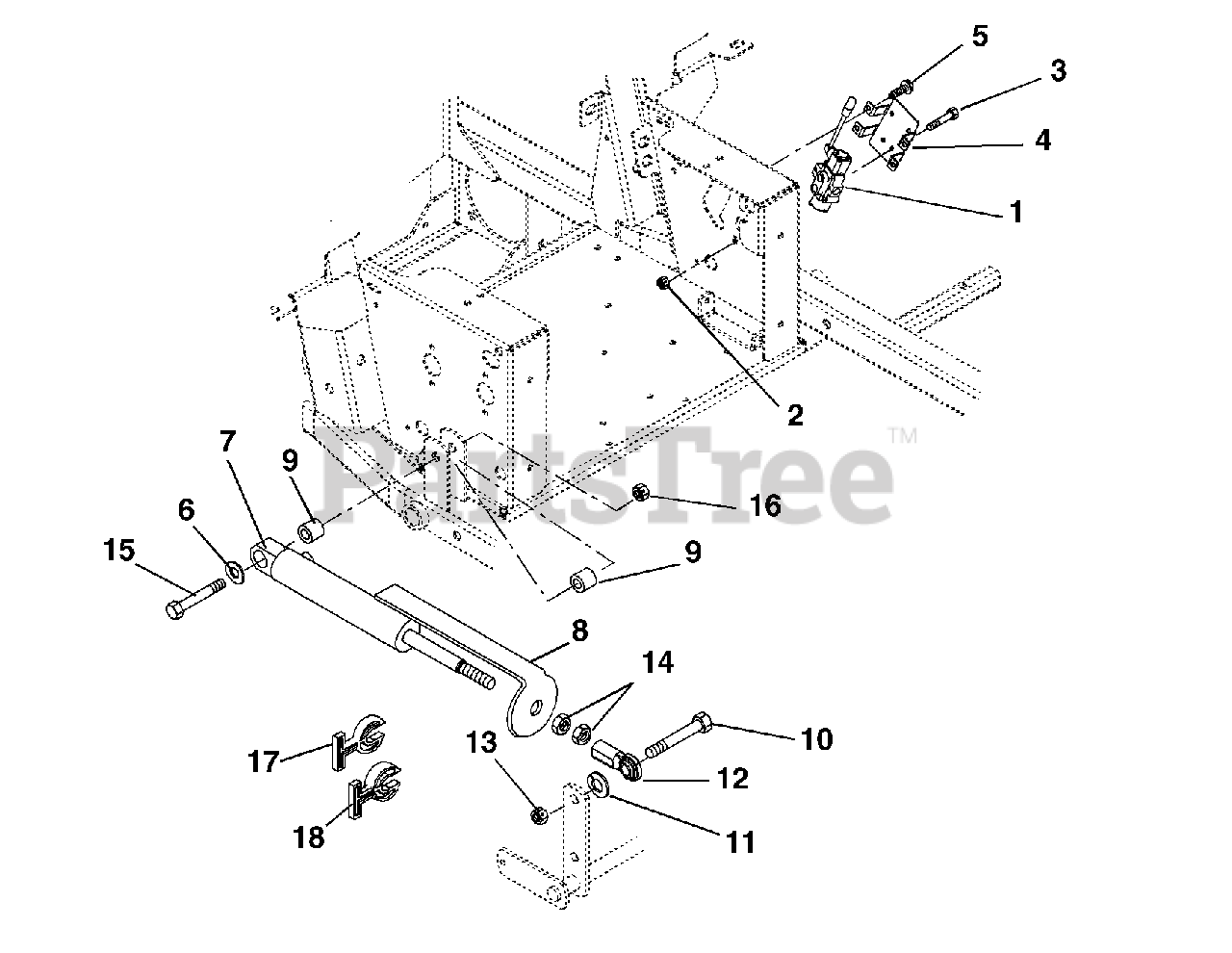

Lift Valve And Cylinder Parts Diagram

  • Title

1

Gravely 09265100

VALVE, HYDRAULIC-BONDIOLI
(Superseded to 03791700)

$

$

Not available

2

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

3

Gravely 05963700

BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$1.99

$

In Stock, Qty 12

0

4

Gravely 09269551

BRKT, VALVE MOUNTING
(Superseded to 03791851)

$27.99

$

Usually ships in 4-12 days

0

5

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$6.49

$

In Stock, Qty 20+

0

7

Gravely 09245100

CYLINDER - HYDRAULIC LIFT
(Superseded to 04864700)

$537.99

$

In Stock, only 1 left!

0

8

Gravely 09255900

STRAP, HEIGHT OF CUT INDICATOR

$23.99

$

Usually ships in 4-12 days

0

9

Gravely 09215200

BUSHING, .516X1.000X1.050 LG

$36.99

$

Usually ships in 4-12 days

0

10

Gravely 05930700

BLT-HEX .62-11X2.25 YWZC GR8

$3.99

$

Usually ships in 4-12 days

0

11

Gravely 06309500

WSHR-LK .62X.156 REG YWZC

$2.49

$

In Stock, only 2 left!

0

12

Gravely 09221600

ROD END, 5/8 RH - FEMALE

$26.99

$

Usually ships in 4-12 days

0

13

Gravely 06535300

NUT-LK-CTR .62-11 YWZC

$2.99

$

In Stock, only 1 left!

0

14

Gravely 06539600

NUT-JAM .625-18 YWZC

$4.99

$

Usually ships in 4-12 days

0

15

Gravely 09275700

POST, CYLINDER STOP

$

$

Not available

16

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

17

Gravely 09212200

STOP, CYLINDER .34 THK

$11.99

$

In Stock, Qty 15

0

18

Gravely 09212300

STOP, CYLINDER .680 THK

$11.99

$

In Stock, Qty 17

0
