992038 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu (SN: 000101 - 000999) Motors And Wheels Parts Diagram

Pro-Master 60" Zero-Turn Mower, 31hp Daihatsu

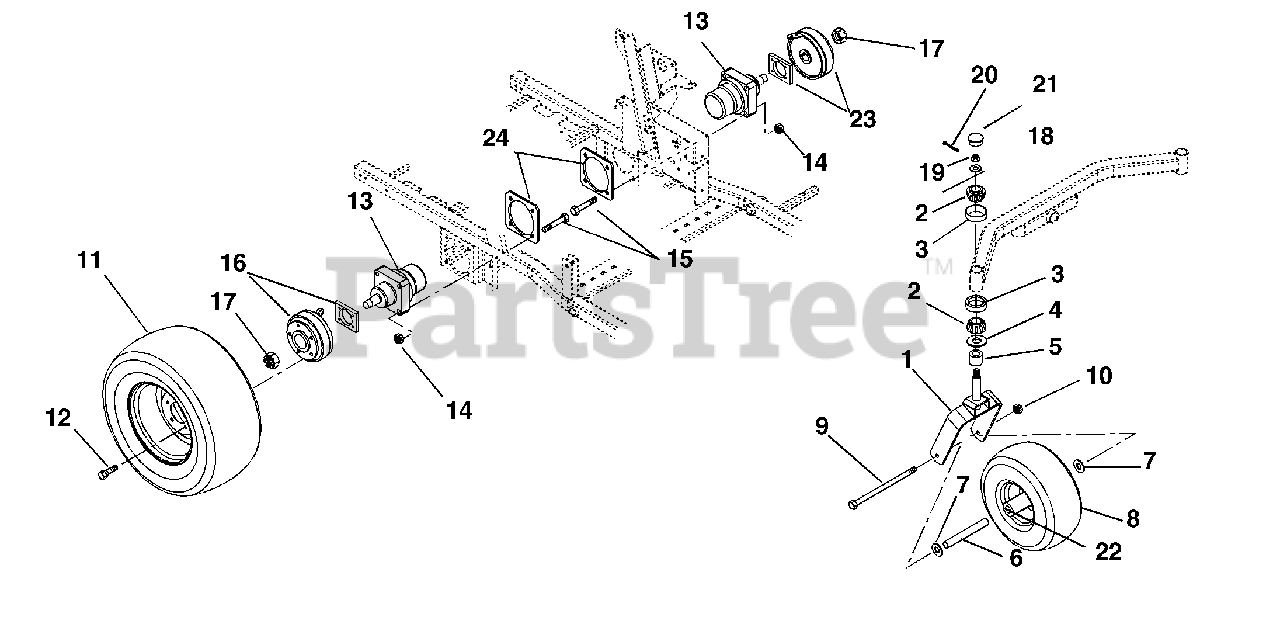

Motors And Wheels Parts Diagram

  • Title

1

Gravely 09263653

FORK-FRONT
(Superseded to 59208500)

$184.99

$

Usually ships in 4-12 days

0

2

Gravely 69000300

BRG, CONE W/ GREASE
(Superseded to 05406900)

$20.99

$

In Stock, Qty 20+

0

3

Gravely 05407000

BRG-CUP1.980X.420

$18.99

$

In Stock, Qty 20+

0

4

Gravely 00531400

BEARING SEAL 1.5 X 2 X .18

$10.99

$

In Stock, Qty 20+

0

5

Gravely 00531500

SPACER 1.005X1.5075X.375

$8.49

$

In Stock, Qty 13

0

6

Gravely 09231800

SPACER - WHEEL

$50.99

$

Usually ships in 4-12 days

0

7

Gravely 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$6.49

$

In Stock, Qty 20+

0

8

Gravely 07147800

WHEEL/TIRE ASM
(Superseded to 59219000)

$197.99

$

In Stock, only 4 left!

0

Gravely 07147100

TIRE, 15X6-6
(Superseded to 07100905)

$76.99

$

In Stock, only 2 left!

0

9

Gravely 05961200

BLT-HEX .50-13X9.00 GR5 YWZC
(Superseded to 05901930)

$11.99

$

In Stock, Qty 20+

0

10

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

11

Gravely 07157500

TIRE/WHEEL ASSY 24X12-12
(Superseded to 59210100)

$351.99

$

Usually ships in 4-12 days

0

Gravely 07158100

TIRE, TURFMASTER 24X12-12
(Superseded to 07101040)

$300.99

$

Usually ships in 4-12 days

0

12

Gravely 07014600

BLT-LUG .50-20X.75X1.62 PL
(Superseded to 07000143)

$3.99

$

In Stock, Qty 20+

0

13

Gravely 09263100

MOTOR, PARKER WHEEL

Note: (Includes 17)

$963.99

$

Usually ships in 4-12 days

0

14

Gravely 06540600

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

15

Gravely 05979300

SCR-SKH .50-13 X 2.75

$

$

Not available

16

Gravely 09419800

BRAKE, RH PARK (WOODS LH)
(Superseded to 58904200)

Note: (On Left Hand of Unit)

$896.99

$

Usually ships in 4-12 days

0

17

Gravely 06541900

NUT-LK-JAM-PTCH 1.00-20

Note: (Included with 13)

$33.99

$

Usually ships in 4-12 days

0

18

Gravely 06441500

WSHR-FL-STL.755X1.375X.062YWZC
(Superseded to 06401016)

$3.99

$

In Stock, Qty 20+

0

19

Gravely 00595500

NUT, SLOTTED .75-16

$3.99

$

In Stock, Qty 6

0

20

Gravely 06712300

PIN-CTR .16X1.00 EXTPRSQCT YZ

$2.49

$

In Stock, Qty 12

0

21

Gravely 20655400

CAP,DUST

$10.99

$

In Stock, Qty 20+

0

22

Gravely 05435700

BRG, 25MM ID X 52MM OD X 15MM

$25.99

$

In Stock, Qty 20+

0

23

Gravely 09419700

BRAKE, LH PARK (WOODS RH)
(Superseded to 58904200)

Note: (On Right Hand of Unit)

$896.99

$

Usually ships in 4-12 days

0

24

Gravely 09278551

PLATE, MOTOR SUPPORT (BLACK)

Note: (Black)

$

$

Not available
