992040 (2250) - Ariens Zoom 50" Zero-Turn Mower, 22hp Briggs & Stratton (SN: 031000 & Above) Deck Lift Parts Diagram

Zoom 50" Zero-Turn Mower, 22hp Briggs & Stratton

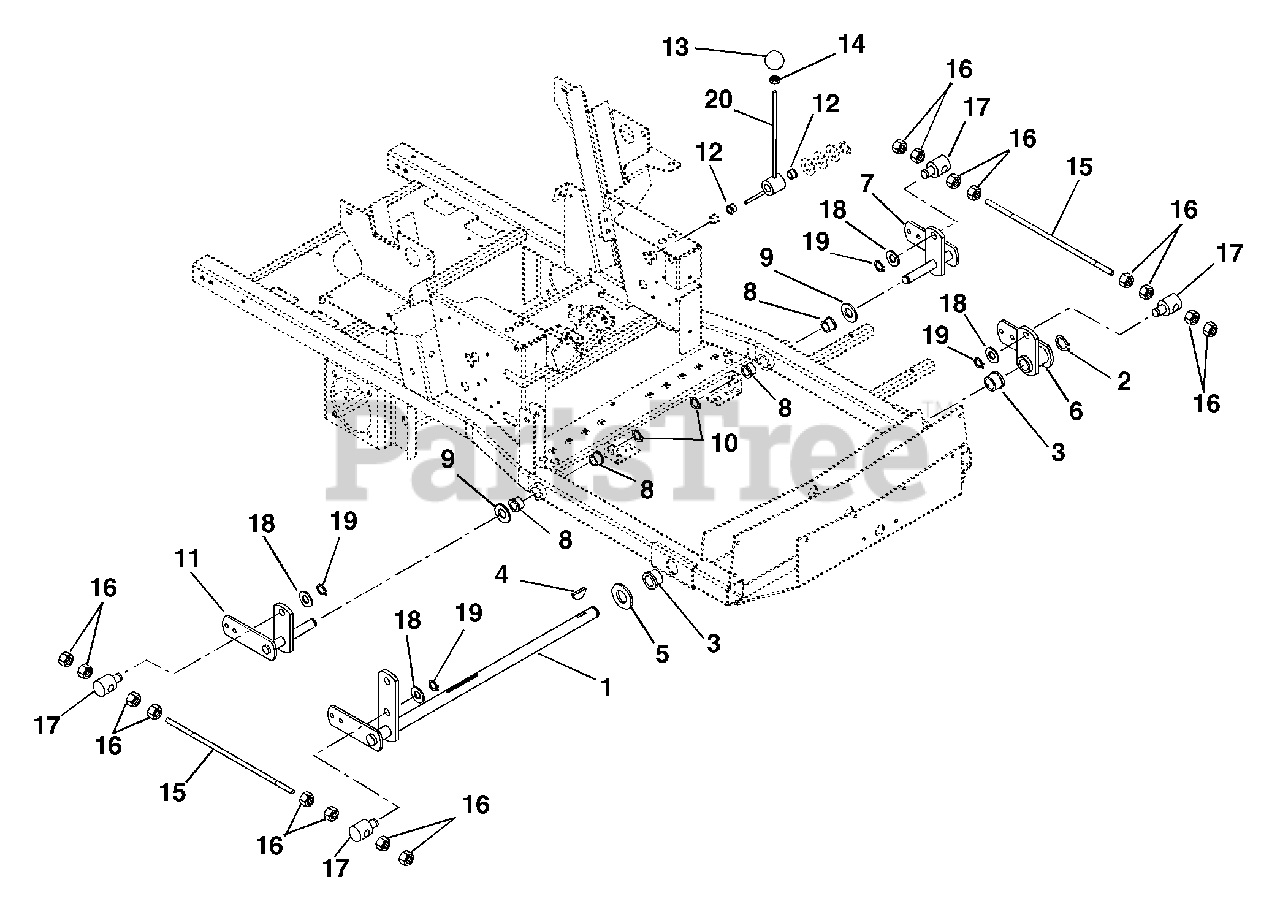

Deck Lift Parts Diagram

  • Title

1

Ariens 04910700

LIFT, MOWER

$

$

Not available

2

Ariens 05707300

RG-RTNG-EXT 1.00X.078

$2.99

$

Usually ships in 4-12 days

0

3

Ariens 05520100

BSHG-FLG1.020X1.385X.75X1.75NY

$10.99

$

In Stock, Qty 20+

0

4

Ariens 06608900

KEY-WDRF .25X1.00 HRD #15

$3.99

$

In Stock, Qty 20+

0

5

Ariens 06428500

WSHR-FL-STL 1.063X2.00X.134

$2.99

$

Usually ships in 4-12 days

0

6

Ariens 09231700

WLDM'T,LIFT ARM (FRT)

$

$

Not available

7

Ariens 09231600

WLDM'T,LIFT ARM SHAFT (L.H.)

$

$

Not available

8

Ariens 05518400

BSHG-FLG .762X1.0X.580X1.48 NY

$4.99

$

In Stock, Qty 20+

0

9

Ariens 06413400

WSHR-HDND-THRST .758X1.23X.031

$3.49

$

In Stock, only 2 left!

0

10

Ariens 05714600

RG-RTNG-EXT .689X.078

$2.49

$

In Stock, Qty 5

0

11

Ariens 09231500

WLDM'T,LIFT ARM SHAFT (R.H.)

$

$

Not available

12

Ariens 05517400

BSHG-FLG .630X1.000X.625 NY

$6.99

$

In Stock, only 2 left!

0

13

Ariens 07505200

KNOB-STEERING LOCK

$20.99

$

Usually ships in 4-12 days

0

14

Ariens 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 12

0

15

Ariens 09232800

ROD - LIFT ASSIST

$36.99

$

Usually ships in 4-12 days

0

16

Ariens 06529300

NUT-JAM .50-13 YWZC
(Superseded to 06500911)

$1.49

$

In Stock, Qty 17

0

17

Ariens 09212700

PIVOT, MWR LIFT

$

$

Not available

18

Ariens 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 05709200

RG-RTNG-EXT .625X.050

$2.49

$

Usually ships in 4-12 days

0

20

Ariens 09230400

LEVER - DECK LIFT

$

$

Not available
