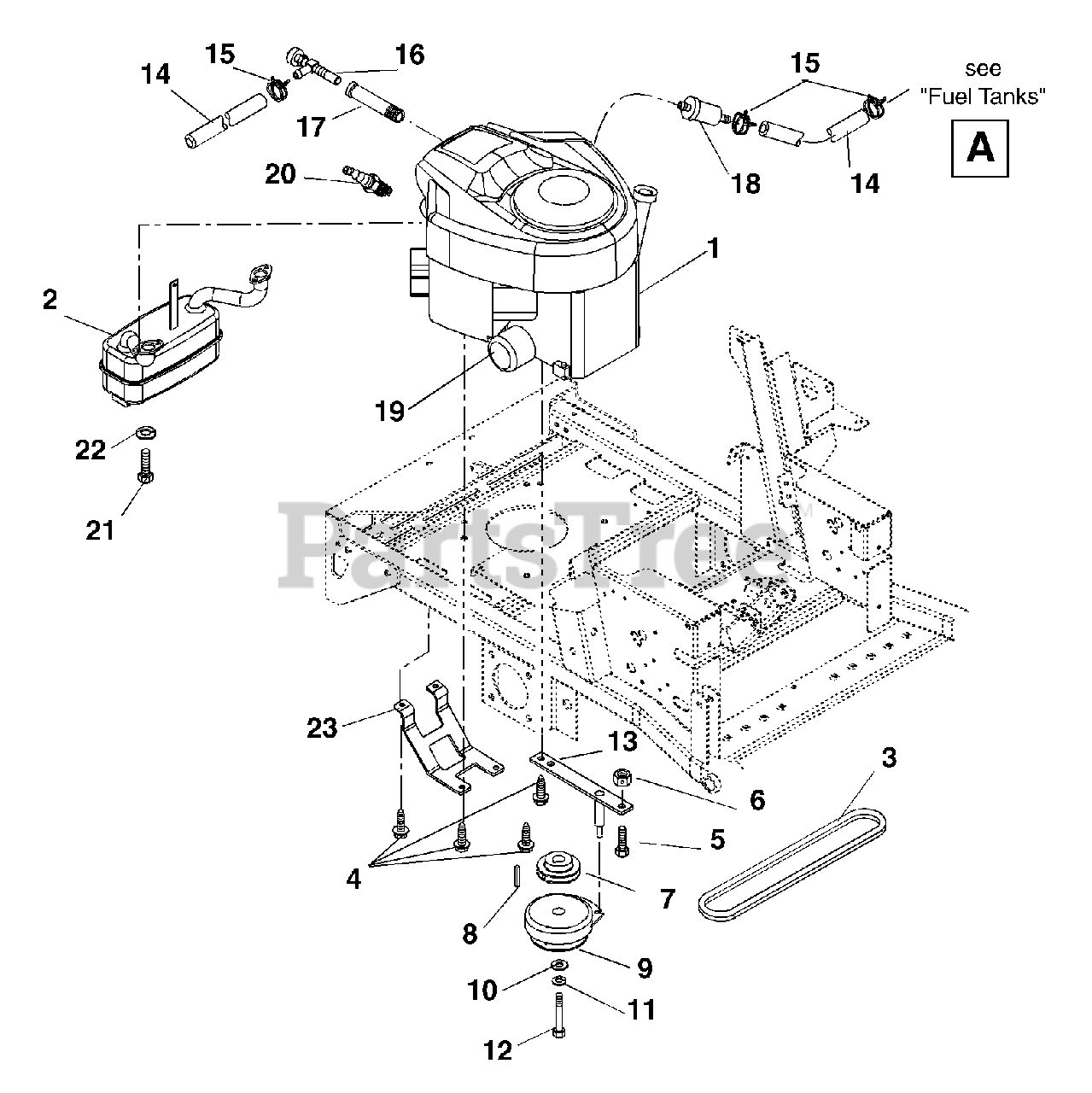

992040 (2250) - Ariens Zoom 50" Zero-Turn Mower, 22hp Briggs & Stratton (SN: 031000 & Above) Engine And Clutch Parts Diagram

Zoom 50" Zero-Turn Mower, 22hp Briggs & Stratton

Engine And Clutch Parts Diagram

  • Title

1

Ariens 08262500

ENGINE, 20HP B&S INTEK 6-PIN

$

$

Not available

2

Ariens 01557000

MUFFLER ASSEMBLY

$171.99

$

Usually ships in 4-12 days

0

3

Ariens 07239200

V-BELT, A-RAW EDGE

$44.99

$

Usually ships in 4-12 days

0

4

Ariens 07414700

@SCR-TAP .38-16X1.25 HWH TR YZ
(Superseded to 07400128)

$3.49

$

In Stock, Qty 7

0

5

Ariens 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 5

0

6

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

7

Ariens 09113600

SHEAVE

$118.99

$

Usually ships in 4-12 days

0

8

Ariens 06602200

KEY-SQ .25X1.0X.25 SAE 8630

$3.99

$

In Stock, Qty 17

0

9

Ariens 03357900

CLUTCH, ELECTRIC - WARNER

$501.99

$

In Stock, only 1 left!

0

10

Ariens 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$6.49

$

In Stock, Qty 20+

0

11

Ariens 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, only 4 left!

0

12

Ariens 05965700

BLT-HEX .44-20X3.00 GR5 YWZC
(Superseded to 05900037)

$7.49

$

In Stock, Qty 18

0

13

Ariens 04907200

ANCHOR-CLUTCH

$75.99

$

In Stock, only 4 left!

0

14

Ariens 00924300

GAS LINE-BULK 1/4" I.D.
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06939100

CLAMP-HOSE WIRE .490/.510X.116

$3.99

$

In Stock, Qty 7

0

16

Ariens 03493200

COCK, OIL DRAIN
(Superseded to 00429000)

$40.99

$

Usually ships in 4-12 days

0

17

Ariens 03493100

ADAPTER, OIL DRAIN

$6.49

$

Usually ships in 4-12 days

0

18

Ariens 21531800

FILTER, FUEL
(Superseded to 00682500)

$15.99

$

Usually ships in 4-12 days

0

19

Ariens 21530700

FILTER, OIL 20HP B&S VANGUARD

$12.99

$

In Stock, Qty 20+

0

20

Ariens 21534100

PLUG, SPARK

$3.99

$

Usually ships in 4-12 days

0

21

Ariens 05931800

SCR-SKH M8 X 1.25X20

$2.99

$

Usually ships in 4-12 days

0

22

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 09258400

GUARD, MUFFLER

$

$

Not available
