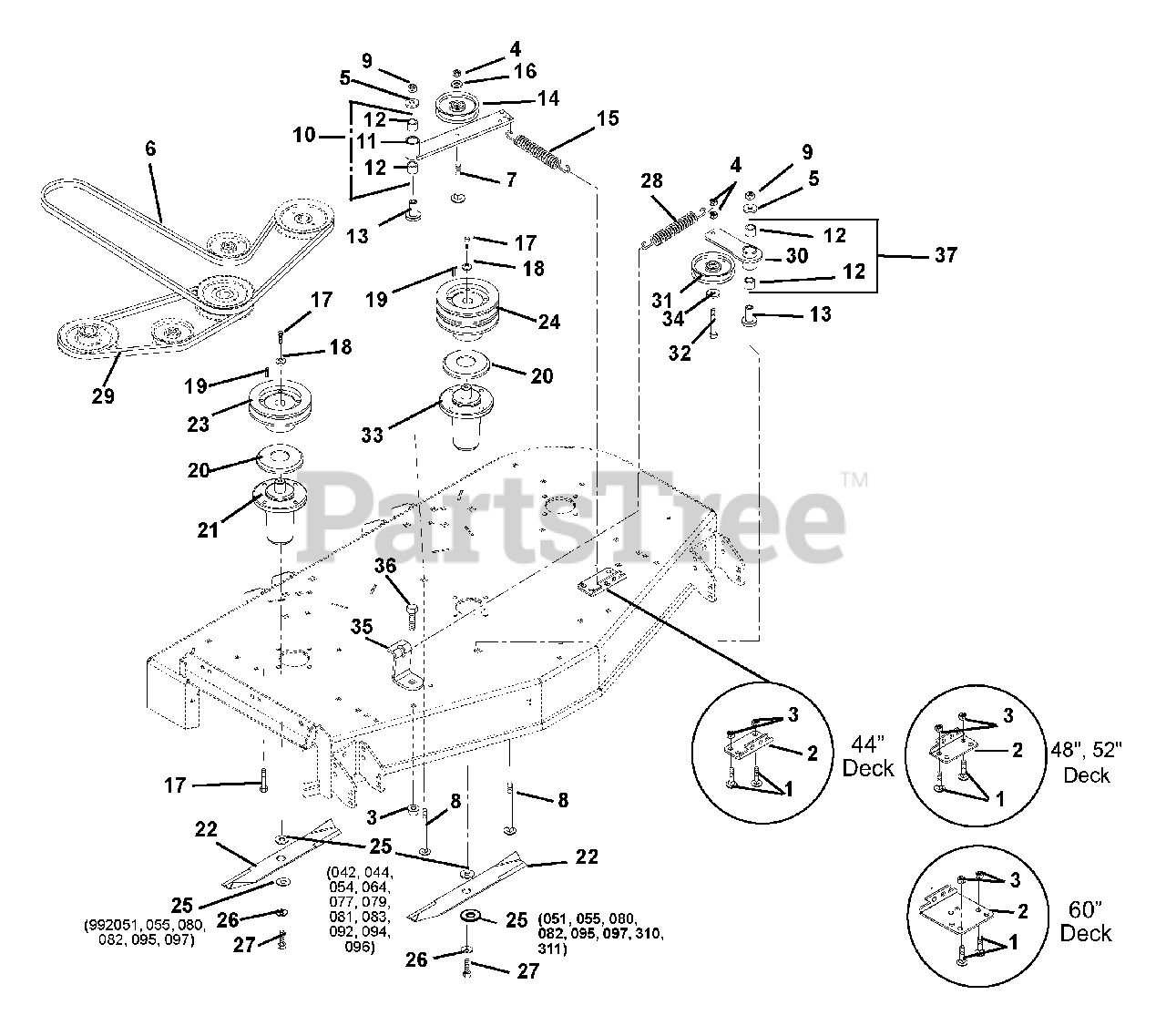

992042 (PM 144Z) - Gravely Pro-Master 44" Zero-Turn Mower, 19hp Kawasaki (SN: 004000 & Above) Belts, Spindles, Idlers And Blades Parts Diagram

Pro-Master 44" Zero-Turn Mower, 19hp Kawasaki

Belts, Spindles, Idlers And Blades Parts Diagram

  • Title

1

Gravely 06223900

BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.99

$

In Stock, Qty 10

0

2

Gravely 09248353

BRACKET, SPRING

Note: (992042, 043, 044, 054, 064, 077, 078, 079, 081, 083, 092, 093, 094, 096,310, 311)

$41.99

$

In Stock, only 4 left!

0

Gravely 09099700

BRACKET, SPRING

Note: (992051, 055, 080, 082, 095, 097)

$65.99

$

Usually ships in 4-12 days

0

3

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 415543

WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06441000)

$3.49

$

In Stock, Qty 11

0

6

Gravely 07241100

V-BELT, HB-WRAPPED

Note: (992042, 044, 054, 064, 077, 079, 081, 083, 092, 094, 096, 310)

$126.99

$

In Stock, Qty 6

0

Gravely 07239300

V-BELT, B-WRAPPED

Note: (992051, 055, 080, 082, 095, 097)

$107.99

$

In Stock, only 2 left!

0

Gravely 07241000

V-BELT, HB-WRAPPED

Note: (992043, 078, 093, 311)

$126.99

$

In Stock, only 4 left!

0

7

Gravely 06225400

BLT-RDHDSQNK .38-16X2.75 G5YZ
(Superseded to 06200316)

$4.99

$

In Stock, Qty 20+

0

8

Gravely 06200003

BLT-RHDSSQNK .50-13X3.50 G5YZ
(Superseded to 06200340)

$6.49

$

In Stock, Qty 10

0

9

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 09286500

ASSEMBLY - IDLER PIVOT ARM

Note: (Contains Items 11 & 12)

$167.99

$

Usually ships in 4-12 days

0

11

Gravely 09286451

WMT - IDLER PIVOT ARM

$174.99

$

In Stock, only 1 left!

0

12

Gravely 05435800

BRG, 1.00 X 1.12 X .75

$9.99

$

In Stock, Qty 20+

0

13

Gravely 07053100

BEARING, PEDESTAL
(Superseded to 07000031)

$84.99

$

In Stock, Qty 10

0

14

Gravely 07327800

IDLER-FLAT 4.00X.38 (2.00 W)

Note: (2.00 W)

$91.99

$

In Stock, Qty 18

0

15

Gravely 08300011

SPRING,EXT TO 08300513
(Superseded to 08300513)

$35.99

$

In Stock, Qty 20+

0

16

Gravely 446470

WSHR-FL-STL .375X1.125X.065YWZ
(Superseded to 06401139)

$2.99

$

In Stock, Qty 14

0

17

Gravely 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

18

Gravely 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

19

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$3.49

$

In Stock, Qty 20+

0

20

Gravely 09238200

SLINGER, DUST

$17.99

$

In Stock, Qty 13

0

21

Gravely 59201000

ASM,MAINT FREE SPINDLE
(Superseded to 59114000)

$273.99

$

In Stock, Qty 14

0

22

Gravely 04916400

BLADE, MOWER (18.00")

Note: (992044, 054, 079, 081, 094, 096)

$27.99

$

In Stock, Qty 19

0

Gravely 04917900

BLADE - MULCHING (18.00")
(Superseded to 00273100)

Note: (992044, 054, 079, 081, 094, 096)

$26.99

$

In Stock, Qty 20+

0

Gravely 09081200

BLADE, MOWER (20.50")

Note: (992051, 055, 080, 082, 095, 097)

$29.99

$

In Stock, Qty 20+

0

Gravely 08899100

BLADE, TUNG MULCH MOWER 60"

Note: (992051, 055, 080, 082, 095, 097)

$

$

Not available

Gravely 04919100

BLADE, MOWER (16.19")

Note: (992042, 043, 064, 077, 078, 083, 092, 093, 310)

$26.99

$

In Stock, Qty 20+

0

Gravely 04936000

BLADE, 32" (16.25)

Note: (992310, 311)

$

$

Not available

Gravely 04920600

BLADE - MULCHING (16.25)
(Superseded to 05244100)

Note: (992042, 043, 064, 077, 078, 083, 092, 093)

$27.99

$

In Stock, Qty 17

0

23

Gravely 09242500

WELDMENT, SPINDLE SHEAVE 5.00
(Superseded to 07331067)

Note: (992042, 043, 044, 054, 064, 077, 078, 079, 081, 083, 092, 093, 094, 096, 310, 311)

$122.99

$

In Stock, Qty 5

0

Gravely 09238500

WELDMENT, SPINDLE SHEAVE 6.00

Note: (992051, 055, 080, 082, 095, 097)

$46.99

$

In Stock, Qty 17

0

24

Gravely 09253200

SHEAVE, DOUBLE (5.25")

Note: (992042, 043, 044, 054, 064, 077, 078, 079, 081, 083, 092, 093, 094, 096, 310, 311)

$64.99

$

In Stock, Qty 7

0

Gravely 09253100

SHEAVE, DOUBLE (6.25")

Note: (992051, 055, 080, 082, 095, 097)

$87.99

$

In Stock, Qty 7

0

25

Gravely 06435200

WSHR-FLT .640X1.75X.250 YWZC
(Superseded to 06400829)

$4.99

$

In Stock, Qty 20+

0

26

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.49

$

In Stock, Qty 20+

0

27

Gravely 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.99

$

In Stock, Qty 20+

0

28

Gravely 08336100

SPRING, EXT
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0

29

Gravely 049028

V-BELT, HB-COGGED
(Superseded to 07222300)

Note: (992044, 054, 079, 081, 094, 096)

$63.99

$

In Stock, only 4 left!

0

Gravely 07235000

V-BELT, HB-RAW EDGE

Note: (992051, 055, 080, 082, 095, 097)

$53.99

$

In Stock, Qty 13

0

Gravely 07202900

V-BELT, 5L-RAW EDGE

Note: (992042, 043, 064, 077, 078, 083, 092, 093, 310, 311)

$50.99

$

In Stock, Qty 6

0

30

Gravely 00345600

WMT, IDLER PIVOT ARM

$52.99

$

In Stock, only 2 left!

0

31

Gravely 07327600

V-IDLER, 4.00X.38

$39.99

$

In Stock, Qty 20+

0

32

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

33

Gravely 59202600

ASM,MAINT FREE SPINDLE
(Superseded to 59225700)

Note: (Center)

$361.99

$

In Stock, Qty 20+

0

34

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 09245300

ANCHOR, SPRING

$

$

Not available

36

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

37

Gravely 00349100

ASM, IDLER PIVOT ARM

Note: (Contains item 12 and item 30)

$65.99

$

In Stock, only 2 left!

0
