992043 (PM 148Z) - Gravely Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki (SN: 000101 - 000499) Rollers Parts Diagram

Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki

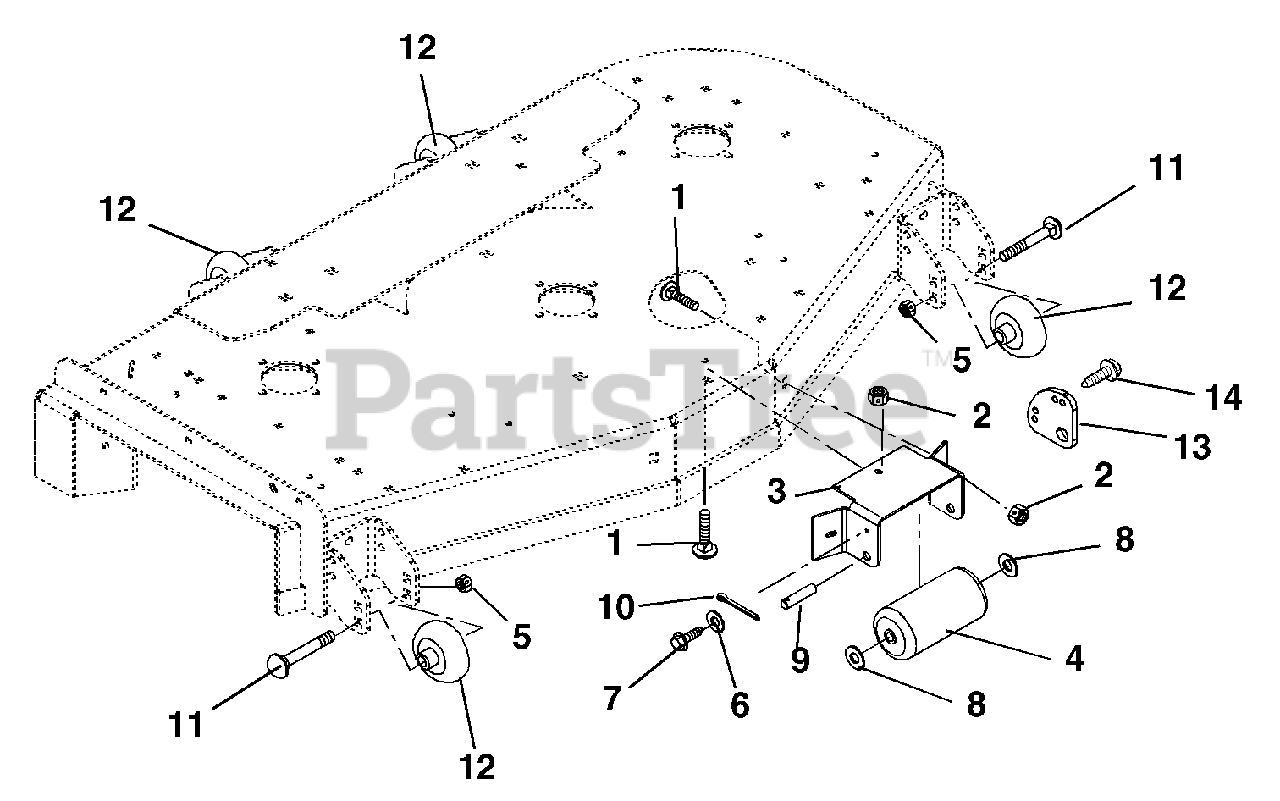

Rollers Parts Diagram

  • Title

1

Gravely 06223600

Bolt-Round Head Square Neck .38-16 x 1.00 Grade 5 (042, 043, 044, 310, 311)
(Superseded to 06200313)

Note: (042, 043, 044, 310, 311)

$2.99

$

In Stock, only 3 left!

0

1

Gravely 06221400

Bolt-Round Head Square Neck .38-16 x 1.25 Grade 2 (051)
(Superseded to 06224100)

Note: (051)

$2.99

$

In Stock, Qty 20+

0

2

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 04939953

Bracket- Anti-Scalp Roller (042, 310)
(Superseded to 04920853)

Note: (042, 310)

$127.99

$

Usually ships in 4-12 days

0

3

Gravely 04920853

Bracket- Anti-Scalp Roller (043, 044, 311)

Note: (043, 044, 311)

$127.99

$

Usually ships in 4-12 days

0

3

Gravely 09288353

Bracket, Anti-Scalp Roller (051)
(Superseded to 04920853)

Note: (051)

$127.99

$

Usually ships in 4-12 days

0

4

Gravely 09078100

Roller

$48.99

$

In Stock, Qty 5

0

5

Gravely 06543600

Nut-Locking-Top-Flange .50-13
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 06437300

Washer-Flat-Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

7

Gravely 07414200

Screw-Tapping .25-20 x .75 Hex Washer Head
(Superseded to 07400131)

$1.49

$

In Stock, Qty 6

0

8

Gravely 06442800

Washer-Flat-Steel .656 x 1.31 x .095
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

9

Gravely 09075300

Pin

$40.99

$

In Stock, only 2 left!

0

10

Gravely 06713100

Pin-Cotter .25 x 2.0
(Superseded to 06700213)

$4.99

$

Usually ships in 4-12 days

0

11

Gravely 06225900

Bolt-Round Head Square Neck .50-13 x 5.00 Grade 2
(Superseded to 06200505)

$

$

Not available

12

Gravely 09253700

Wheel, 3 x 5

$15.99

$

In Stock, Qty 20+

0

13

Gravely 09290353

Anti-Scalp Washer

$13.99

$

Usually ships in 4-12 days

0

14

Gravely 07401900

Screw-Tapping .25-20 x .62 Hex Washer Head
(Superseded to 07410400)

$2.49

$

In Stock, Qty 5

0
