992045 (PM 252Z) - Gravely Pro-Master 52" Zero-Turn Mower, 25hp Kawasaki (SN: 004501 & Above) Fuel Tanks And Hoses - Non EFI Parts Diagram

Pro-Master 52" Zero-Turn Mower, 25hp Kawasaki

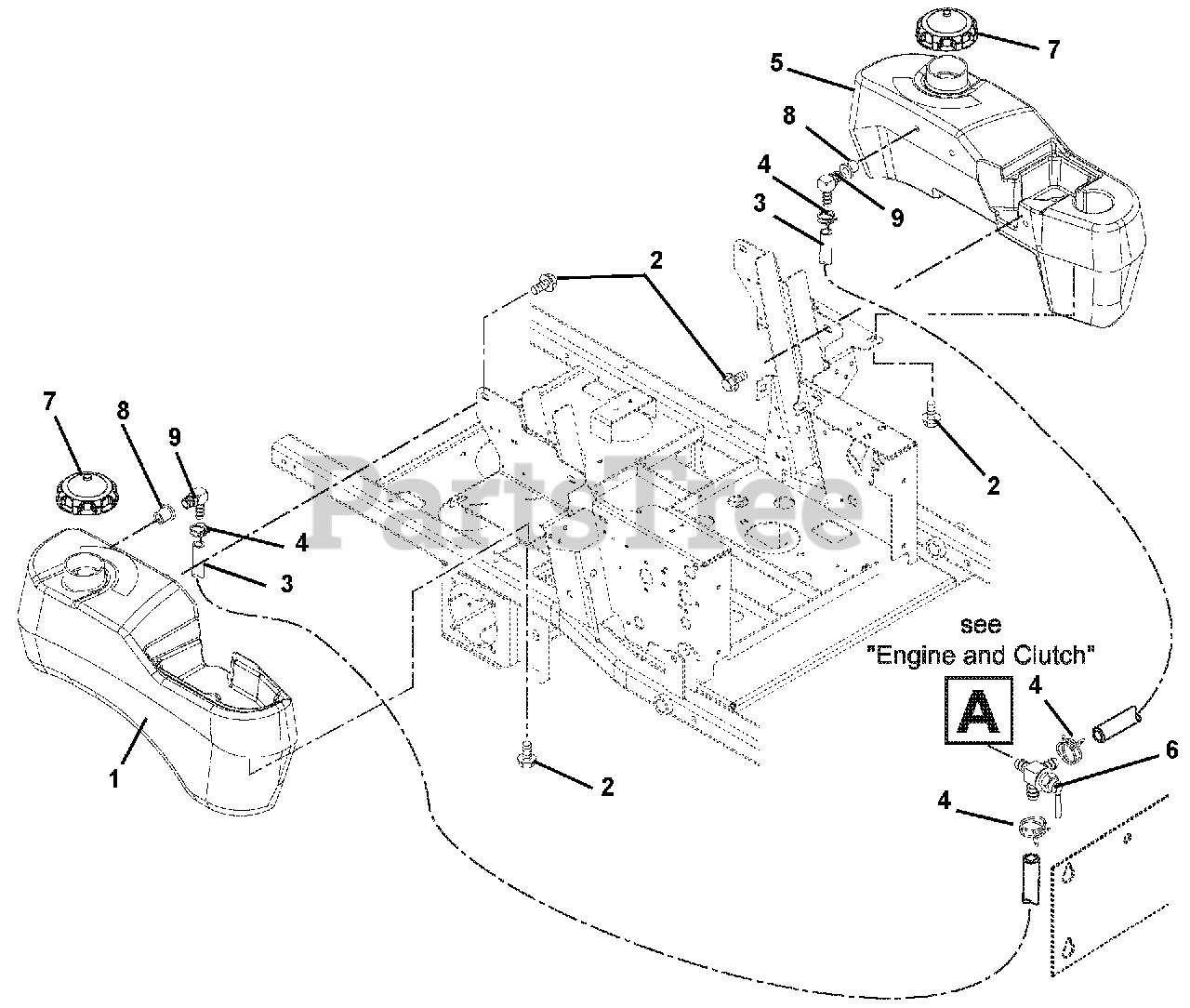

Fuel Tanks And Hoses - Non EFI Parts Diagram

  • Title

1

Gravely 09290700

TANK, FUEL - RH W/O HOSE
(Superseded to 03963300)

$501.99

$

Usually ships in 4-12 days

0

2

Gravely 07000018

BOLT, SEMS .31-18 X .62

$3.99

$

In Stock, Qty 20+

0

3

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

Note: (2 @ 42 in.) (045, 046, 047, 025, 066, 067, 068, 071, 087, 088, 089, 102)

$1.49

$

In Stock, Qty 20+

0

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

Note: (2 @ 42 in.) (084, 085, 086, 103, 104, 105, 106, 108)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06939100

CLAMP-HOSE WIRE .490/.510X.116

$3.99

$

In Stock, Qty 20+

0

5

Gravely 00191200

TANK, LH FUEL-200 S. W/O HOSE

Note: (EYE-Q)- 200 Series

$402.99

$

Usually ships in 4-12 days

0

6

Gravely 09258200

VALVE, FUEL

$48.99

$

In Stock, Qty 18

0

7

Gravely 00273700

CAP - FUEL
(Superseded to 03859100)

$29.99

$

In Stock, Qty 20+

0

8

Gravely 07511400

BSHG-FLG .375 X 1.062 X .625 R

Note: (Black in color. Does not replace or interchange with orange colored grommet.)

$3.99

$

In Stock, Qty 20+

0

Gravely 00387300

GROMMET, DAPCO VITON #12240

Note: (Orange in color. Does not replace or interchange with black colored grommet.)

$9.99

$

In Stock, Qty 20+

0

9

Gravely 21539200

FITTING, TANK ELBOW .25 HOSE

$15.99

$

In Stock, Qty 5

0
