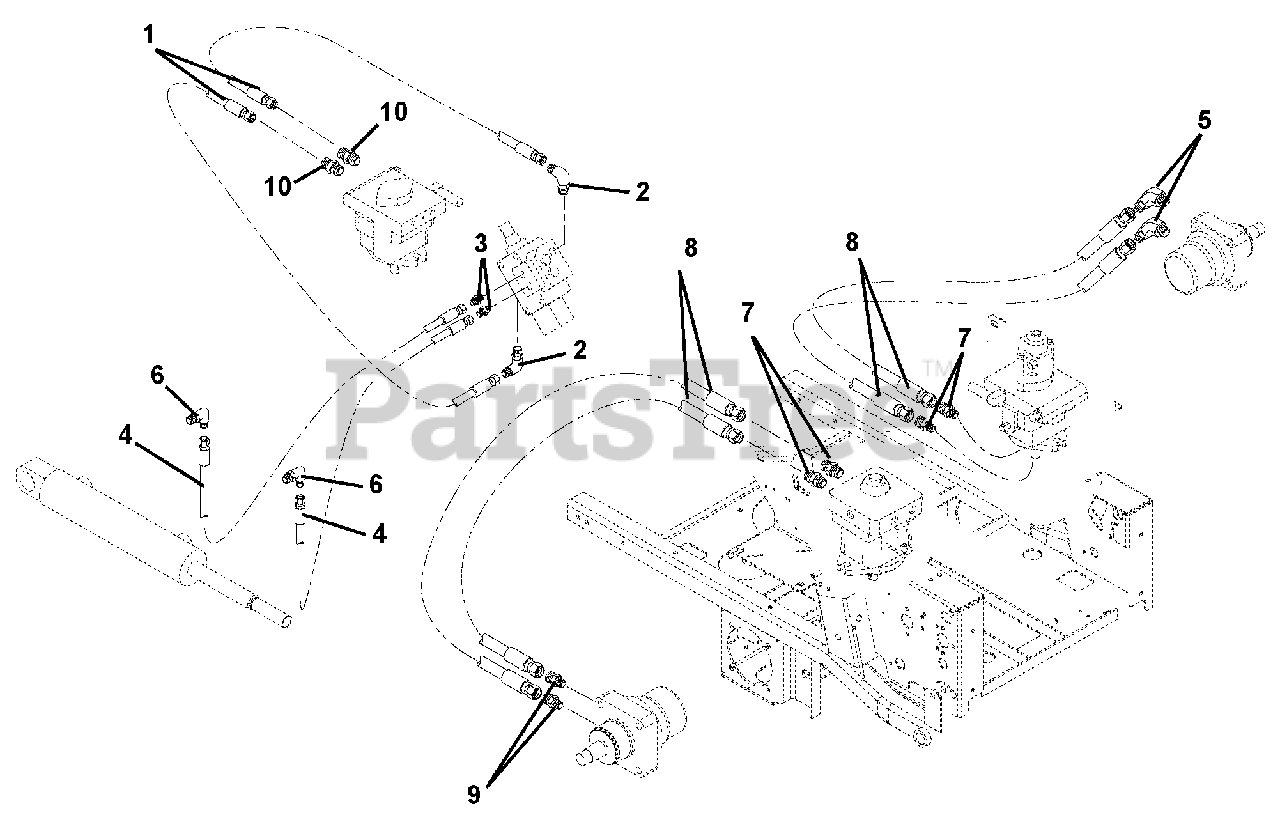

992047 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Kohler (SN: 004501 & Above) Deck Lift And Motor To Pump Circuits Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Kohler

Deck Lift And Motor To Pump Circuits Parts Diagram

  • Title

1

Gravely 09291800

HOSE,HYD 25-29-2K F04F9 F04F9

Note: (045, 046, 047, 052, 066, 067, 068, 071, 084, 085, 086, 091, 104, 106, 107, 108)

$

$

Not available

2

Gravely 07067500

FTG, HYD ELBOW M4F-M8O

$17.99

$

Usually ships in 4-12 days

0

107, 108)

Note: 107, 108)

$

$

Not available

3

Gravely 07063800

FITTING, HYD (4-6 F5OLO)

Note: (4-6F5OLO) (045, 046, 047, 052, 066, 067, 068, 071, 084, 085, 086, 091, 104, 106, 107,

$15.99

$

Usually ships in 4-12 days

0

108)

Note: 108)

$

$

Not available

4

Gravely 09275400

HOSE,HYD.25-42-2K F04F0-F04F4

Note: (045, 046, 047, 052, 066, 067, 068, 071, 084, 085, 086, 091, 104, 106, 107, 108)

$140.99

$

Usually ships in 4-12 days

0

5

Gravely 07063500

FITTING, HYD (8-10 V5OLO)

Note: (8-10 V5OLO)

$40.99

$

Usually ships in 4-12 days

0

6

Gravely 07063900

FITTING, HYD (4 C5OLO)

Note: (4 C5OLO) (045, 046, 047, 052, 066, 067, 068, 071, 084, 085, 086, 091, 104,

$15.99

$

Usually ships in 4-12 days

0

106, 107, 108)

Note: 106, 107, 108)

$

$

Not available

7

Gravely 07059900

ADPTR,FACE SEAL 8X8 1/2 O-RING

$9.99

$

Usually ships in 4-12 days

0

8

Gravely 04925900

HOSE,HYD .5-22-2K F08F0-F08F0

$100.99

$

In Stock, only 3 left!

0

9

Gravely 07062100

FTG, HYD STR M10O-M8F

Note: (M10 O-M8F)

$15.99

$

In Stock, only 2 left!

0

10

Gravely 07063700

FITTING, HYD (4 F5OLO)

Note: (4 F5OLO)

$

$

Not available
