992047 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Kohler (SN: 004501 & Above) Deck Lift And Motor To Pump Circuits Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Kohler

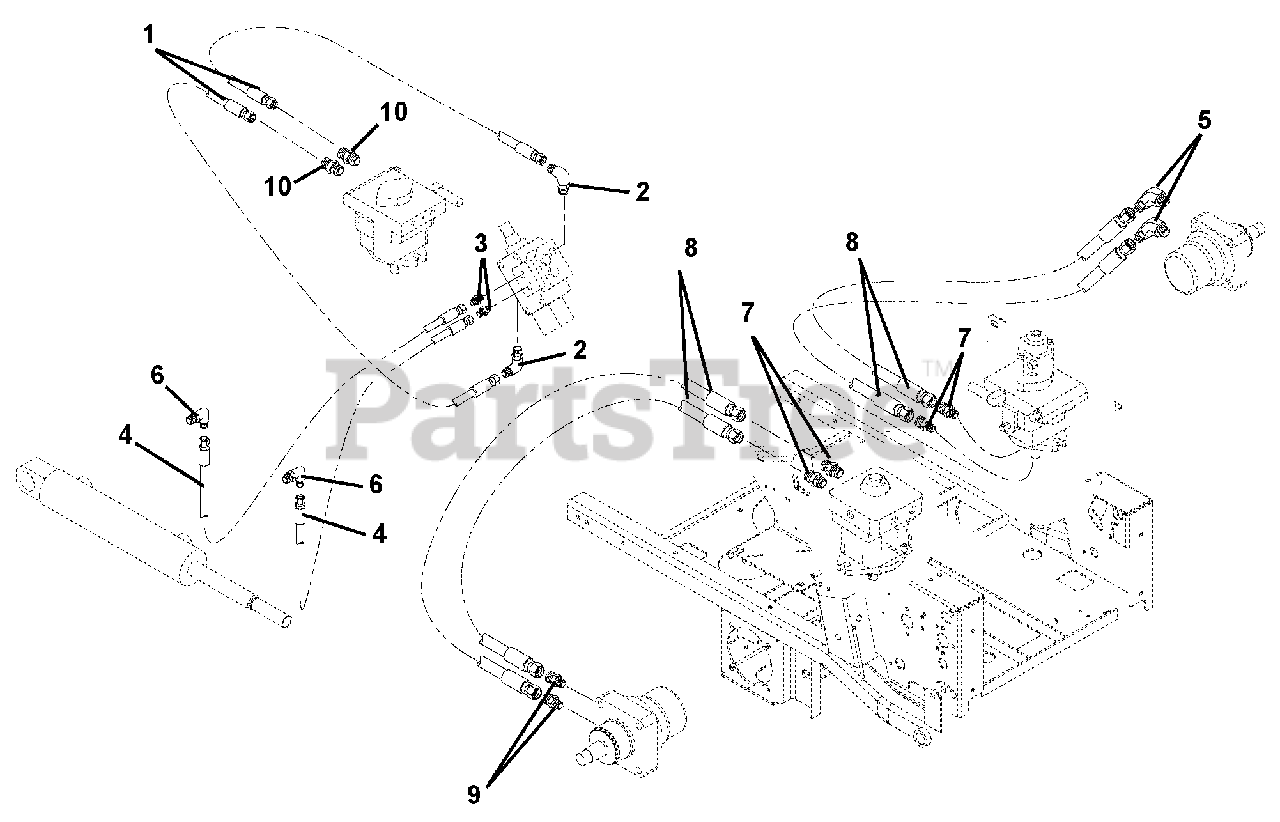

Deck Lift And Motor To Pump Circuits Parts Diagram

  • Title

1

Gravely 09291800

Hose, Hydraulic (045, 046, 047, 052, 066, 067, 068, 071, 084, 085, 086, 091, 104, 106, 107, 108)

Note: (045, 046, 047, 052, 066, 067, 068, 071, 084, 085, 086, 091, 104, 106, 107, 108)

$

$

Not available

2

Gravely 07067500

Hydraulic, Fitting Elbow (045, 046, 047, 052, 066, 067, 068, 071, 084, 085, 086, 091, 104, 106,

$17.99

$

Usually ships in 4-12 days

0

107, 108)

107, 108)

Note: 107, 108)

$

$

Not available

3

Gravely 07063800

Adapter (4-6F5OLO) (045, 046, 047, 052, 066, 067, 068, 071, 084, 085, 086, 091, 104, 106, 107,

Note: (4-6F5OLO) (045, 046, 047, 052, 066, 067, 068, 071, 084, 085, 086, 091, 104, 106, 107,

$15.99

$

Usually ships in 4-12 days

0

108)

108)

Note: 108)

$

$

Not available

4

Gravely 09275400

Hose, Hydraulic (045, 046, 047, 052, 066, 067, 068, 071, 084, 085, 086, 091, 104, 106, 107, 108)

Note: (045, 046, 047, 052, 066, 067, 068, 071, 084, 085, 086, 091, 104, 106, 107, 108)

$140.99

$

Usually ships in 4-12 days

0

5

Gravely 07063500

Fitting, Hydraulic (8-10 V5OLO)

Note: (8-10 V5OLO)

$40.99

$

In Stock, only 1 left!

0

6

Gravely 07063900

Fitting, Hydraulic (4 C5OLO) (045, 046, 047, 052, 066, 067, 068, 071, 084, 085, 086, 091, 104,

Note: (4 C5OLO) (045, 046, 047, 052, 066, 067, 068, 071, 084, 085, 086, 091, 104,

$15.99

$

Usually ships in 4-12 days

0

106, 107, 108)

106, 107, 108)

Note: 106, 107, 108)

$

$

Not available

7

Gravely 07059900

Adapter, Face Seal 8 x 8 .50 O-Ring

$9.99

$

Usually ships in 4-12 days

0

8

Gravely 04925900

Hose, Hydraulic .50

$100.99

$

In Stock, only 2 left!

0

9

Gravely 07062100

Adapter, Hydraulic Steel (M10 O-M8F)

Note: (M10 O-M8F)

$15.99

$

Usually ships in 4-12 days

0

10

Gravely 07063700

Fitting, Hydraulic (4 F5OLO)

Note: (4 F5OLO)

$

$

Not available
