992047 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Kohler (SN: 004501 & Above) Hood And Bumper Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Kohler

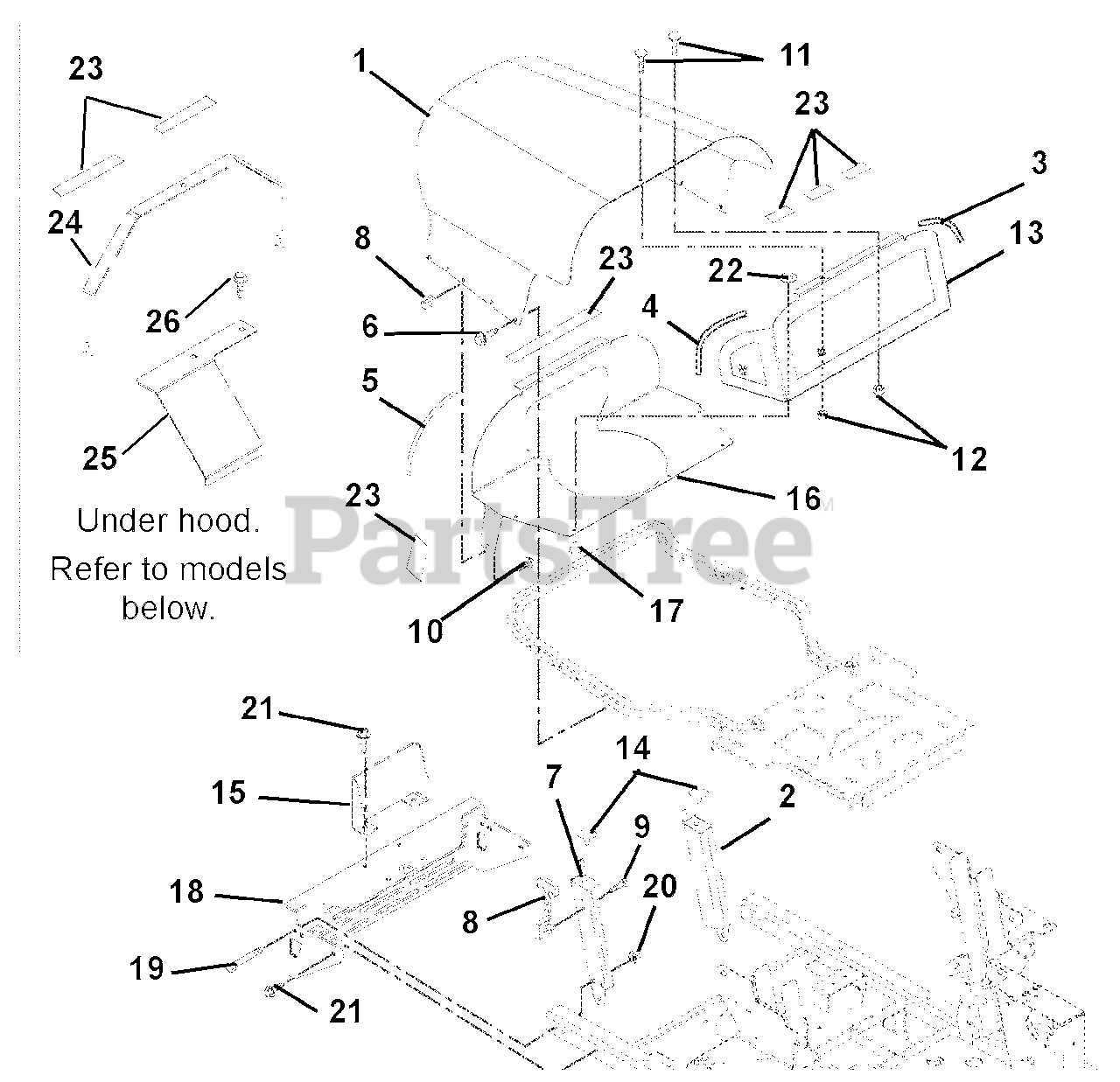

Hood And Bumper Parts Diagram

  • Title

1

Gravely 09257753

HOOD

$

$

Not available

2

Gravely 09275153

WMT, HOOD SUPPORT -LH

$138.99

$

Usually ships in 4-12 days

0

3

Gravely 00929000

SEAL, TRIM-LOK BULK .06 BBL 1'

Note: (045, 046, 047, 052, 066, 067, 068, 071, 087, 088, 089, 091, 102, 107)

$1.49

$

In Stock, Qty 6

0

Gravely 00929000

SEAL, TRIM-LOK BULK .06 BBL 1'

$1.49

$

In Stock, Qty 6

0

4

Gravely 00929000

SEAL, TRIM-LOK BULK .06 BBL 1'

Note: (045, 046, 047, 052, 066, 067, 068, 071, 087, 088, 089, 091, 102, 107)

$1.49

$

In Stock, Qty 6

0

Gravely 00929000

SEAL, TRIM-LOK BULK .06 BBL 1'

$1.49

$

In Stock, Qty 6

0

5

Gravely 00929000

SEAL, TRIM-LOK BULK .06 BBL 1'

Note: (045, 046, 047, 052, 066, 067, 068, 071, 087, 088, 089, 091, 102, 107)

$1.49

$

In Stock, Qty 6

0

6

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 09227953

WLDMT, HOOD SUPPORT RH

$104.99

$

Usually ships in 4-12 days

0

8

Gravely 09079500

LATCH, RUBBER

$35.99

$

In Stock, Qty 12

0

9

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06118200

SCR-MCH 10-24X1.50 HWH YWZC

$2.99

$

Usually ships in 4-12 days

0

091, 102, 107)

Note: 091, 102, 107)

$

$

Not available

11

Gravely 06220600

BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$1.49

$

In Stock, Qty 11

0

089, 091, 102, 107)

Note: 089, 091, 102, 107)

$

$

Not available

12

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

Note: (045, 046, 047, 052, 066, 067, 068, 071, 087, 088, 089, 091, 102, 107)

$1.49

$

In Stock, Qty 15

0

13

Gravely 09257951

WLDMT, PLENUM

Note: (045, 046, 047, 052, 066, 067, 068, 071, 087, 088, 089, 091, 102, 107)

$

$

Not available

14

Gravely 07516000

BUTTON BUMPER

$1.49

$

In Stock, Qty 17

0

15

Gravely 09229951

GUARD, ENGINE

$65.99

$

Usually ships in 4-12 days

0

16

Gravely 09293851

PLENUM SUPPORT - BLACK

Note: (045, 046, 047, 052, 066, 067, 068, 071, 087, 088, 089, 091, 102, 107)

$113.99

$

Usually ships in 4-12 days

0

17

Gravely 06817000

RVT-POP .18 X .402 SBS64L

Note: (045, 046, 047, 052, 066, 067, 068, 071, 087, 088, 089, 091, 102, 107)

$1.99

$

Usually ships in 4-12 days

0

18

Gravely 09293451

WMT, BUMPER- BLACK (LONGER)

$267.99

$

Usually ships in 4-12 days

0

19

Gravely 05961400

BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$4.99

$

In Stock, Qty 20+

0

20

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 06442700

WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

Note: (045, 046, 047, 052, 066, 067, 068, 071, 087, 088, 089, 091, 102, 107)

$1.49

$

Usually ships in 4-12 days

0

23

Gravely 00932300

VHB TAPE 4941F

Note: (045, 046, 047, 052, 066, 067, 068, 071, 087, 088, 089, 091, 102, 107)

$3.99

$

Usually ships in 4-12 days

0

Gravely 00932300

VHB TAPE 4941F

Note: (084, 085, 086, 103, 104, 105, 106, 108)

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 09295600

BRACE, HOOD SUPPORT

Note: (045, 046, 047, 052, 066, 067, 068, 071, 087, 088, 089, 091, 102, 107)

$

$

Not available

25

Gravely 00355400

GUARD (MZ VERT L/C)

Note: (084, 085, 086, 103, 104, 105, 106, 108)

$

$

Not available

26

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

087, 088, 089, 091, 102, 107)

Note: 087, 088, 089, 091, 102, 107)

$

$

Not available
