992048 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 28hp Kohler (SN: 000101 - 001499) Control Panel Parts Diagram

Pro-Master 60" Zero-Turn Mower, 28hp Kohler

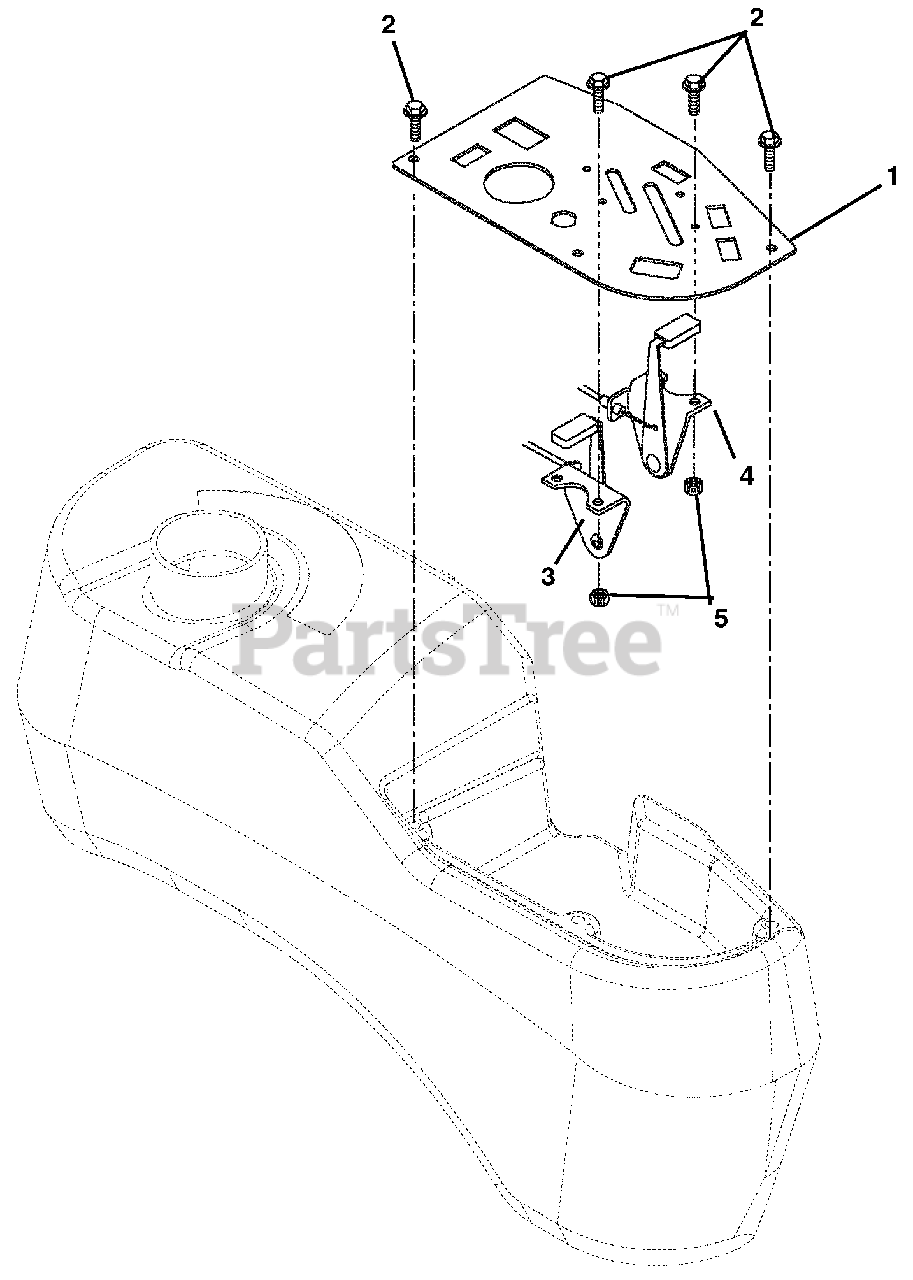

Control Panel Parts Diagram

  • Title

1

Gravely 09292800

Panel, Control
(Superseded to 09292851)

$51.99

$

Usually ships in 4-12 days

0

2

Gravely 06116700

Screw, Machine 10-24 x .50 Hex Washer Head (045, 046, 047, 049, 052, 053)
(Superseded to 05901825)

Note: (045, 046, 047, 049, 052, 053)

$0.99

$

In Stock, Qty 20+

0

Gravely 06116700

Screw, Machine 10-24 x .50 Hex Washer Head (048)
(Superseded to 05901825)

Note: (048)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 09236700

Throttle, Control
(Superseded to 06900026)

$48.99

$

In Stock, Qty 15

0

4

Gravely 06946300

Choke Control (045, 046, 049)

Note: (045, 046, 049)

$62.99

$

In Stock, only 2 left!

0

Gravely 09236800

Choke Control (047, 052, 053)

Note: (047, 052, 053)

$47.99

$

Usually ships in 4-12 days

0

5

Gravely 06536000

Nut, Locking Nylon 10-24 With Insert (045, 046, 047, 049, 052, 053)
(Superseded to 06500915)

Note: (045, 046, 047, 049, 052, 053)

$0.99

$

In Stock, Qty 20+

0

Gravely 06536000

Nut, Locking Nylon 10-24 With Insert (048)
(Superseded to 06500915)

Note: (048)

$0.99

$

In Stock, Qty 20+

0
