992049 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 25hp Kawasaki (SN: 000101 - 001499) Hood And Bumper Parts Diagram

Pro-Master 72" Zero-Turn Mower, 25hp Kawasaki

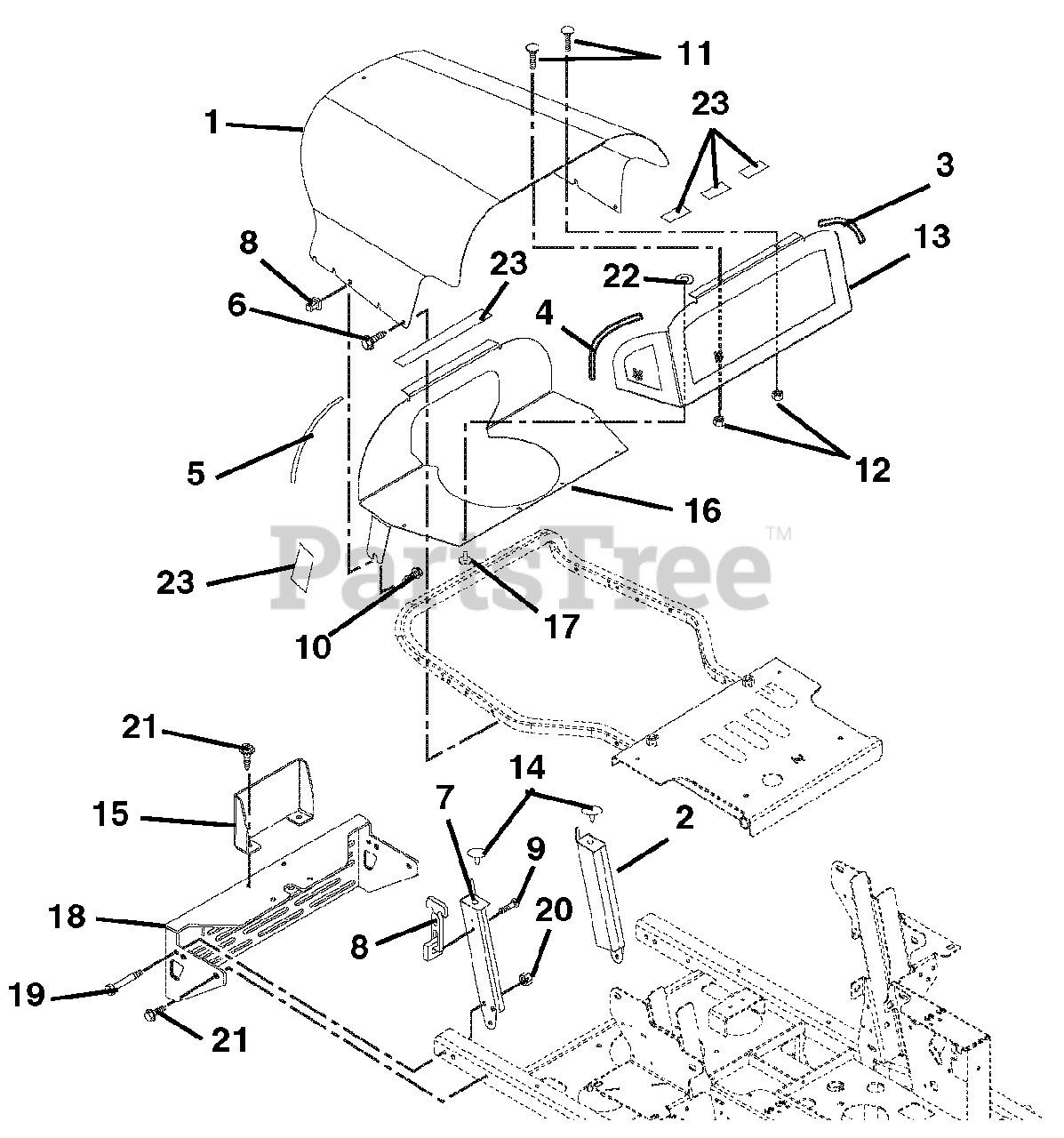

Hood And Bumper Parts Diagram

  • Title

1

Gravely 09257753

Hood

$

$

Not available

2

Gravely 09275153

Weldment, Hood Support, Left Hand

$136.99

$

Usually ships in 4-12 days

0

3

Gravely 00929000

Seal, Trim Lok Bulk .06 Bubble

$15.99

$

Usually ships in 4-12 days

0

Gravely 00929000

Seal, Trim Lok Bulk .06 Bubble

$15.99

$

Usually ships in 4-12 days

0

4

Gravely 00929000

Seal, Trim Lok Bulk .06 Bubble

$15.99

$

Usually ships in 4-12 days

0

5

Gravely 00929000

Seal, Trim Lok Bulk .06 Bubble (048)

Note: (048)

$15.99

$

Usually ships in 4-12 days

0

Gravely 00929000

Seal, Trim Lok Bulk .06 Bubble (048)

Note: (048)

$15.99

$

Usually ships in 4-12 days

0

6

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0

7

Gravely 09227953

Weldment, Hood Support Right Hand

$102.99

$

Usually ships in 4-12 days

0

8

Gravely 09079500

Latch, Rubber

$34.99

$

Usually ships in 4-12 days

0

9

Gravely 06116700

Screw, Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06118200

Screw, Machine 10-24 x 1.50 Hex Washer Head

$2.99

$

Usually ships in 4-12 days

0

11

Gravely 06220600

Bolt-Round Head Square Neck .25-20 x .50 Grade 5
(Superseded to 06200306)

$0.99

$

In Stock, Qty 7

0

12

Gravely 06543500

Nut-Locking-Top-Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 13

0

13

Gravely 09257951

Weldment, Plenum

$

$

Not available

14

Gravely 07516000

Button Bumper

$1.99

$

In Stock, Qty 17

0

15

Gravely 09229951

Guard, Muffler

$64.99

$

Usually ships in 4-12 days

0

16

Gravely 09293851

Support, Plenum

$113.99

$

Usually ships in 4-12 days

0

17

Gravely 06817000

Rivet, Pop .18 x .402

$1.49

$

Usually ships in 4-12 days

0

18

Gravely 09258151

Bumper, Rear
(Superseded to 09293451)

$262.99

$

Usually ships in 4-12 days

0

19

Gravely 05961400

Bolt, Hex .38-16 x 2.75 Grade 5
(Superseded to 05901611)

$3.99

$

In Stock, Qty 20+

0

20

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06442700

Washer-Flat-Steel .219 x .50 x .049
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

23

Gravely 00932300

VHB Tape 4941F

$3.99

$

Usually ships in 4-12 days

0
