992052 (PM 252Z) - Gravely Pro-Master 52" Zero-Turn Mower, 27hp Kohler (SN: 004501 & Above) Fuel Tanks And Hoses - Non EFI Parts Diagram

Pro-Master 52" Zero-Turn Mower, 27hp Kohler

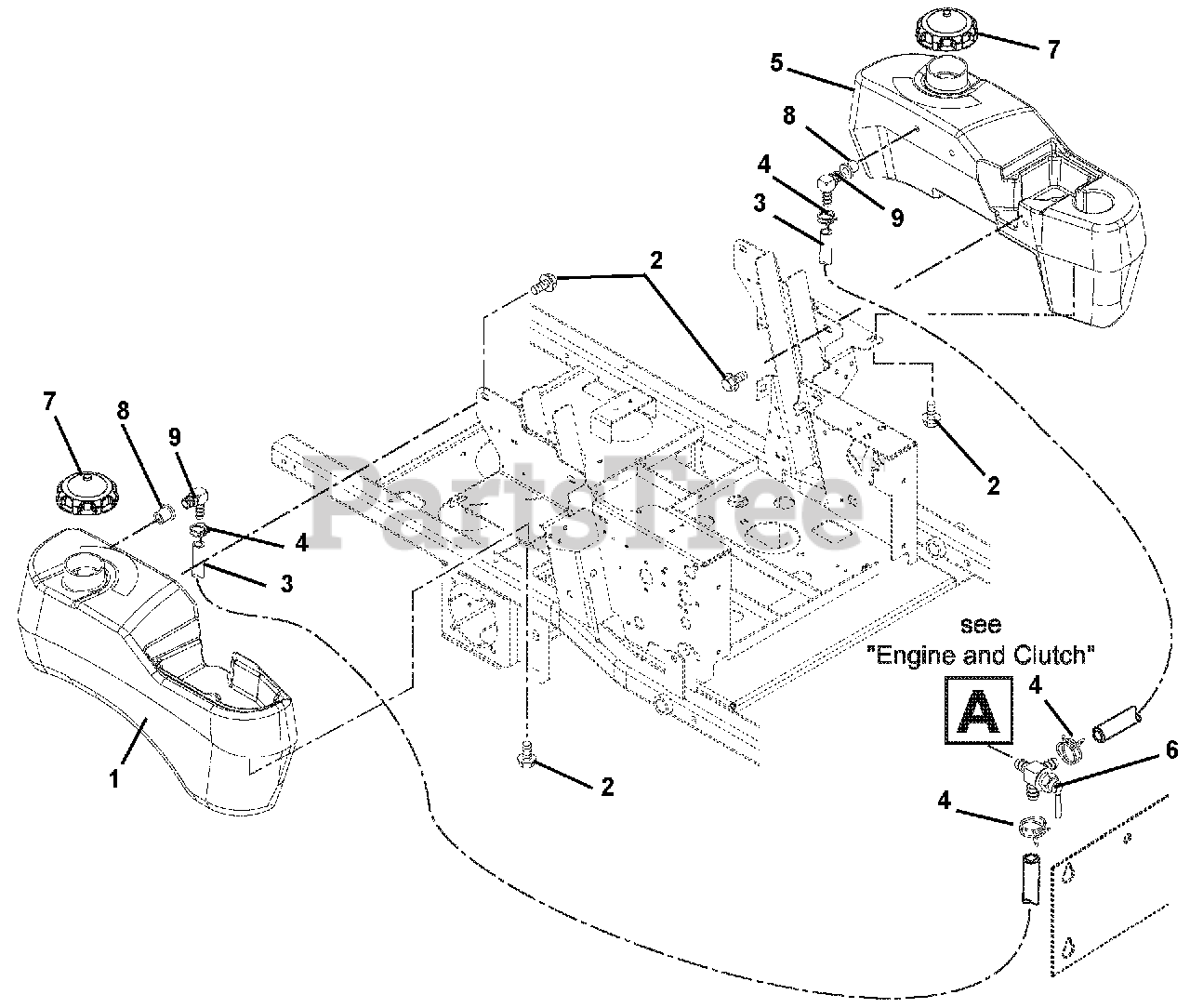

Fuel Tanks And Hoses - Non EFI Parts Diagram

  • Title

1

Gravely 09290700

Tank, Fuel - Right Hand
(Superseded to 03963300)

$501.99

$

Usually ships in 4-12 days

0

2

Gravely 07000018

Bolt, SEMS .31-18 x .62

$3.99

$

In Stock, Qty 6

0

3

Gravely 021134

Gas Line, Bulk .25 I.D. (2 @ 42 in.) (045, 046, 047, 025, 066, 067, 068, 071, 087, 088, 089, 102)
(Superseded to 03278100)

Note: (2 @ 42 in.) (045, 046, 047, 025, 066, 067, 068, 071, 087, 088, 089, 102)

$1.49

$

In Stock, Qty 20+

0

Gravely 021134

Gas Line, Bulk .25 I.D. (2 @ 42 in.) (084, 085, 086, 103, 104, 105, 106, 108)
(Superseded to 03278100)

Note: (2 @ 42 in.) (084, 085, 086, 103, 104, 105, 106, 108)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06939100

Clamp, Hose Wire .49/.51 x .116

$3.99

$

In Stock, Qty 7

0

5

Gravely 00191200

Tank, Left Hand Fuel (EYE-Q)- 200 Series

Note: (EYE-Q)- 200 Series

$402.99

$

Usually ships in 4-12 days

0

6

Gravely 09258200

Valve, Fuel

$48.99

$

In Stock, Qty 10

0

7

Gravely 00273700

Cap, Gas
(Superseded to 03859100)

$29.99

$

In Stock, only 3 left!

0

8

Gravely 07511400

Grommet (Black in color. Does not replace or interchange with orange colored grommet.)

Note: (Black in color. Does not replace or interchange with orange colored grommet.)

$3.99

$

In Stock, Qty 20+

0

Gravely 00387300

Grommet (Orange in color. Does not replace or interchange with black colored grommet.)

Note: (Orange in color. Does not replace or interchange with black colored grommet.)

$9.99

$

In Stock, Qty 15

0

9

Gravely 21539200

Tank Fitting

$15.99

$

In Stock, only 2 left!

0
