992053 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 27hp Kohler (SN: 004001 & Above) Control Panel Parts Diagram

Pro-Master 72" Zero-Turn Mower, 27hp Kohler

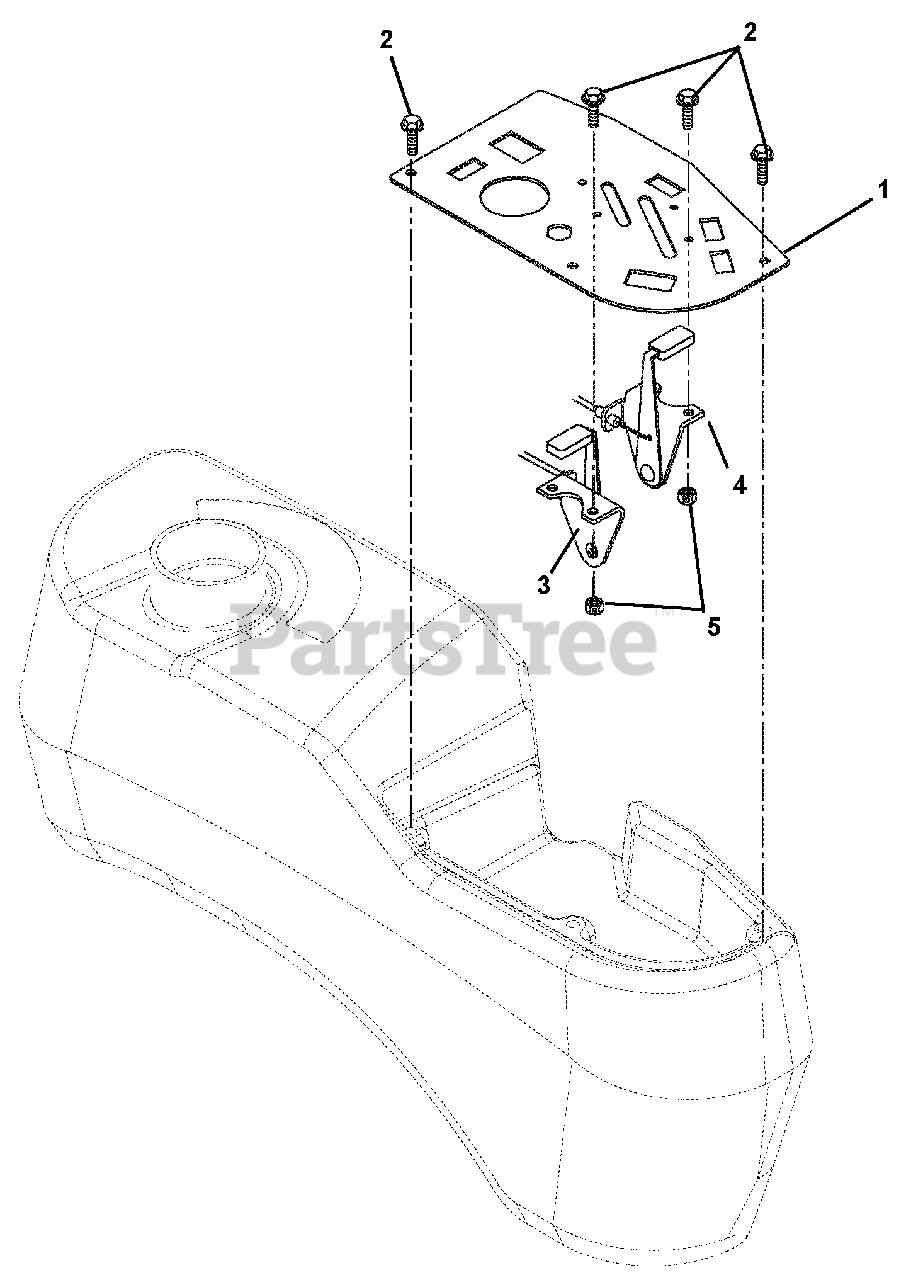

Control Panel Parts Diagram

  • Title

1

Gravely 09292800

Panel, Control
(Superseded to 09292851)

$50.99

$

In Stock, only 1 left!

0

2

Gravely 06116700

Screw, Machine 10-24 x .50 Hex Washer Head (045, 046, 047, 049, 052, 053, 066, 067, 068,
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

070, 071, 072)

070, 071, 072)

Note: 070, 071, 072)

$

$

Not available

Gravely 06116700

Screw, Machine 10-24 x .50 Hex Washer Head (048, 069)
(Superseded to 05901825)

Note: (048, 069)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 09236700

Throttle, Control
(Superseded to 06900026)

$45.99

$

Usually ships in 4-12 days

0

4

Gravely 06946300

Choke Control (045, 046, 049, 066, 067, 070)

Note: (045, 046, 049, 066, 067, 070)

$59.99

$

In Stock, only 1 left!

0

Gravely 09236800

Choke Control (047, 052, 053, 068, 071, 072)

Note: (047, 052, 053, 068, 071, 072)

$45.99

$

Usually ships in 4-12 days

0

5

Gravely 06536000

Nut, Locking Nylon 10-24 With Insert (045, 046, 047, 049, 052, 053, 066, 067, 068, 070, 071,
(Superseded to 06500915)

$0.99

$

In Stock, only 1 left!

0

072)

072)

Note: 072)

$

$

Not available

Gravely 06536000

Nut, Locking Nylon 10-24 With Insert (048, 069)
(Superseded to 06500915)

Note: (048, 069)

$0.99

$

In Stock, only 1 left!

0
