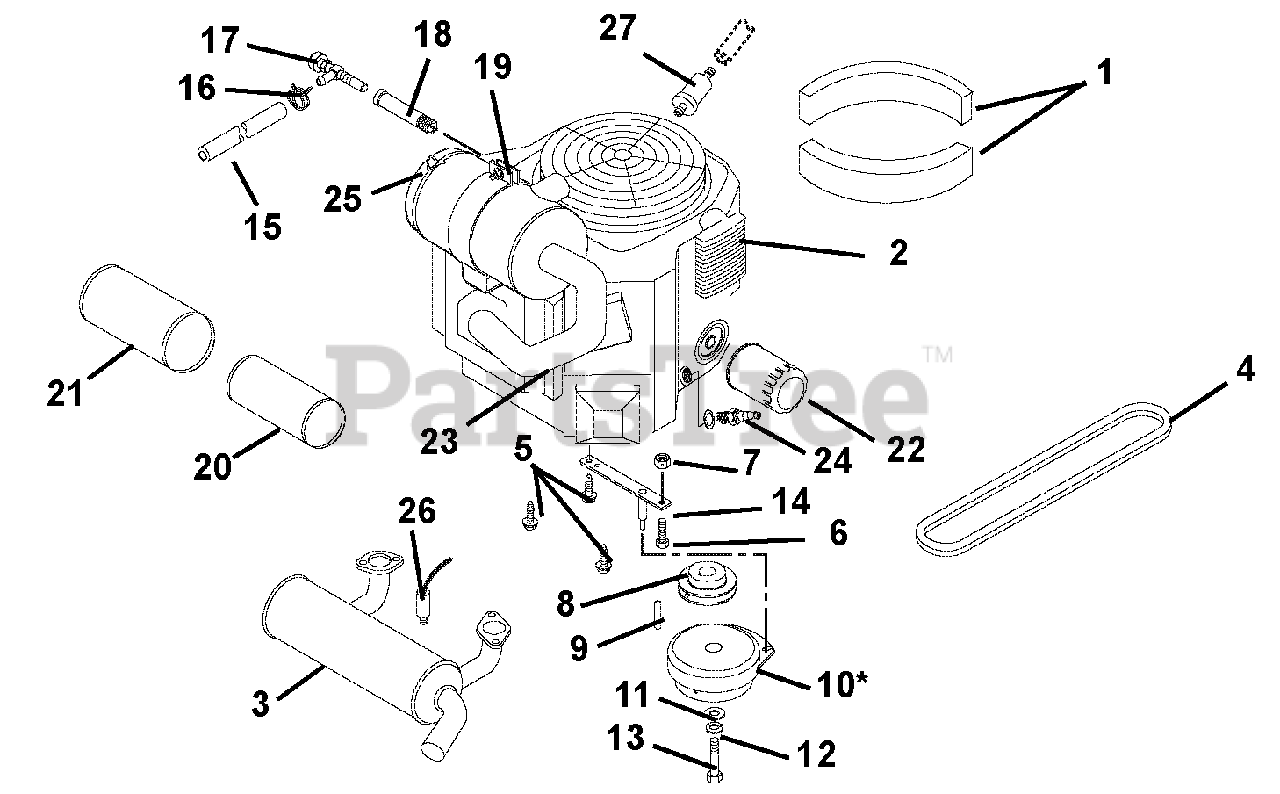

992053 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 27hp Kohler (SN: 004001 & Above) Engine And Clutch Parts Diagram

Pro-Master 72" Zero-Turn Mower, 27hp Kohler

Engine And Clutch Parts Diagram

  • Title

1

Gravely 09293900

Seal, Foam

$

$

Not available

2

Gravely 08268200

Engine, Kohler 28HP EFI (048, 069)

Note: (048, 069)

$

$

Not available

Gravely 08268100

Engine, Kohler 27HP Command Vertical (047, 052, 053, 068, 071, 072)

Note: (047, 052, 053, 068, 071, 072)

$

$

Not available

Gravely 08268300

Engine, 25 HP Kawasaki (045, 046, 049, 066, 067, 070)

Note: (045, 046, 049, 066, 067, 070)

$

$

Not available

3

Gravely 09257300

Muffler, Kohler EFI (048, 069)

Note: (048, 069)

$706.99

$

Usually ships in 4-12 days

0

Gravely 09294800

Muffler, Kohler Command (047, 052, 053, 070, 071, 072)
(Superseded to 00470400)

Note: (047, 052, 053, 070, 071, 072)

$218.99

$

In Stock, only 3 left!

0

Gravely 09281600

Muffler, Kawasaki (045, 046, 049, 066, 067, 070)

Note: (045, 046, 049, 066, 067, 070)

$298.99

$

Usually ships in 4-12 days

0

4

Gravely 07242000

Belt, Poly-V

$54.99

$

In Stock, Qty 9

0

5

Gravely 07414100

Screw, Tapping Hex Washer Head .38-16 x 1.00
(Superseded to 07417500)

$3.99

$

In Stock, Qty 20+

0

6

Gravely 05957400

Bolt, Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$3.49

$

In Stock, Qty 5

0

7

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 07327000

Sheave, Poly V 1.127 x 3.25
(Superseded to 07300041)

$95.99

$

In Stock, only 1 left!

0

9

Gravely 06602200

Key, Square .25 x 1.00 x .25

$3.99

$

In Stock, Qty 17

0

10

Gravely 09266700

Clutch, Electric
(Superseded to 00389900)

$504.99

$

Usually ships in 4-12 days

0

11

Gravely 06445000

Washer, Flat Steel .515 x 1.625 x .250

$6.49

$

In Stock, Qty 20+

0

12

Gravely 06309300

Washer, Locking .44 x .109
(Superseded to 06300121)

$2.99

$

In Stock, only 4 left!

0

13

Gravely 05965700

Bolt, Hex .44-20 x 3.00 Grade 5
(Superseded to 05900037)

$7.49

$

In Stock, Qty 18

0

14

Gravely 04907200

Anchor, Clutch

$75.99

$

In Stock, only 4 left!

0

15

Gravely 021134

Gas Line, Bulk .25 ID (045, 046, 047, 049, 052, 053, 066, 067, 068, 070, 071, 072)
(Superseded to 03278100)

Note: (045, 046, 047, 049, 052, 053, 066, 067, 068, 070, 071, 072)

$1.49

$

In Stock, Qty 20+

0

Gravely 021134

Gas Line, Bulk .25 ID (048, 069)
(Superseded to 03278100)

Note: (048, 069)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06939100

Hose, Clamp

$3.99

$

In Stock, Qty 7

0

17

Gravely 035329

Cock, Oil Drain
(Superseded to 00429000)

$40.99

$

Usually ships in 4-12 days

0

18

Gravely 035328

Adapter, Oil Drain
(Superseded to 03493100)

$6.49

$

Usually ships in 4-12 days

0

19

Gravely 09257600

Bracket, Air Cleaner Mount

$89.99

$

Usually ships in 4-12 days

0

20

Gravely 21536900

Element, Inner Safety

$29.99

$

In Stock, only 4 left!

0

21

Gravely 21537000

Element, Outer Primary

$28.99

$

In Stock, Qty 20+

0

22

Gravely 21397200

Oil Filter (047, 048, 052, 053, 068, 069, 071, 072)
(Superseded to 20715100)

Note: (047, 048, 052, 053, 068, 069, 071, 072)

$21.99

$

In Stock, Qty 20+

0

Gravely 21535800

Oil Filter (045, 046, 049, 066, 067, 070)
(Superseded to 49065-0724)

Note: (045, 046, 049, 066, 067, 070)

$18.99

$

In Stock, Qty 20+

0

23

Gravely 21536800

Hose, Air Intake (047, 048, 052, 053, 068, 069, 071, 072)

Note: (047, 048, 052, 053, 068, 069, 071, 072)

$26.99

$

Usually ships in 4-12 days

0

24

Gravely 21525900

Spark Plug (047, 048, 052, 053, 068, 069, 071, 072)
(Superseded to 21541700)

Note: (047, 048, 052, 053, 068, 069, 071, 072)

$3.99

$

Usually ships in 4-12 days

0

Gravely 21536100

Spark Plug (045, 046, 049, 066, 067, 070)

Note: (045, 046, 049, 066, 067, 070)

$3.99

$

In Stock, Qty 20+

0

25

Gravely 09257500

Assembly, Air Cleaner
(Superseded to 03782600)

$181.99

$

Usually ships in 4-12 days

0

26

Gravely 21537100

Sensor, Oxygen (048, 069)

Note: (048, 069)

$

$

Not available

27

Gravely 21410800

Fuel Filter (045, 046, 049, 066, 067, 070)
(Superseded to 21541500)

Note: (045, 046, 049, 066, 067, 070)

$8.99

$

In Stock, Qty 20+

0

Gravely 21539500

Fuel Filter (047, 048, 052, 053, 068, 069, 071, 072)

Note: (047, 048, 052, 053, 068, 069, 071, 072)

$12.99

$

In Stock, Qty 20+

0

Gravely 59205200

Break Pole Module Replacement Kit (Not Shown)

Note: (Not Shown)

$

$

Not available
