992054 (PM 152Z) - Gravely Pro-Master 52" Zero-Turn Mower, 25hp Kohler (SN: 002000 - 002500) Deck, Discharge Chute And Baffles Parts Diagram

Pro-Master 52" Zero-Turn Mower, 25hp Kohler

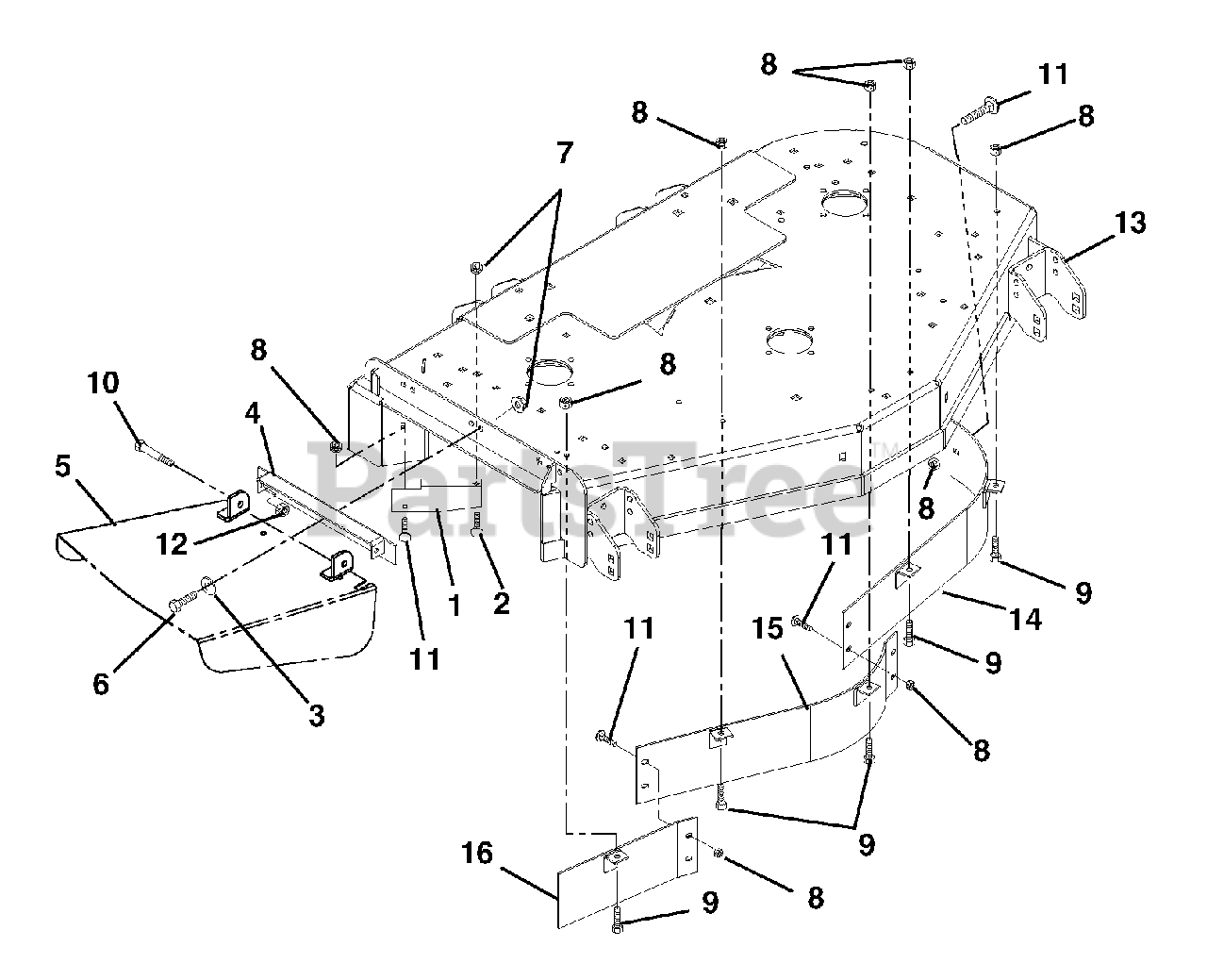

Deck, Discharge Chute And Baffles Parts Diagram

  • Title

1

Gravely 04921951

Deflector, 52" (044, 054)
(Superseded to 04921953)

Note: (044, 054)

$30.99

$

Usually ships in 4-12 days

0

1

Gravely 09238451

Deflector, 60" (051, 055)

Note: (051, 055)

$28.99

$

Usually ships in 4-12 days

0

1

Gravely 04939851

Deflector (042, 043, 310, 311)
(Superseded to 04939853)

Note: (042, 043, 310, 311)

$59.99

$

Usually ships in 4-12 days

0

2

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.99

$

In Stock, only 3 left!

0

3

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083 (042, 043, 044, 054, 310, 311)
(Superseded to 06401023)

Note: (042, 043, 044, 054, 310, 311)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 09286753

Weldment Discharge Chute Bracket (042, 043, 044, 054, 310, 311)

Note: (042, 043, 044, 054, 310, 311)

$153.99

$

Usually ships in 4-12 days

0

4

Gravely 09238353

Weldment Discharge Chute Bracket (051, 055)
(Superseded to 00253253)

Note: (051, 055)

$92.99

$

Usually ships in 4-12 days

0

5

Gravely 09286153

Chute, Discharge (042, 043, 044, 054, 310, 311)

Note: (042, 043, 044, 054, 310, 311)

$191.99

$

Usually ships in 4-12 days

0

5

Gravely 09250653

Chute, Discharge (051, 055)
(Superseded to 00198253)

Note: (051, 055)

$233.99

$

In Stock, only 1 left!

0

6

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 07056500

Bolt, Shoulder .38-16 x .50 Socket Head
(Superseded to 07002030)

$6.49

$

In Stock, only 2 left!

0

11

Gravely 06215700

Bolt, Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

12

Gravely 06529600

Nut, Locking Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 09284453

Weldment, 52" Mower Deck (044, 054)
(Superseded to 59225400)

Note: (044, 054)

$921.99

$

Usually ships in 4-12 days

0

13

Gravely 09288253

Weldment, 60" Mower Deck (051, 055)
(Superseded to 59228200)

Note: (051, 055)

$1793.99

$

Usually ships in 4-12 days

0

13

Gravely 04940253

Weldment, 44" Mower Deck Float (042, 310)
(Superseded to 59225300)

Note: (042, 310)

$790.99

$

Usually ships in 4-12 days

0

13

Gravely 09283853

Weldment, 48" Mower Deck (043, 311)

Note: (043, 311)

$1044.99

$

Usually ships in 4-12 days

0

14

Gravely 04921651

Weldment, Upper Baffle Left - 52" (044, 054)
(Superseded to 04921653)

Note: (044, 054)

$58.99

$

In Stock, only 3 left!

0

14

Gravely 09241651

Weldment, Upper Baffle Left - 60" (051, 055)

Note: (051, 055)

$112.99

$

In Stock, only 1 left!

0

14

Gravely 04938951

Weldment, Baffle Left Front - 44" (042, 310)

Note: (042, 310)

$96.99

$

Usually ships in 4-12 days

0

14

Gravely 04918951

Weldment, Upper Baffle Left - 48" (043, 311)
(Superseded to 04918953)

Note: (043, 311)

$77.99

$

Usually ships in 4-12 days

0

15

Gravely 04921751

Weldment, Baffle Center Front - 52" (044, 054)

Note: (044, 054)

$75.99

$

In Stock, Qty 5

0

15

Gravely 09241751

Weldment, Baffle Center Front - 60" (051, 055)

Note: (051, 055)

$102.99

$

In Stock, only 1 left!

0

15

Gravely 04939051

Weldment, Baffle Center Front - 44" (042, 310)

Note: (042, 310)

$159.99

$

Usually ships in 4-12 days

0

15

Gravely 04919051

Weldment, Upper Baffle Center-48" (043, 311)
(Superseded to 04919053)

Note: (043, 311)

$62.99

$

Usually ships in 4-12 days

0

16

Gravely 04921851

Weldment, Baffle Right Front - 52" (044, 054)
(Superseded to 04921853)

Note: (044, 054)

$40.99

$

In Stock, Qty 7

0

16

Gravely 09241851

Weldment, Baffle Right Front - 60" (051, 055)

Note: (051, 055)

$58.99

$

Usually ships in 4-12 days

0

16

Gravely 04939151

Weldment, Baffle Right Front - 44" (042, 310)

Note: (042, 310)

$103.99

$

Usually ships in 4-12 days

0

16

Gravely 04919651

Weldment, Upper Baffle Right - 48" (043, 311)
(Superseded to 04919653)

Note: (043, 311)

$35.99

$

Usually ships in 4-12 days

0
