992056 (PM 34Z) - Gravely Pro-Master 34" Zero-Turn Mower, 15hp Kawasaki (SN: 002500 - 004999) Fuel Tanks And Hoses Parts Diagram

Pro-Master 34" Zero-Turn Mower, 15hp Kawasaki

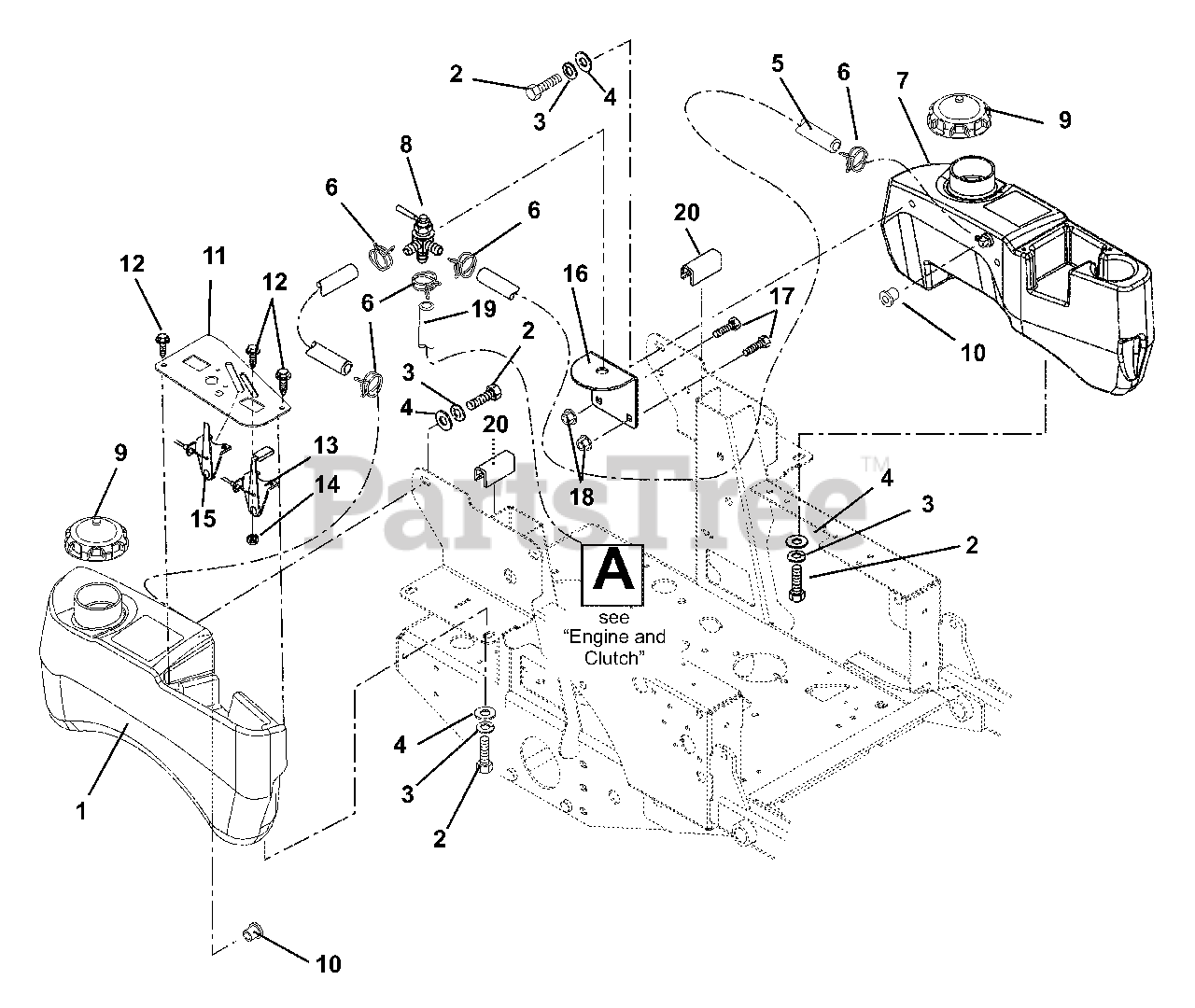

Fuel Tanks And Hoses Parts Diagram

  • Title

1

Gravely 09298200

Tank, Gas- Right Hand

$

$

Not available

2

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 16

0

3

Gravely 06308600

Washer, Locking .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

5

Gravely 00365900

Hose, Gas Line 6.25"- .25" I.D.

$5.99

$

Usually ships in 4-12 days

0

6

Gravely 06939100

Hose, Clamp

$3.99

$

In Stock, Qty 20+

0

7

Gravely 00262700

Tank, Left Hand Fuel (Eye-Q)

Note: (Eye-Q)

$

$

Not available

8

Gravely 09258200

Valve, Fuel

$45.99

$

In Stock, Qty 9

0

9

Gravely 00273700

Cap, Fuel
(Superseded to 03859100)

$28.99

$

In Stock, only 2 left!

0

10

Gravely 050246

Bushing
(Superseded to 07511400)

$3.49

$

In Stock, Qty 20+

0

11

Gravely 00257351

Panel, Control

$27.99

$

Usually ships in 4-12 days

0

12

Gravely 06116700

Screw, Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06900002

Cable, Throttle Choke

$51.99

$

Usually ships in 4-12 days

0

14

Gravely 06536000

Nut, Locking Nylon 10-24 With Insert
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

15

Gravely 06949500

Cable, Choke

$39.99

$

Usually ships in 4-12 days

0

16

Gravely 00361951

Bracket, Fuel Valve Mounting

$6.99

$

Usually ships in 4-12 days

0

17

Gravely 06215700

Bolt, Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

18

Gravely 06543100

Nut, Top Locking Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 00366000

Hose, Gas Line 29"- .25" I.D.

$

$

Not available

20

Gravely 049767

Cowl Strip 1.75" Long
(Superseded to 00918200)

$5.99

$

Usually ships in 4-12 days

0
