992059 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 27hp Kawasaki (SN: 000101 - 000499) Fuel Tanks And Hoses-Gas Parts Diagram

Pro-Master 72" Zero-Turn Mower, 27hp Kawasaki

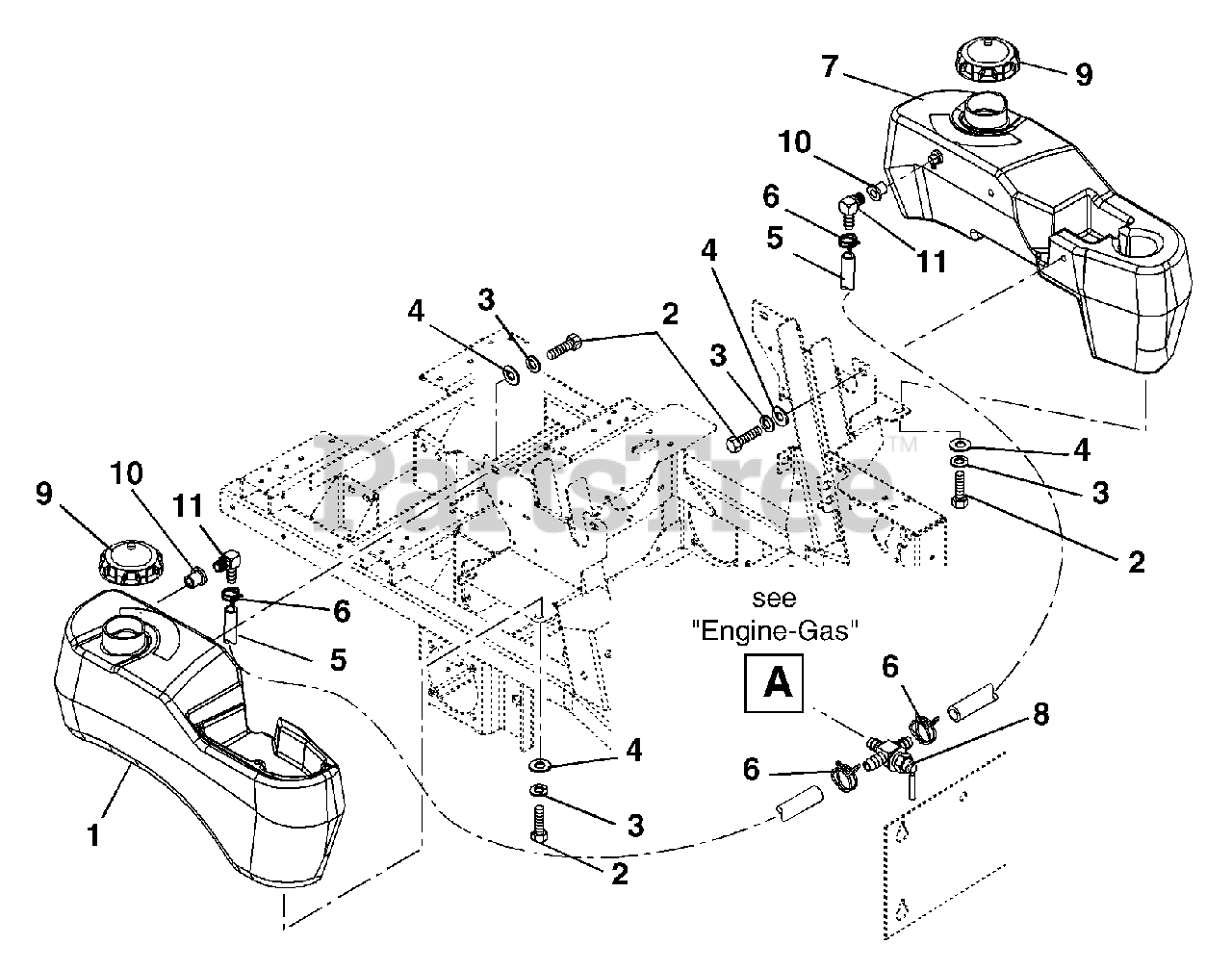

Fuel Tanks And Hoses-Gas Parts Diagram

  • Title

1

Gravely 09290700

Tank, Gas Fuel-Right Hand (058, 059)
(Superseded to 03963300)

Note: (058, 059)

$491.99

$

Usually ships in 4-12 days

0

2

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 10

0

3

Gravely 06308600

Washer, Locking .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 021134

Gas Line-Bulk .25 I.D. (058, 059)
(Superseded to 03278100)

Note: (058, 059)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06939100

Clamp, Hose Wire .49/.51 x .116 (058, 059)

Note: (058, 059)

$3.99

$

In Stock, Qty 20+

0

7

Gravely 09290800

Tank, Gas Fuel-Left Hand (058, 059)
(Superseded to 00191200)

Note: (058, 059)

$394.99

$

Usually ships in 4-12 days

0

8

Gravely 09258200

Valve, Fuel (058, 059)

Note: (058, 059)

$45.99

$

In Stock, Qty 7

0

9

Gravely 09239500

Cap, Gas (058, 059)
(Superseded to 03859100)

Note: (058, 059)

$28.99

$

In Stock, only 3 left!

0

10

Gravely 07511400

Bushing

$3.49

$

In Stock, Qty 12

0

11

Gravely 21539200

Fitting, Tank (058, 059)

Note: (058, 059)

$14.99

$

In Stock, only 3 left!

0
