992059 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 27hp Kawasaki (SN: 001501 & Above) Engine - Gas Parts Diagram

Pro-Master 72" Zero-Turn Mower, 27hp Kawasaki

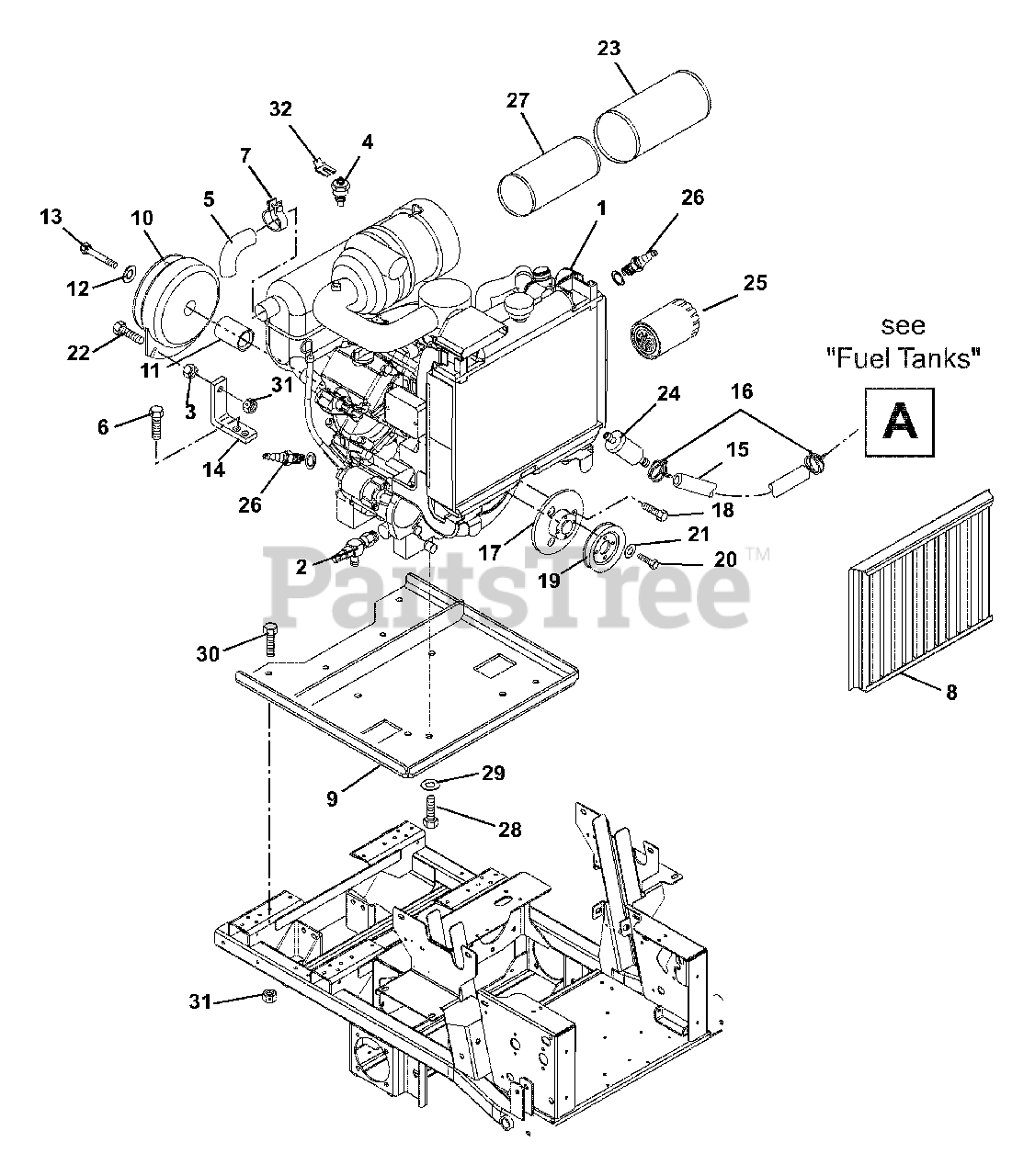

Engine - Gas Parts Diagram

  • Title

1

Gravely 08269800

Engine, 27HP Gas Kawasaki

$

$

Not available

2

Gravely 07067400

Drain, Oil

$56.99

$

Usually ships in 4-12 days

0

3

Gravely 06536100

Nut, Jam .312-18
(Superseded to 06500909)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 09058800

Temperature Sender

$111.99

$

Usually ships in 4-12 days

0

5

Gravely 09268500

Elbow

$59.99

$

Usually ships in 4-12 days

0

6

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 01551500

Clamp, Muffler Assembly

$21.99

$

Usually ships in 4-12 days

0

8

Gravely 09268700

Screen

$

$

Not available

9

Gravely 09264951

Weldment, Engine Plate

$54.99

$

Usually ships in 4-12 days

0

10

Gravely 09266700

Clutch, Electric
(Superseded to 00389900)

$504.99

$

Usually ships in 4-12 days

0

Gravely 59205200

Kit, Break Pole Module Replacement

Note: NS

$

$

Not available

11

Gravely 09263800

Spacer, Clutch

$

$

Not available

12

Gravely 06309300

Washer, Locking .44 x .109
(Superseded to 06300121)

$2.99

$

In Stock, only 2 left!

0

13

Gravely 05968300

Bolt, Hex M10 x 1.5 x 60 8.8

$4.99

$

Usually ships in 4-12 days

0

14

Gravely 09264651

Anchor, Clutch

$5.99

$

Usually ships in 4-12 days

0

15

Gravely 021134

Gas Line, Bulk .25 ID
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06939100

Clamp, Hose Wire .49/.51 x .116

$3.99

$

In Stock, Qty 7

0

17

Gravely 09264400

Adapter, Sheave (Kawasaki)

Note: (Kawasaki)

$

$

Not available

18

Gravely 05978700

Bolt, M8-1.25 x 25

$

$

Not available

19

Gravely 07328100

Sheave, Poly-V 1.0 x 3.25

$

$

Not available

20

Gravely 05946800

Bolt, Hex .25-20 x .50 Grade 5
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

21

Gravely 06308400

Washer, Locking .25 x .062 Regular
(Superseded to 06401009)

$0.99

$

In Stock, Qty 11

0

22

Gravely 05952400

Bolt, Hex .31-18 x 1.50 Grade 5
(Superseded to 05901710)

$1.99

$

In Stock, Qty 6

0

23

Gravely 21537000

Air Filter

$28.99

$

In Stock, Qty 20+

0

24

Gravely 21527800

Fuel Filter

$30.99

$

Usually ships in 4-12 days

0

25

Gravely 21380000

Oil Filter
(Superseded to 21535800)

$18.99

$

In Stock, Qty 20+

0

26

Gravely 21538500

Spark Plug

$3.99

$

In Stock, Qty 20+

0

27

Gravely 21536900

Element, Precleaner

$29.99

$

In Stock, only 2 left!

0

28

Gravely 05943000

Bolt, Hex M10 x 1.5 x 25

$2.99

$

Usually ships in 4-12 days

0

29

Gravely 06309300

Washer, Locking .44 x .109 Regular
(Superseded to 06300121)

$2.99

$

In Stock, only 2 left!

0

30

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

31

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 09280800

Terminal, Male Quick Connect

$3.49

$

Usually ships in 4-12 days

0
