992061 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu (SN: 000101 - 000499) Mounting Arms And Belt Guards Parts Diagram

Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu

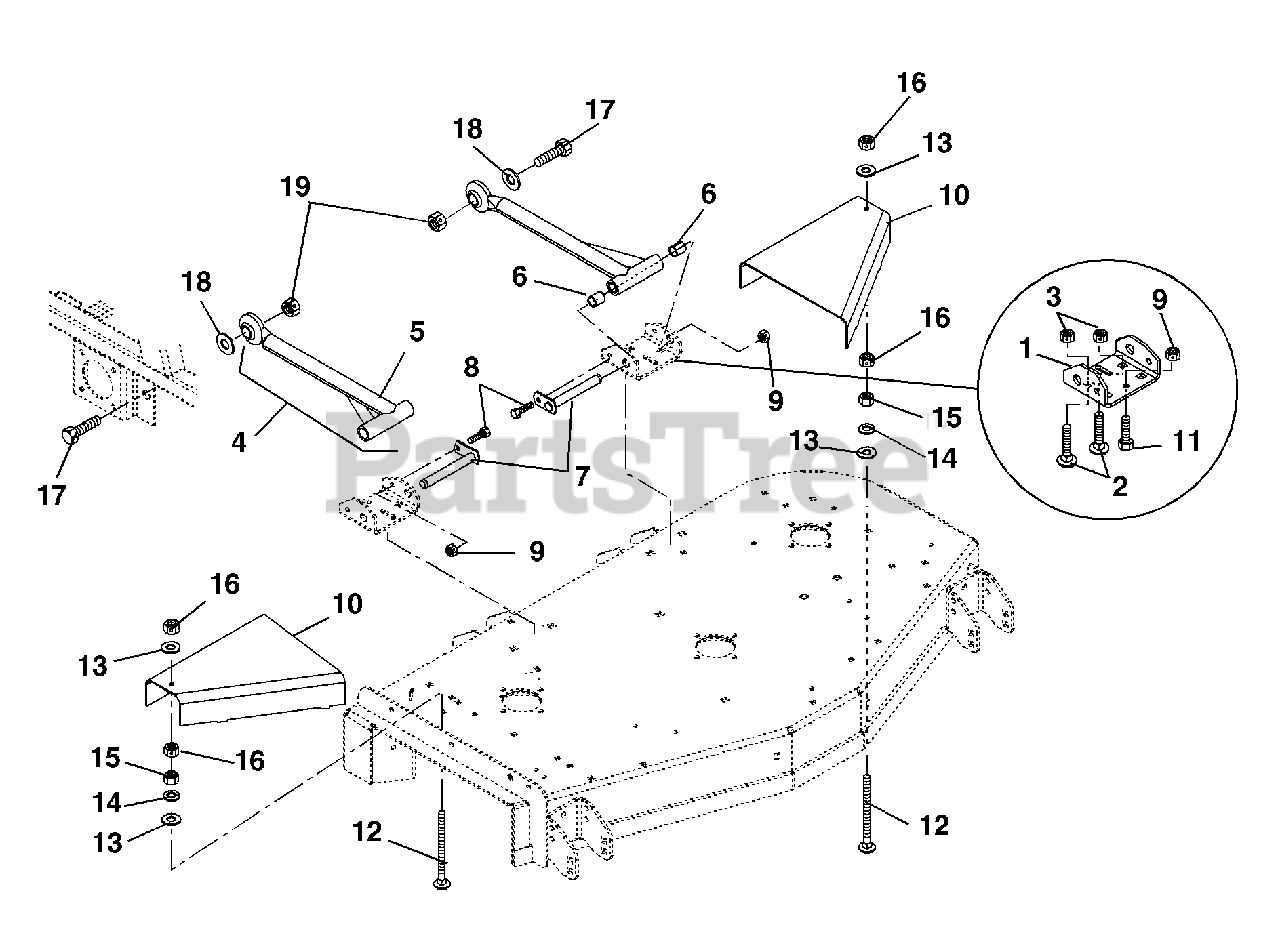

Mounting Arms And Belt Guards Parts Diagram

  • Title

1

Gravely 09240453

Bracket, Mower Mounting (Rear)

Note: (Rear)

$34.99

$

Usually ships in 4-12 days

0

2

Gravely 06221200

Bolt, Round Head Square Neck .50-13 x .75 Grade 5

$5.99

$

Usually ships in 4-12 days

0

3

Gravely 06519700

Nut, Locking Center Jam .50-13

$2.49

$

Usually ships in 4-12 days

0

4

Gravely 09247800

Assembly, Mower Mounting Arm

Note: (Includes Items 5 and 6)

$270.99

$

Usually ships in 4-12 days

0

5

Gravely 09247951

Weldment, Mower Mounting Arm

$255.99

$

In Stock, only 1 left!

0

6

Gravely 05435900

Bearing .75 x .875 x 1.00

$5.99

$

In Stock, only 4 left!

0

7

Gravely 09238900

Weldment, Mower Mounting Pin

$61.99

$

In Stock, only 1 left!

0

8

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 09240853

Guard, Pulley Left Hand (058, 060, 318, 319)
(Superseded to 09240851)

Note: (058, 060, 318, 319)

$62.99

$

Usually ships in 4-12 days

0

10

Gravely 09240753

Guard, Pulley Right Hand (058, 060, 318, 319)
(Superseded to 09240751)

Note: (058, 060, 318, 319)

$46.99

$

In Stock, only 2 left!

0

10

Gravely 09252553

Guard, Right Hand Pulley (059, 061)

Note: (059, 061)

$93.99

$

Usually ships in 4-12 days

0

10

Gravely 09252453

Guard, Left Hand Pulley (059, 061)

Note: (059, 061)

$103.99

$

Usually ships in 4-12 days

0

11

Gravely 06223900

Bolt, Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

12

Gravely 06225300

Bolt, Round Head Square Neck Full Thread .312-18 x 3.50 (058, 060, 318, 319)

Note: (058, 060, 318, 319)

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 06225300

Bolt, Round Head Square Neck Full Thread .312-18 x 3.50 (059, 061)

Note: (059, 061)

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 06437200

Washer, Flat Steel .344 x .688 x .06 (058, 060, 318, 319)
(Superseded to 06401017)

Note: (058, 060, 318, 319)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06437200

Washer, Flat Steel .344 x .688 x .065 (059, 061)
(Superseded to 06401017)

Note: (059, 061)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06308600

Washer, Locking .31 x .078 (058, 060, 318, 319)
(Superseded to 06300119)

Note: (058, 060, 318, 319)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06308600

Washer, Locking .31 x .078 (059, 061)
(Superseded to 06300119)

Note: (059, 061)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06529200

Nut, Hex .31-18 (058, 060, 318, 319)
(Superseded to 06500938)

Note: (058, 060, 318, 319)

$0.99

$

In Stock, Qty 10

0

15

Gravely 06529200

Nut, Hex .31-18 (059, 061)
(Superseded to 06500938)

Note: (059, 061)

$0.99

$

In Stock, Qty 10

0

16

Gravely 06529800

Nut, Locking Center .31-18 (058, 060, 318, 319)
(Superseded to 06500826)

Note: (058, 060, 318, 319)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06529800

Nut, Locking Center .31-18 (059, 061)
(Superseded to 06500826)

Note: (059, 061)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 05969500

Bolt, Hex .875-9 x 2.75 Grade 5

$7.99

$

In Stock, only 1 left!

0

18

Gravely 06444700

Washer, Flat Steel .875 x 1.50 x .120
(Superseded to 06401207)

$3.99

$

In Stock, Qty 20+

0

19

Gravely 06539700

Nut, Locking Center .875-9

$5.99

$

In Stock, Qty 11

0
