992063 (2560 XL) - Ariens Zoom 60" Zero-Turn Mower, 25hp Kohler (SN: 000101 - 001999) Motors And Wheels Parts Diagram

Zoom 60" Zero-Turn Mower, 25hp Kohler

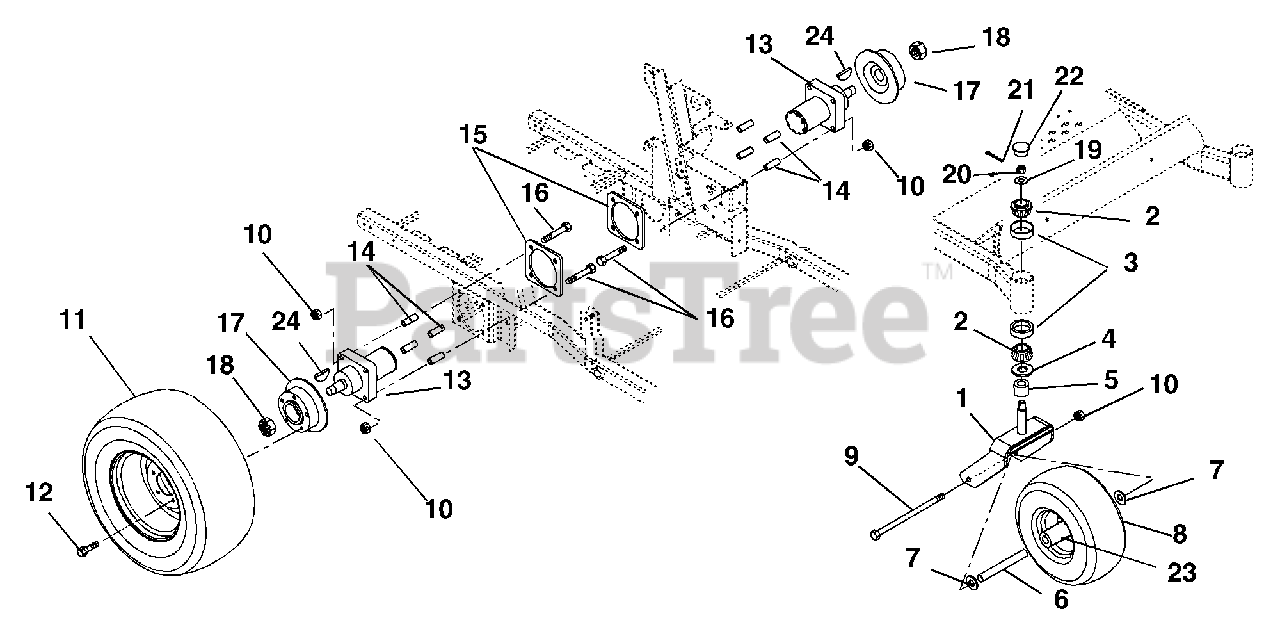

Motors And Wheels Parts Diagram

  • Title

1

Ariens 09282451

FORK - BLACK
(Superseded to 59208600)

$166.99

$

Usually ships in 4-12 days

0

2

Ariens 69000300

BRG, CONE W/ GREASE
(Superseded to 05406900)

$20.99

$

In Stock, Qty 20+

0

3

Ariens 05407000

BRG-CUP1.980X.420

$18.99

$

In Stock, Qty 20+

0

4

Ariens 00531400

BEARING SEAL 1.5 X 2 X .18

$10.99

$

In Stock, Qty 20+

0

5

Ariens 00531500

SPACER 1.005X1.5075X.375

$8.49

$

In Stock, Qty 19

0

6

Ariens 09231800

SPACER - WHEEL

$50.99

$

Usually ships in 4-12 days

0

7

Ariens 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$6.49

$

In Stock, Qty 20+

0

8

Ariens 07147800

WHEEL/TIRE ASM
(Superseded to 59219000)

$197.99

$

In Stock, only 2 left!

0

Ariens 07147100

TIRE, 15X6-6
(Superseded to 07100905)

$87.99

$

In Stock, only 2 left!

0

9

Ariens 05961200

@BLT-HEX .50-13X9.00 GR5 YWZC
(Superseded to 05901930)

$11.99

$

In Stock, Qty 20+

0

10

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

11

Ariens 07148900

WHL/TIRE 23X10.50-12 MULTITRAC
(Superseded to 07101116)

Note: (062)

$319.99

$

In Stock, only 1 left!

0

Ariens 07152300

TIRE/WHEEL ASSY, 23X10.50-12
(Superseded to 59101000)

Note: (062)

$298.99

$

Usually ships in 4-12 days

0

Ariens 07149000

TIRE 23X10.50-12 MULTITRAC C/S

Note: (062, 063)

$

$

Not available

12

Ariens 07067700

BLT, LUG .50-20 X 1.38
(Superseded to 07000143)

$3.99

$

In Stock, Qty 20+

0

13

Ariens 09262800

WHEEL MOTOR, MB15

Note: (Includes 18 & 24)

$923.99

$

Usually ships in 4-12 days

0

14

Ariens 05531400

BSHG-SLV .513X.748X2.129

$14.99

$

Usually ships in 4-12 days

0

15

Ariens 09278500

PLATE, MOTOR SUPPORT

$

$

Not available

16

Ariens 07067300

BOLT, WHEEL MOTOR 1/2-13X5.00

$7.49

$

Usually ships in 4-12 days

0

17

Ariens 09247100

HUB & DISK (PARK) 8" 1/2 HOLE

$303.99

$

Usually ships in 4-12 days

0

18

Ariens 06541900

NUT-LK-JAM-PTCH 1.00-20

Note: (Included with 13)

$33.99

$

In Stock, only 1 left!

0

19

Ariens 06441500

WSHR-FL-STL.755X1.375X.062YWZC
(Superseded to 06401016)

$3.99

$

In Stock, Qty 20+

0

20

Ariens 00595500

NUT, SLOTTED .75-16

$3.99

$

In Stock, Qty 12

0

21

Ariens 06712300

@PIN-CTR .16X1.00 EXTPRSQCT YZ

$2.49

$

In Stock, only 4 left!

0

22

Ariens 20655400

CAP,DUST

$10.99

$

In Stock, Qty 20+

0

23

Ariens 05435700

BRG, 25MM ID X 52MM OD X 15MM

$25.99

$

In Stock, Qty 20+

0

24

Ariens 06607800

KEY-WDRF .31X1.00 SFT #B

Note: (Included with 13)

$4.99

$

Usually ships in 4-12 days

0
