992063 (2560 XL) - Ariens Zoom 60" Zero-Turn Mower, 25hp Kohler (SN: 000101 - 001999) Rollers Parts Diagram

Zoom 60" Zero-Turn Mower, 25hp Kohler

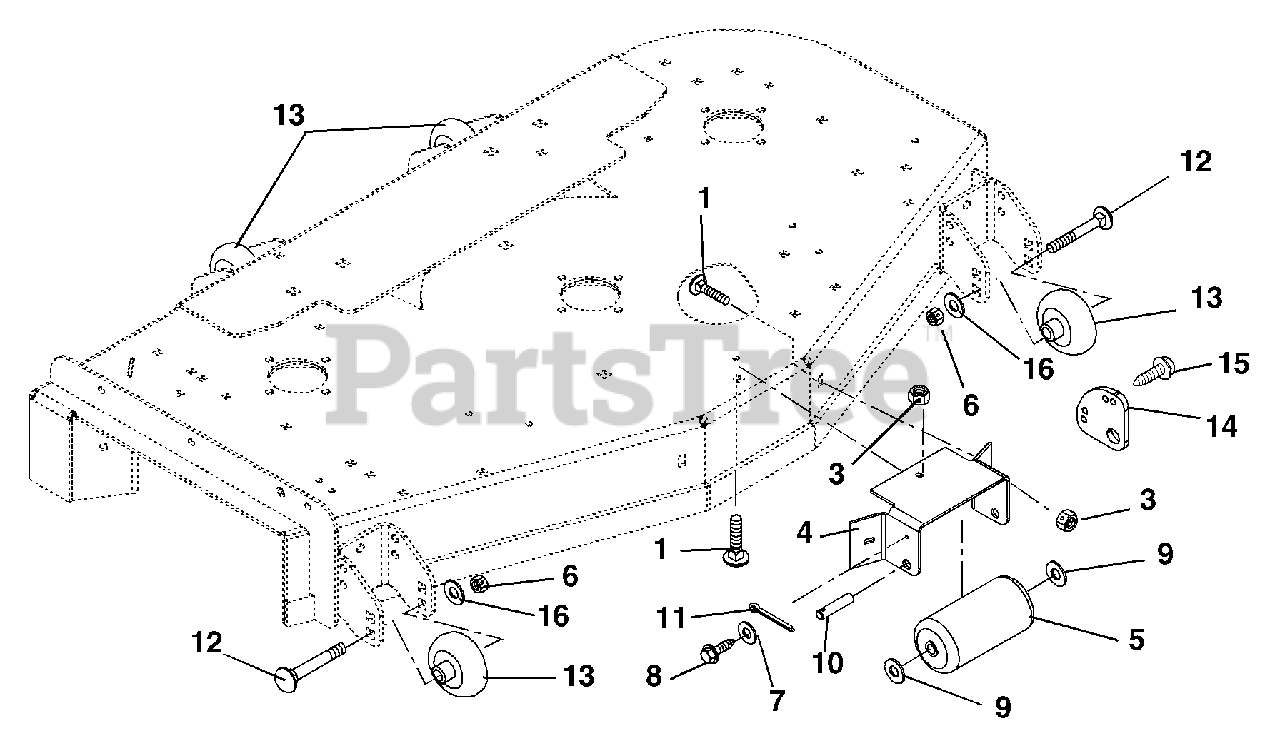

Rollers Parts Diagram

  • Title

1

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

Note: (062)

$2.99

$

In Stock, only 2 left!

0

2

Ariens 06221400

@BLT-RDHDSQNK .38-16X1.25 G2YZ
(Superseded to 06224100)

Note: (063)

$2.99

$

In Stock, Qty 20+

0

3

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 04920859

BRKT,ANTI-SCALP ROLL'R-ORANGE

Note: (062)

$

$

Not available

4

Ariens 09288300

BRACKET, ANTI-SCALP ROLLER

Note: (063)

$

$

Not available

5

Ariens 09078100

ROLLER

$48.99

$

In Stock, Qty 6

0

6

Ariens 06540600

@NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

7

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

8

Ariens 07414200

SCR-TAP .25-20X.75 HWH TR YWZ
(Superseded to 07400131)

$1.49

$

In Stock, Qty 6

0

9

Ariens 06442800

@WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

10

Ariens 09075300

PIN

$40.99

$

In Stock, only 2 left!

0

11

Ariens 06713100

@PIN-CTR .25X2.00 YWZC
(Superseded to 06700213)

$4.99

$

Usually ships in 4-12 days

0

12

Ariens 06225900

BLT-RDHDSQNK .50-13X5.00 GR5YZ
(Superseded to 06200505)

$

$

Not available

13

Ariens 09253700

WHEEL, 3X5

$15.99

$

In Stock, Qty 20+

0

14

Ariens 09290359

ANTI-SCALP WASHER - ORANGE

$5.99

$

Usually ships in 4-12 days

0

15

Ariens 07401900

SCR-TAP.250-20X.62 HWH BLK ZC
(Superseded to 07410400)

$2.49

$

In Stock, Qty 5

0

16

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, only 4 left!

0
