992064 (PM 144Z) - Gravely Pro-Master 44" Zero-Turn Mower, 17hp Kawasaki (SN: 000500 - 004999) Mechanical Lift Parts Diagram

Pro-Master 44" Zero-Turn Mower, 17hp Kawasaki

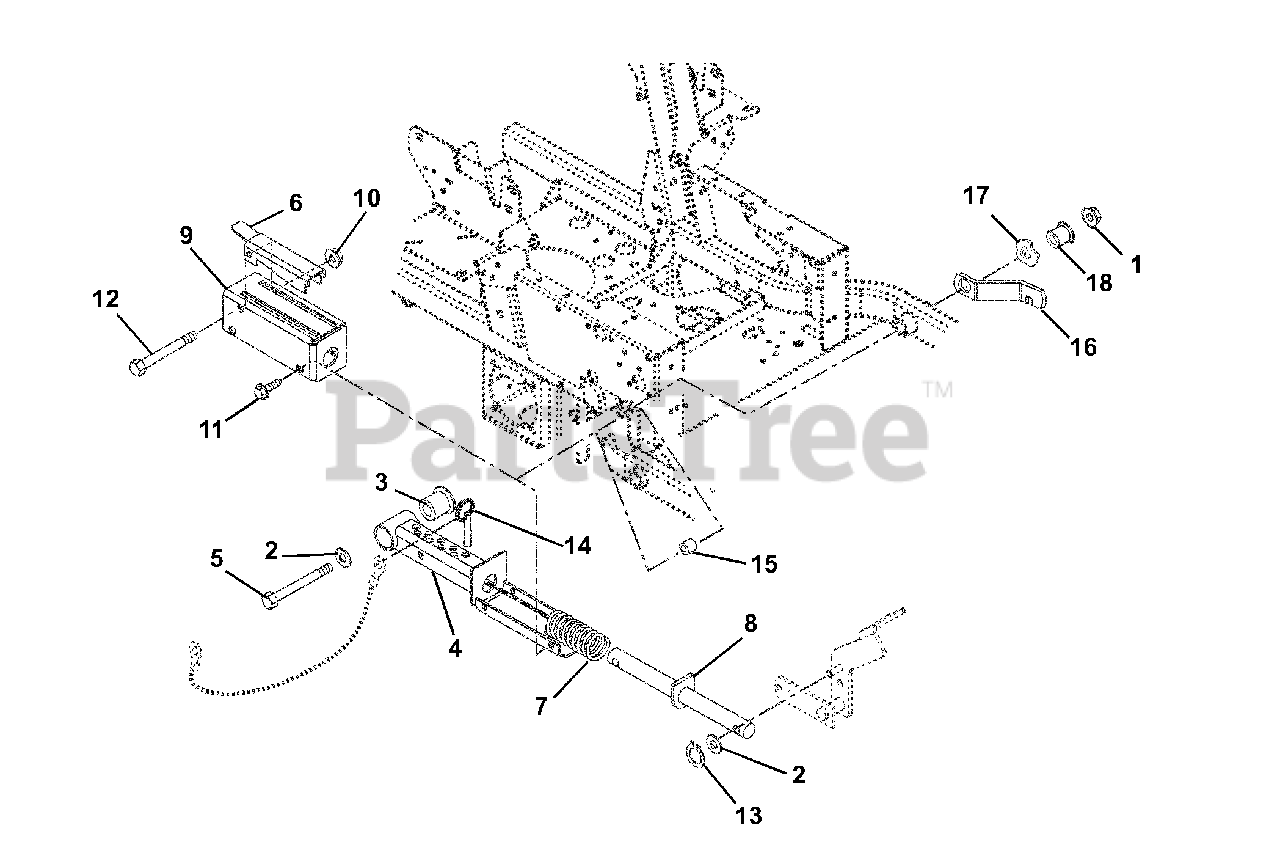

Mechanical Lift Parts Diagram

  • Title

1

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 06430200

Washer, Flat Steel .531 x 1.25 x .10
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 07053100

Bearing, Pedestal Powdered Metal
(Superseded to 07000031)

$79.99

$

In Stock, Qty 7

0

4

Gravely 09299251

Weldment, Mechanical Lift
(Superseded to 09286251)

$216.99

$

Usually ships in 4-12 days

0

5

Gravely 05962200

Bolt-Hex .50-13 x 5.00 Grade 5
(Superseded to 05901905)

$4.99

$

In Stock, Qty 20+

0

6

Gravely 09299651

Lock-Up, Mechanical Lift

$28.99

$

Usually ships in 4-12 days

0

7

Gravely 08300004

Spring, Compression 1.13 x 1.47 x 5.10

$

$

Not available

8

Gravely 09299300

Weldment, Mechanical Lift Shaft

$33.99

$

Usually ships in 4-12 days

0

9

Gravely 09299451

Weldment, Mechanical Lift Cover

$45.99

$

Usually ships in 4-12 days

0

10

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0

12

Gravely 05961100

Bolt, Hex .38-16 x 3.25 Grade 5
(Superseded to 05901817)

$3.99

$

In Stock, only 1 left!

0

13

Gravely 05717100

Ring, Retaining External .50 x .05

$2.49

$

Usually ships in 4-12 days

0

14

Gravely 01593500

Pin, Spring Ball .375 O.D. x 1.50

$5.99

$

In Stock, only 2 left!

0

15

Gravely 09293600

Spacer .516 ID x 1.000 OD x .875

$4.99

$

Usually ships in 4-12 days

0

16

Gravely 09250300

Latch

$

$

Not available

17

Gravely 09252000

Washer-Wave .076 x 1.120 x .080

$3.49

$

Usually ships in 4-12 days

0

18

Gravely 05532100

Bushing-Flange .515 x .750 x .275 x 1.120

$

$

Not available
