992064 (PM 144Z) - Gravely Pro-Master 44" Zero-Turn Mower, 17hp Kawasaki (SN: 005000 & Above) Mechnical Lift Parts Diagram

Pro-Master 44" Zero-Turn Mower, 17hp Kawasaki

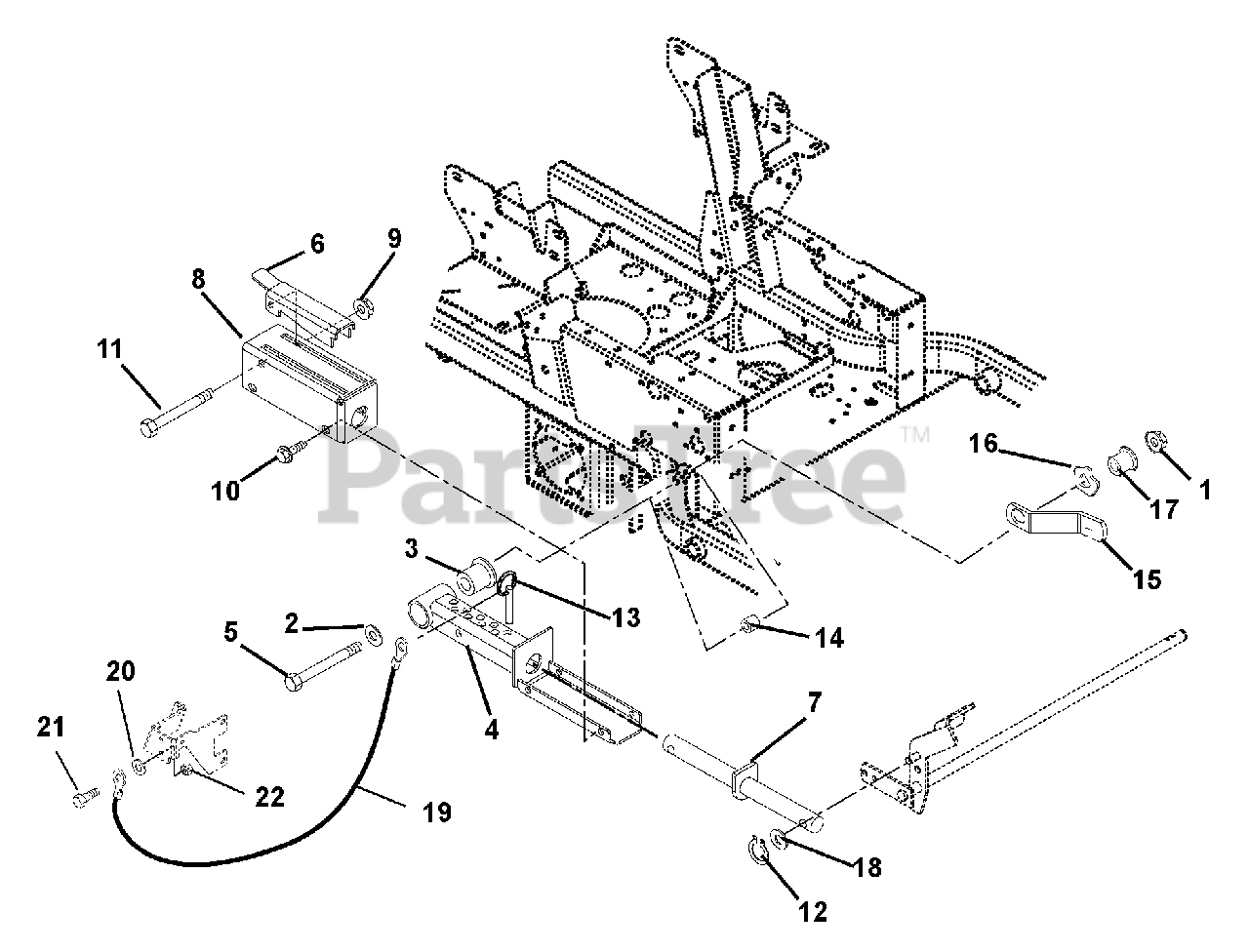

Mechnical Lift Parts Diagram

  • Title

1

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$2.49

$

In Stock, Qty 20+

0

2

Gravely 06430200

WSHR-FL-STL .531X1.250X.10 YWZ
(Superseded to 06401128)

$2.49

$

In Stock, Qty 20+

0

3

Gravely 07053100

BEARING, PEDESTAL
(Superseded to 07000031)

$88.99

$

In Stock, Qty 9

0

4

Gravely 09286251

WMT, MECHANICAL LIFT

$231.99

$

Usually ships in 4-12 days

0

5

Gravely 05962200

BLT-HEX .50-13X5.00 GR5 YWZC
(Superseded to 05901905)

$6.49

$

In Stock, Qty 20+

0

6

Gravely 09299651

LOCK-UP, MECH LIFT

$29.99

$

Usually ships in 4-12 days

0

7

Gravely 09291500

WMT, MECH. LIFT SHAFT (.62)

$160.99

$

Usually ships in 4-12 days

0

8

Gravely 09299451

WMT, MECH LIFT COVER

$47.99

$

Usually ships in 4-12 days

0

9

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$2.49

$

In Stock, Qty 20+

0

11

Gravely 05961100

BLT-HEX .38-16X3.25 GR5 YWZC
(Superseded to 05901817)

$5.49

$

In Stock, Qty 14

0

12

Gravely 05709200

RG-RTNG-EXT .625X.050

$3.49

$

Usually ships in 4-12 days

0

13

Gravely 01593500

PIN, SPRING BALL .375OD X 1.50

$6.99

$

In Stock, Qty 13

0

14

Gravely 09293600

SPACER .516X1.000X.875

$5.99

$

In Stock, only 2 left!

0

15

Gravely 09250300

LATCH

$

$

Not available

16

Gravely 09252000

WASHER-WAVE .760X1.120X.080

$4.99

$

Usually ships in 4-12 days

0

17

Gravely 05532100

BSHG-FLG .515X.750X.285X1.120

$

$

Not available

18

Gravely 06442800

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$3.49

$

In Stock, Qty 20+

0

19

Gravely 06927100

CBL,HOOD

$15.99

$

In Stock, only 1 left!

0

20

Gravely 06439500

WSHR-FL-STL .265X.50X.087YWZC
(Superseded to 06401120)

$1.99

$

Usually ships in 4-12 days

0

21

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.99

$

In Stock, Qty 20+

0
