992065 (PM 44Z) - Gravely Pro-Master 44" Zero-Turn Mower, 17hp Kawasaki (SN: 000101 - 001499) Mounting Arms, Belt Guards And Rollers Parts Diagram

Pro-Master 44" Zero-Turn Mower, 17hp Kawasaki

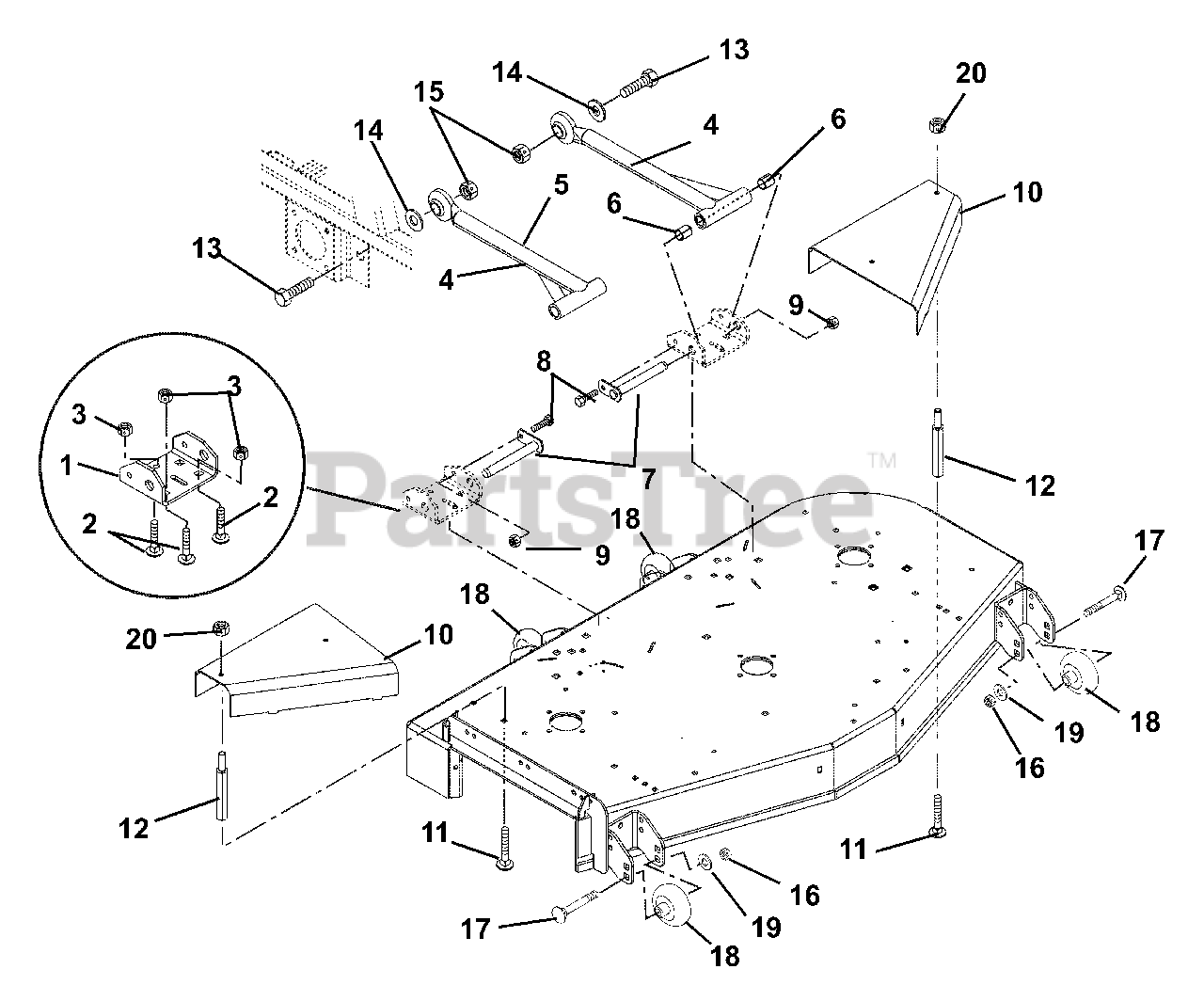

Mounting Arms, Belt Guards And Rollers Parts Diagram

  • Title

1

Gravely 00271300

Bracket, Mower Mounting (Rear)

Note: (Rear)

$

$

Not available

2

Gravely 06221200

Bolt, Round Head Square Neck .50-13 x .75 Grade 5

$6.49

$

Usually ships in 4-12 days

0

3

Gravely 06519700

Nut, Locking Center Jam .50-13

$2.99

$

In Stock, only 3 left!

0

4

Gravely 09282000

Assembly, Mower Mounting

Note: (Includes Items 5 and 6)

$217.99

$

Usually ships in 4-12 days

0

5

Gravely 09282151

Mower Mounting Arm

$145.99

$

Usually ships in 4-12 days

0

6

Gravely 05435900

Bearing, .75 x .875 x 1.00

$6.99

$

In Stock, Qty 20+

0

7

Gravely 09238900

Weldment, Mower Mounting Pin

$63.99

$

In Stock, Qty 6

0

8

Gravely 180121

Bolt-Hex .380-16 x .88
(Superseded to 05932600)

$2.99

$

In Stock, only 1 left!

0

9

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 09283553

Guard, Pulley

$85.99

$

Usually ships in 4-12 days

0

11

Gravely 06200002

Bolt,Round Head Square Neck .31-18 x .75
(Superseded to 06200425)

$4.99

$

In Stock, Qty 7

0

12

Gravely 00271200

Standoff, 2.75 x 5/16-18

$35.99

$

In Stock, Qty 6

0

13

Gravely 05900003

Bolt, Hex .875-9 x 3.00

$7.49

$

Usually ships in 4-12 days

0

14

Gravely 05512600

Bushing-Sleeve .875 x 1.250 x .531

$6.49

$

In Stock, only 2 left!

0

15

Gravely 06539700

Nut, Locking Center .875-9

$6.49

$

In Stock, Qty 9

0

16

Gravely 06540600

Nut, Locking Nylon .50-13
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

17

Gravely 06225900

Bolt, Round Head Square Neck .50-13 x 5.00 Grade 2
(Superseded to 06200505)

$

$

Not available

18

Gravely 09253700

Wheel, 3 x 5

$15.99

$

In Stock, Qty 20+

0

19

Gravely 06441900

Washer, Flat Steel .531 x 1.06 x .095
(Superseded to 06401015)

$1.49

$

In Stock, only 1 left!

0

20

Gravely 06543100

Nut-Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0
