992065 (PM 44Z) - Gravely Pro-Master 44" Zero-Turn Mower, 17hp Kawasaki (SN: 001500 - 004999) Mounting Arms, Belt Guards And Rollers Parts Diagram

Pro-Master 44" Zero-Turn Mower, 17hp Kawasaki

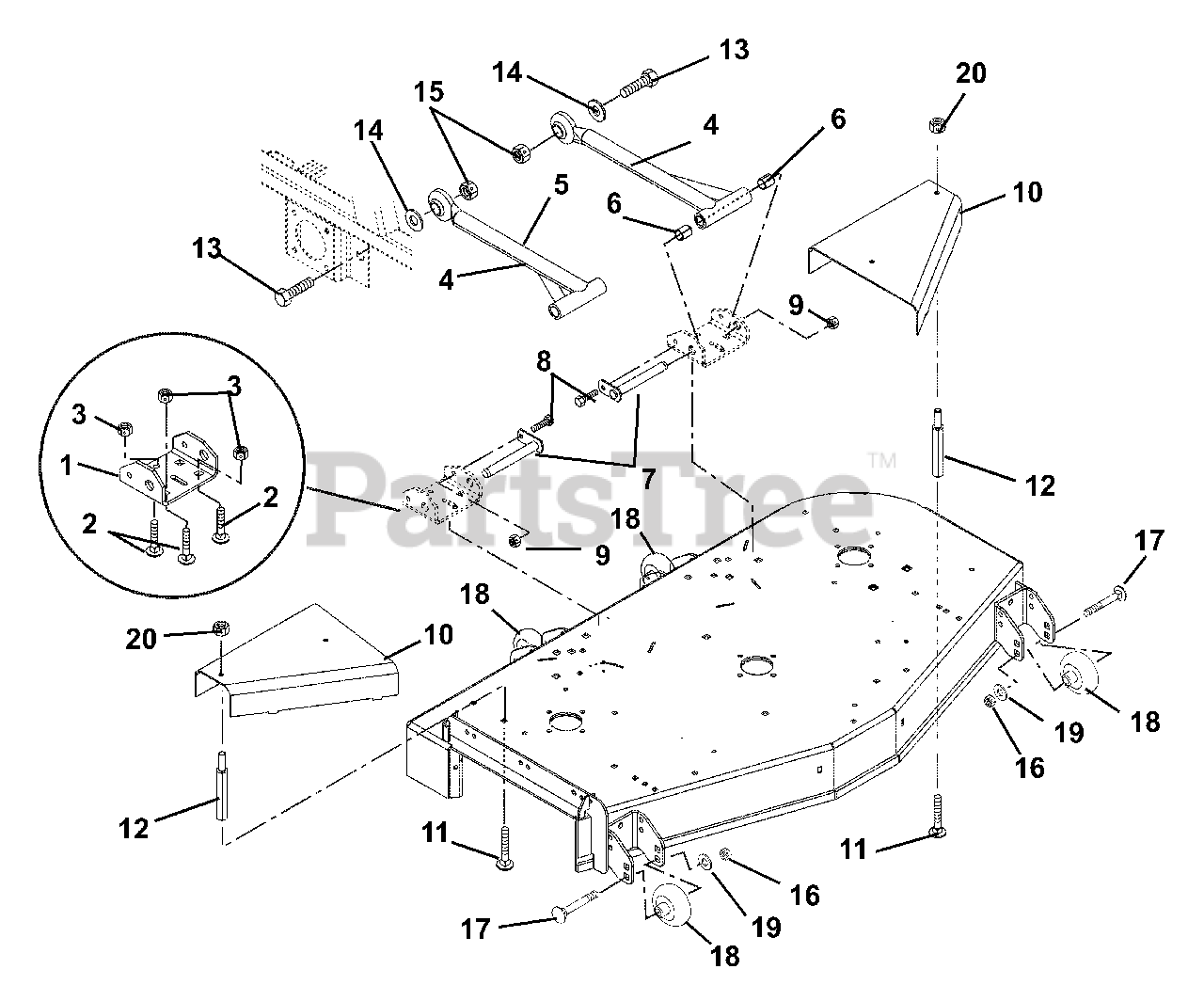

Mounting Arms, Belt Guards And Rollers Parts Diagram

  • Title

1

Gravely 00271300

BRKT, MOWER MOUNTING

Note: (Rear)

$

$

Not available

2

Gravely 06221200

@BLT-RDHDSQNK .50-13X.75 G5YZ

$6.49

$

Usually ships in 4-12 days

0

3

Gravely 06519700

NUT-LK-CTR-JAM .50-13 YWZC(ND)

$2.99

$

Usually ships in 4-12 days

0

4

Gravely 09282000

ASSY, MOWER MOUNTING

Note: (Includes Items 5 and 6)

$217.99

$

Usually ships in 4-12 days

0

5

Gravely 09282151

MOWER MTG ARM - BLACK

$145.99

$

Usually ships in 4-12 days

0

6

Gravely 05435900

BRG, .750 X .875 X 1.000

$6.99

$

In Stock, Qty 20+

0

7

Gravely 09238900

WELDMENT, MOWER MTG. PIN

$63.99

$

In Stock, Qty 10

0

8

Gravely 180121

BLT-HEX .38-16X.875 GR5 YWZC
(Superseded to 05932600)

$2.99

$

Usually ships in 4-12 days

0

9

Gravely 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 09283553

GUARD, PULLEY-44,48 (RED)

$85.99

$

Usually ships in 4-12 days

0

11

Gravely 06200002

BLT,RDHDSQNK .31-18X.75 LOCTIT
(Superseded to 06200425)

$4.99

$

In Stock, Qty 20+

0

12

Gravely 00271200

STANDOFF, 2.75 X 5/16-18

$35.99

$

In Stock, only 2 left!

0

13

Gravely 05900003

BLT-HEX .875-9X3.00 GR5 YZ

$7.49

$

Usually ships in 4-12 days

0

14

Gravely 05512600

BSHG-SLV .882X1.250X.531

$6.49

$

In Stock, Qty 12

0

15

Gravely 06539700

NUT-LK-CTR .875-9 YWZC

$6.49

$

In Stock, only 2 left!

0

16

Gravely 06540600

@NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

17

Gravely 06225900

BLT-RDHDSQNK .50-13X5.00 GR5YZ
(Superseded to 06200505)

$

$

Not available

18

Gravely 09253700

WHEEL, 3X5

$15.99

$

In Stock, Qty 20+

0

19

Gravely 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0
